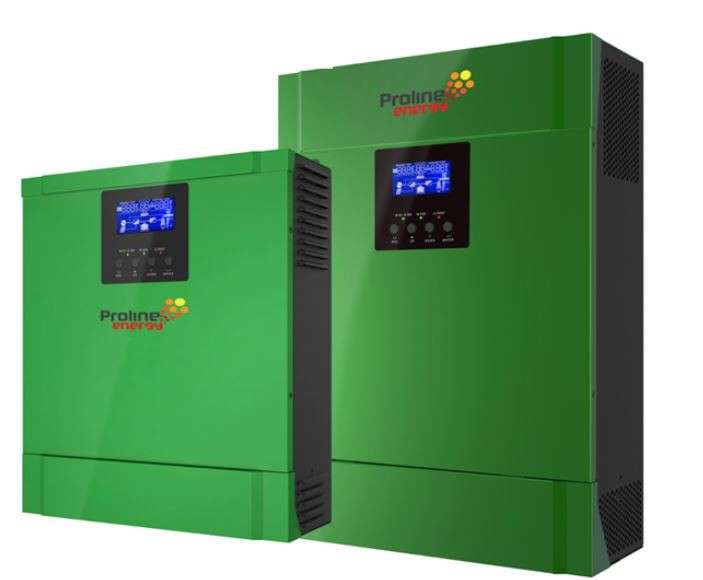

Proline Energy 5000VA/4000W Pure Sine Wave Inverter with PWM Controller - Proline

In Stock at supplier. DISPATCHED OR COLLECTION available Same Day if ordered before 12PM

Features:

• Pure Sine Wave Inverter
• Built-in PWM Solar Charge Controller
• Selectable Input Voltages for Home Appliances and
• Selectable Charging Current
• Configurable AC / Solar input priority via LCD Setting
• Parallel Operation with up to 6 Units available on 5KVA (Parallel Kit available separately)
• Overload and Short Circuit Protection
• Smart Battery Charger Design
• Cold Start Function
• Optional Remote Panel Available

Specifications:

Capacity - VA: 5000 W: 4000

Input Voltage: 230 VAC

Surge Power: 10000 VA

Acceptable Voltage Range: 170 - 280 VAC (Personal Computers), 90 - 280 VAC (Home Appliances)

Frequency: 50 Hz / 60 Hz (Auto Sensing)

Output - 50 Hz / 60 Hz (Auto Sensing): 230 VAC +- 5%

Efficiency (Peak): 93%

Transfer Time: 10-20 ms (Typical)

Waveform (Battery Mode): Pure Sine Wave

Battery Voltage: 48 VDC

Floating Charge Voltage:54 VDC

Shutdown Voltage: Configurable

Overcharge Protection: 60 VDC

Maximum PV Array Power: 3000 W

MPPT Range at Operating Voltage: 60 - 115 VDC

Maximum PV Array Open Circuit Voltage: 105 VDC

Maximum Solar Charge Current: 60 A

Maximum Charge Current: 110 A (AC + Solar)

Maximum Efficiency: 98%

Standby Power Consumption: 2W

Physical Dimension D x W x H (mm): 120 x 295 x 468

Net Weight (kg): 9.8

Operating Humidity: 0 to 90% Relative Humidity (Non-Condensing)

Operating Temperature: 0 C to 55 °C

Storage Temperature: -15 C to 60 °C

Expected Run times:
