Pro'sKit MT-7076 LCD PoE Network Cable Tester and Probe Kit
The Pro'sKit MT-7076 is a comprehensive PoE network cable tester and probe kit designed to test, trace, and diagnose a wide range of Ethernet and network cabling systems. Equipped with a clear LCD display and PoE detection capability, it is ideal for IT technicians, network installers, and maintenance professionals seeking accurate and efficient cable testing in structured cabling environments.
LCD Display
Backlit screen shows detailed wire map, pin configuration, and test results clearly
PoE Detection
Identifies PoE (Power over Ethernet) presence and voltage on network cables
Cable Types Supported
RJ45 (Ethernet), RJ11 (telephone), and coaxial cables
Wire Mapping
Detects open circuits, shorts, miswires, reversals, and split pairs
Cable Tracing
Includes probe (tone tracer) for locating cables through walls or bundles
Remote Unit
Enables testing of cables over distance (e.g., installed runs)
Tone Generator
Built-in tone signal for cable tracking with the included probe
Auto-off Function
Conserves battery life when not in use
Specifications
Display: LCD
Signal: Analogue/Digital Mode
Frequency: 455KHz
Tracking a Cable in the Working Network: Yes
Tracking BNC Cable: No (But Can Use Alligator Clip)
Scan Range: 600m
Display: R&M; 1-8/G (LCD)
Max. Range: 300m
Cable Type: CAT5, CAT5e, CAT6
Range: 2.5m~200m
Wire Continuity : No
Telephone Line POL +/-: No
Flashlight: Yes
Non-Contact Voltage Detection (NCV): Yes
Input Protection: DC 60V
Transmitter Battery: 3.7V 1400mAh Li-ion
Receiver Battery: 3.7V 1400mAh Li-ion
Charging Type: USB Type-C
Duration of Tracing: >10h

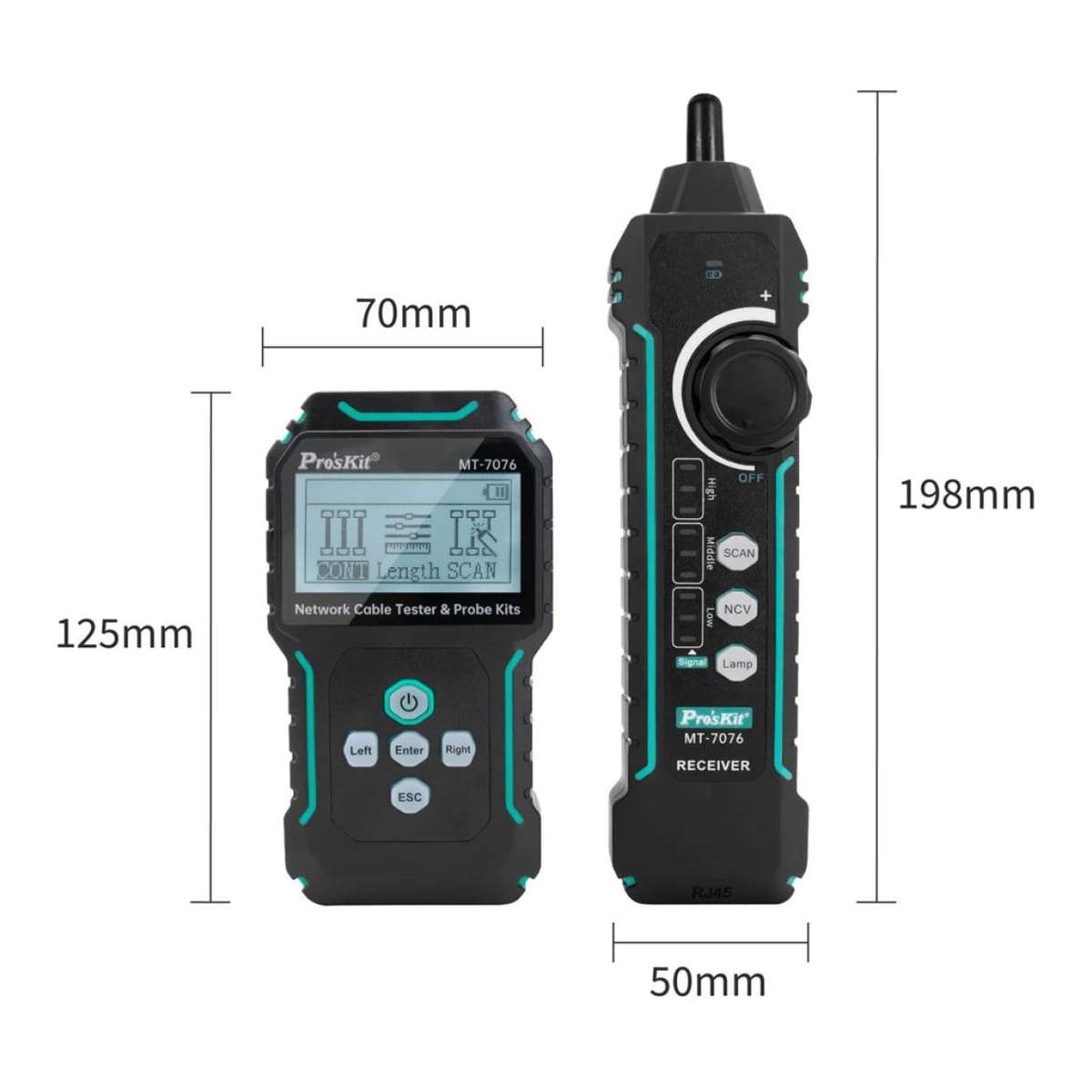

Transmitter Dimensions: 125 × 70 × 32mm
Receiver Dimensions: 198 × 50 × 28mm
Identification: CE
RoHS: Yes
Storage Bag: Yes
