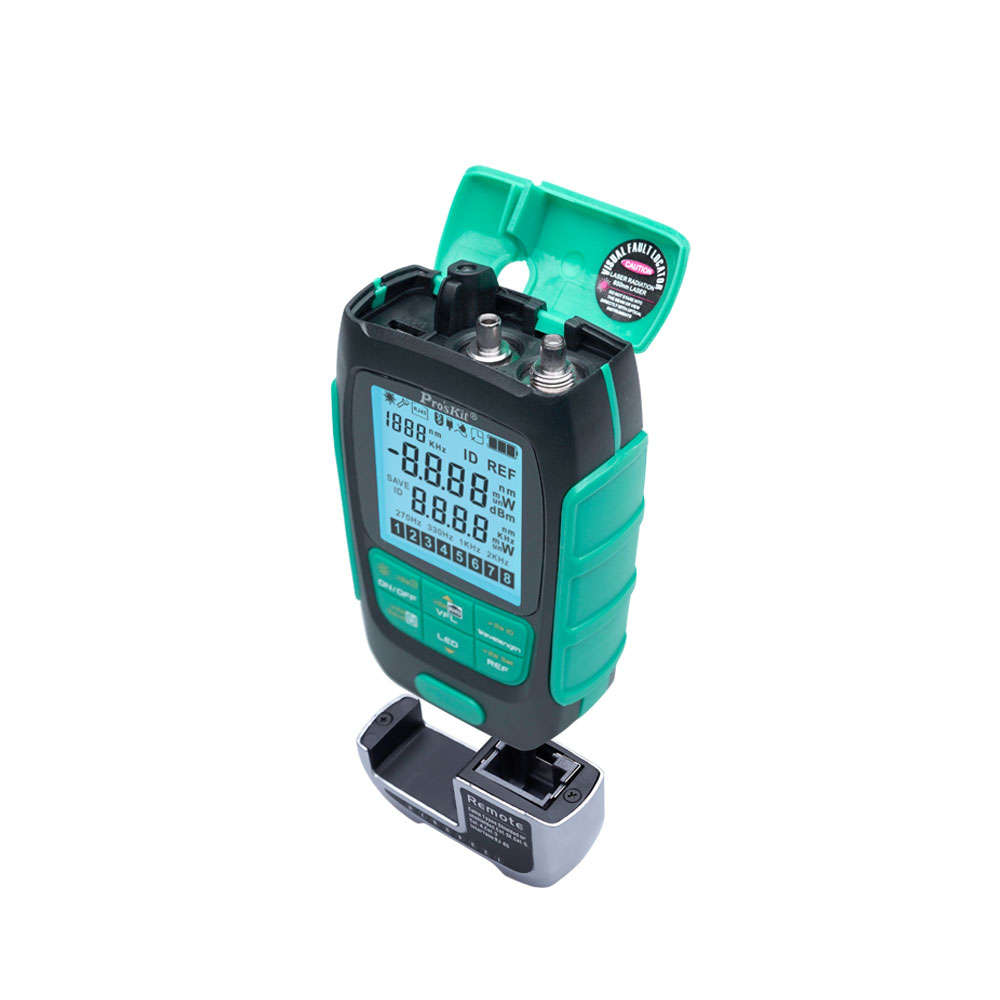

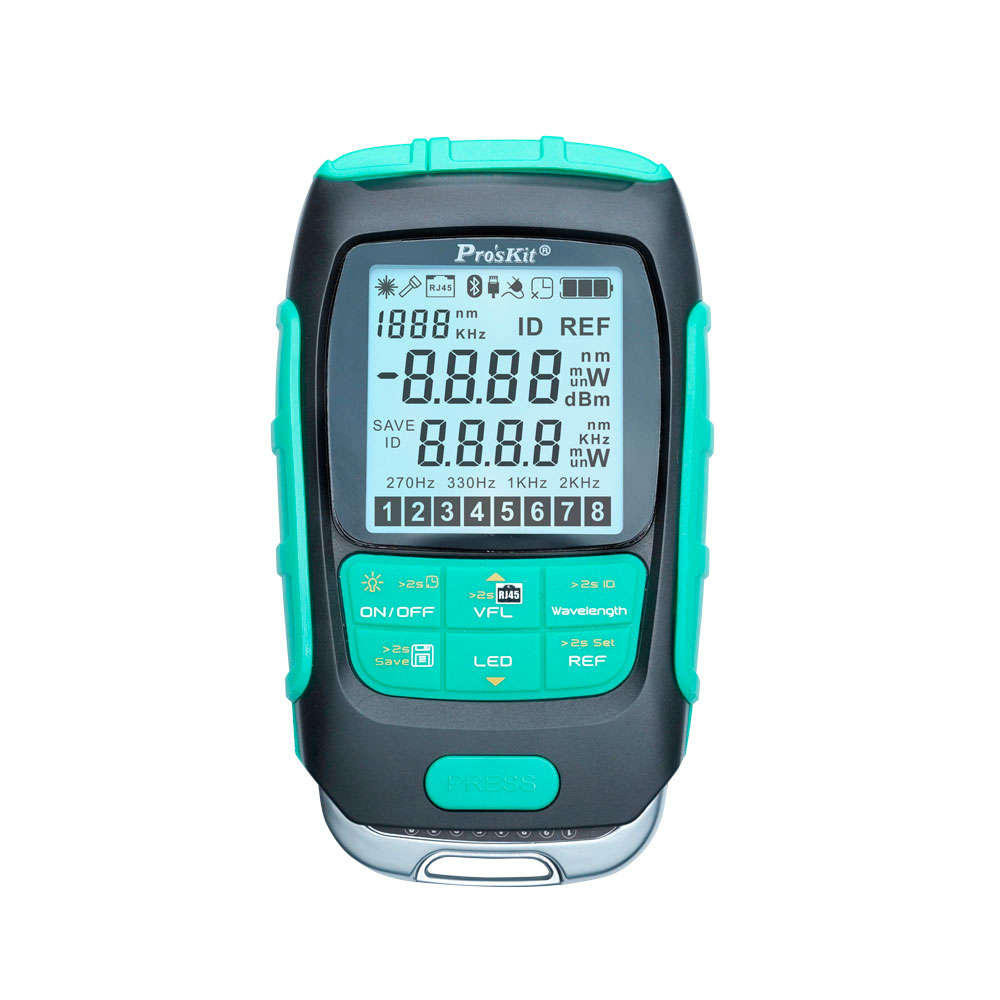

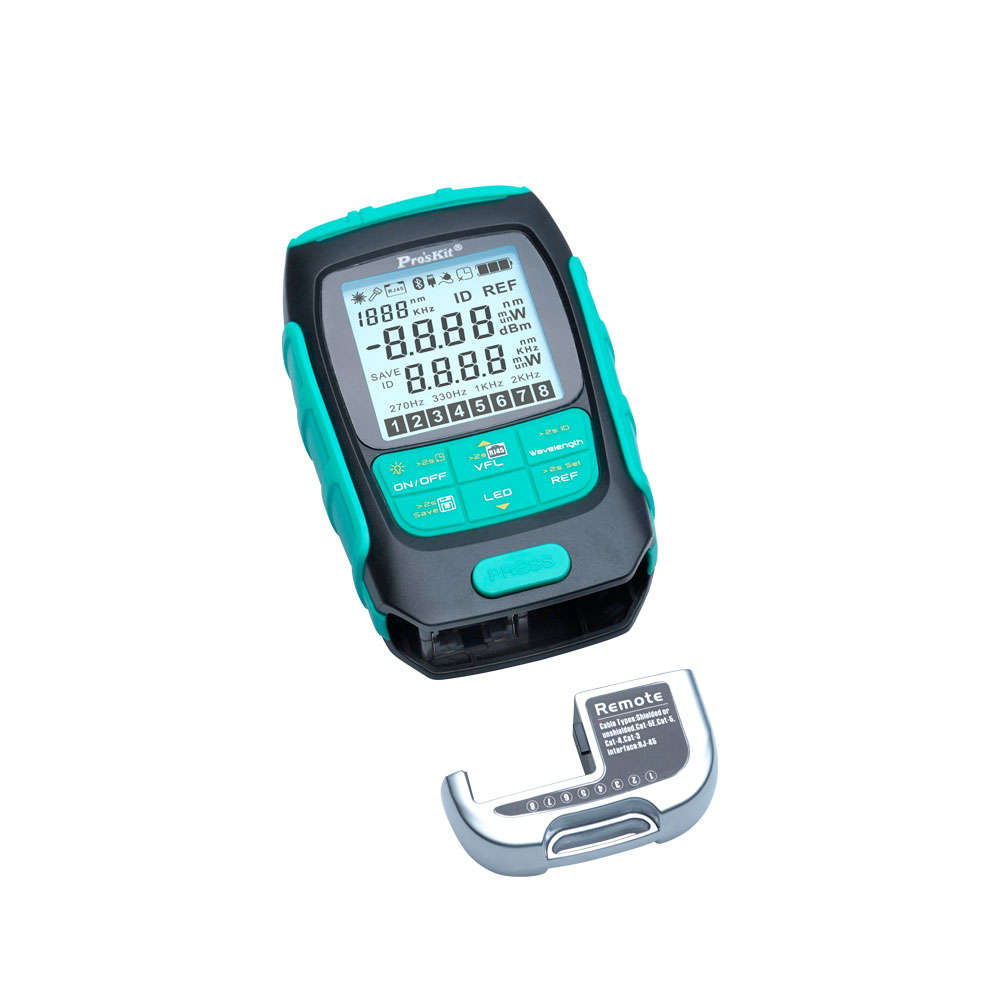

ProsKit MT-7616 4-in-1 Fibre Optical Power Multimeter, including Power Meter, LAN Cable Tester, Visual Fault Locator and LED Flashlight
A versatile all-in-one testing solution for fibre and network professionals. The ProsKit MT-7616 combines a fibre optical power meter a LAN cable tester a visual fault locator and an LED flashlight into a single compact tool. Designed for fast diagnostics and field efficiency it enables accurate fibre testing cable verification and fault identification making it ideal for installers and technicians working across fibre and copper network environments.
FEATURES
4-in-1 Design with 30mW Output - Combines multiple fibre and network test functions in one tool
Self-Calibration - Ensures accurate measurements without manual adjustment
Rechargeable Li-ion Battery - A 450mAh battery provides reliable portable power for field work
500× Data Storage Groups - Stores test results for easy review and reporting
Integrated Cable Tester - Verifies LAN cable continuity and performance
SPECIFICATIONS
Detector Type: InGaAs
Wavelength Response Range: 700~1700nm
OPM Connector: 2.5mm Universal Connector
Measurement Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement Range: -70~+10dB
Resolution: 0.01dB
Accuracy (1550nm and 1310nm): 0.2dB
Accuracy (1490nm, 1625nm and 1650nm): 0.3dB
Accuracy (850nm, 980nm and 1300nm): 0.4dB
Measurement Units: dB, dBm, mW, uW, nW
Modulation Detection: 270Hz, 1kHz, 2kHz
Data Storage: 500× Groups
Wavelength Memory: Yes
WAVE ID: Yes (only for ProsKit light source products)
User Self-Calibration: Yes
REF Function: Yes
Back Light: Yes
Output Power: 30mW
Fibre Testing Distance: 14~16km @SM
VFL Connector: 2.5mm Universal Connector
VFL Wavelength: 650 ±20nm
Operation Mode: CW / 2Hz Glint
Network Application: UTP Network Cable
Interface: RJ45 (UTP 8P8C)
Network Testing Type: Network Sequence
Network Testing Distance: 600m
Illumination: LED
Auto Power-Off: Yes (no operation for 10 minutes)
Low Battery Indicator: Yes
Charging Socket: Micro USB
Working Time: >50hours (OPM only)
Power Source: 3.7V 450mAh Li-ion
Operating Temperature: -10~50°C
Operating Humidity: <90% RH
Dimensions (L × W × H): 98 × 59 × 27mm
Weight: 100g
