Description:

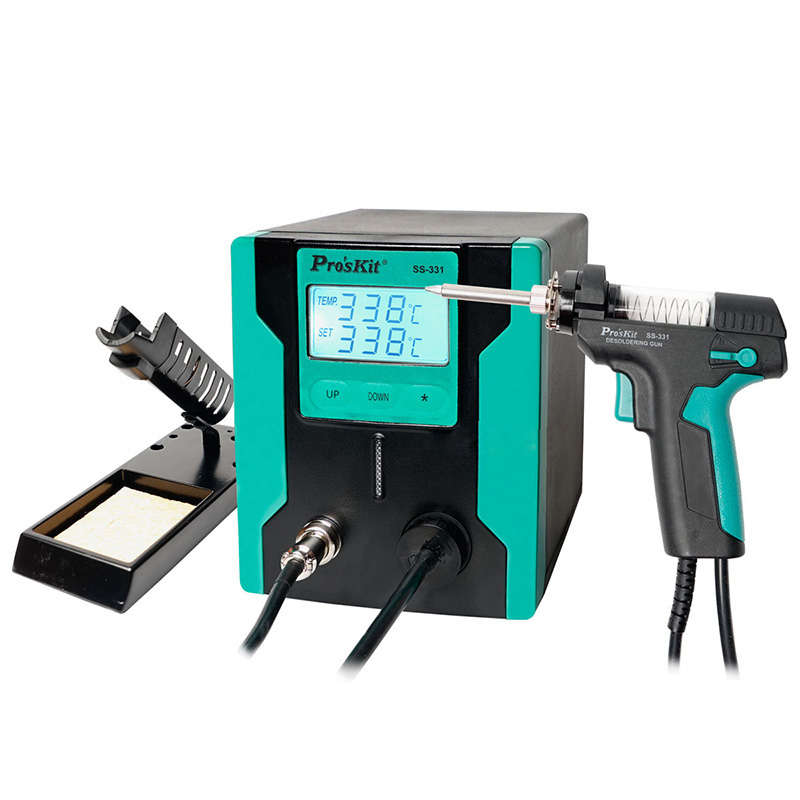

SS-331H LCD desoldering station is efficient desoldering tool with a built-in vacuum for through-hole boards and components. It is a thermostatically controlled desoldering station that provides low cost and high performance. Ergonomically friendly structure allows one hand operation, only takes a few seconds per pin, more safe, efficient and comfortable.
Microprocessor controlled
Microprocessor Controlled, provides accurate temperature control from 160 to 480°C.
Ceramic heater
Provides fast heat up, fast recovery and high insulation resistance.
High power desoldering tool with vacuum
Designed with a quality heating element, it provides higher performance and longer lifetime than traditional type.
Built-in high power 600mmHg air pump, particularly for lead-free desoldering of multilayer boards.
Efficient operation, quick and easy
Ergonomically friendly structure allows one hand operation, only takes a few seconds per pin, more safe, efficient and comfortable.
Large LCD display
Quick and easy to set the desired temperature and check the actual temperature.
Fahrenheit or Celsius unit selection.
Specification:
Model No: SS-331H
Voltage: 220V-240V 50Hz
Soldering Power: 90W
Power Consumption: 140W
Temperature: 160°C ~ 480°C
Vacuum Pressure: >600mm Hg
Heating Element: Ceramic Heater
Package included:
1 x Pro'sKit SS-331H 220V LCD Desoldering Station
1 x Electric Desoldering Heater
1 x Stand
3 x Spare tip (Diameter 1.2 1.0 1.5mm)
3 x Cleaning tool (Diameter 0.7 0.9 1.2mm)
4 x Filter sponge (Diameter 20.8 x 1 16.8 x 3)
