PROXXON THERMOCUT STYRENE CUTTER 230E INCLUDING CIRCULAR CUTTER ATTACHMENT., ARTS AND CRAFTS, MIN...

Ideal for architectural models, designers, decorators, artists, teaching too, prototypes as well as classical railroad, plane and boat model building.

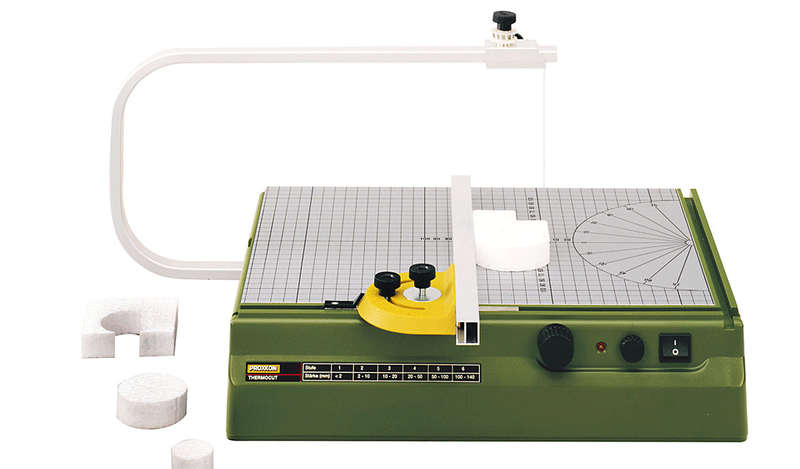

The large base with 390 x 280mm table with surface of aluminium cobond compound ensures smooth and easy movement of the workpiece. The printed grid and protractor ease division and cutting. The solid aluminium overarm has a 350mm throat and offers 140mm capacity in height. The holder and wire coil (30m, 0.2mm diameter is included) may be shifted along the overarm to enable mitre cutting. A LED indicates operation and prevents burnt fingers (the cutting wire heats to maximum in less than 1 second).

Note:
The unit's double wound transformer and insulation to class 2 ensure the cutter is absolutely safe. The cutting wire operates at 10V, 1A.

Other technical data:
230V, 50/60Hz. Transformer secondary max. 10V, 1A. Cutting wire temperature with 0.2mm diameter is variable between approx. 100 and 200 °C. Weight approx. 3kg. Insulated to class 2 requirements.

NO 27 080

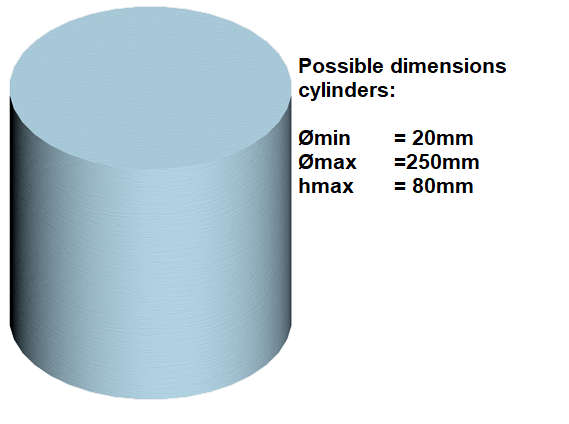

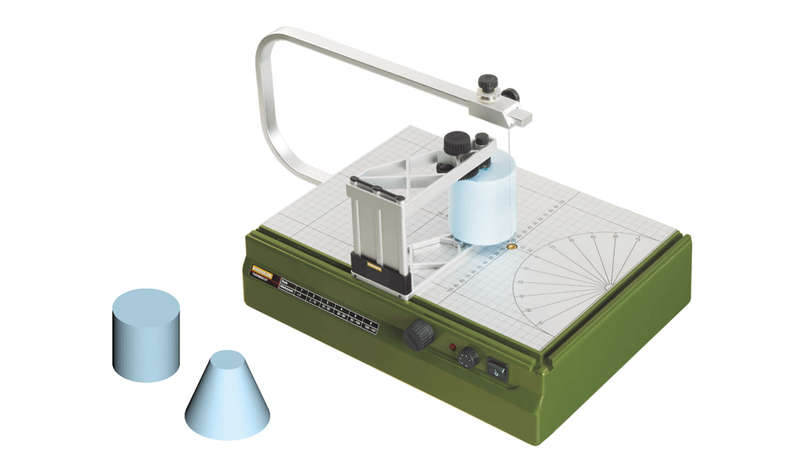

For super-precise circular cuts! Enables the precise production of cylinders and cut-off cones with high repeat accuracy.

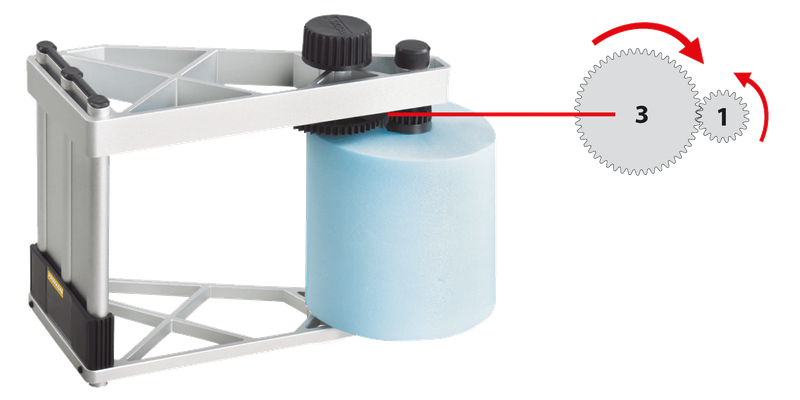

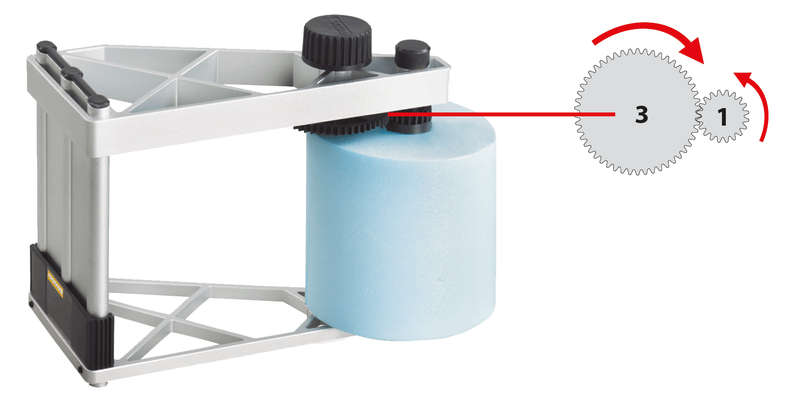

Solid construction made of aluminium (anodised). Stepless, tool-free height adjustment. Generous feed gear ratio (1:3) for comfortable cutting without having to reach round the rotary knob. Simple preselection of the desired workpiece diameter by moving the device in the table groove. Ergonomic handle for a secure grip during operation.

NO 27 076
