Prusament PC Blend Carbon Fiber Black 800g

PCCF (Prusament PC Blend Carbon Fiber) has similar printing qualities to unmodified PC Blend but the addition of the carbon fibers makes it even stronger, more resilient, more temperature resistant, and dimensionally stable.
Unlike pure PC Blend, PCCF practically doesn't warp and has a nice matte surface. Compared to other materials, PCCF has good resistance to UV light and common chemicals. The PCCF is slightly lighter than unmodified PC Blend, with approx. 5% difference.
Carbon fibers inside the filament are made by recycling waste from the manufacturing process or from carbon composites after the end of their lifespan.

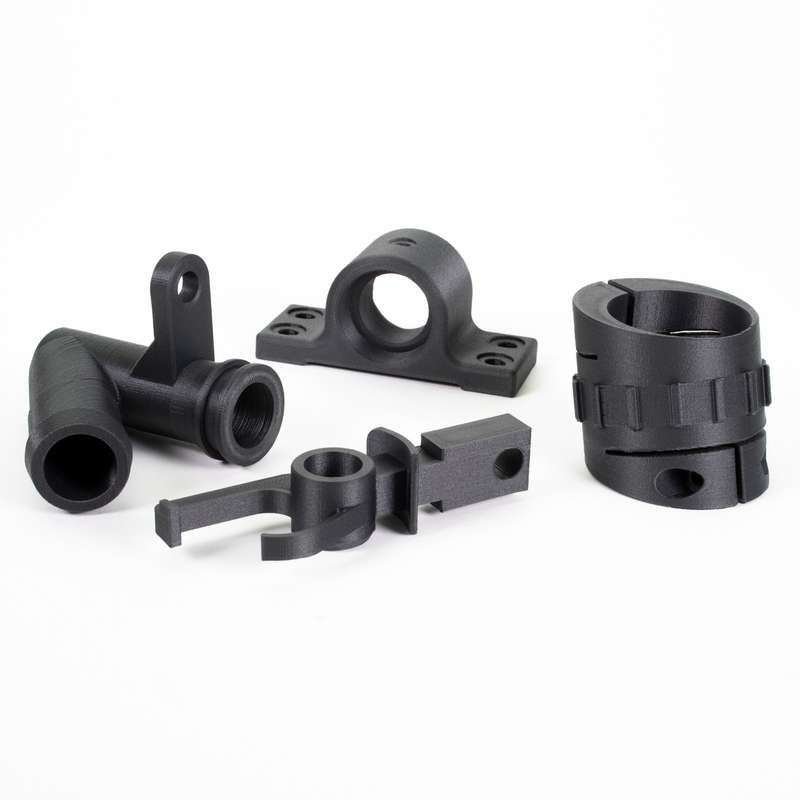

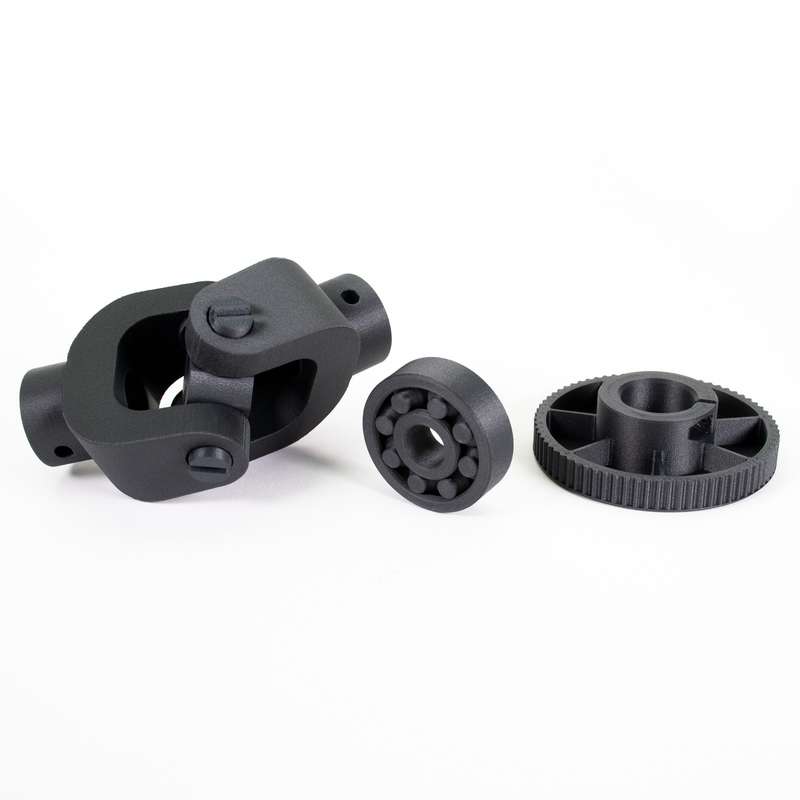

PCCF is ideal for printing mechanical parts and heat-stressed components, for example, various gears and machine parts requiring heat resistance over 100°C. Probably the greatest advantage of PCCF, compared to PC Blend, is the possibility of printing large models without the necessity of using a heated enclosure.

Print preparation

It is necessary to use a hardened steel nozzle. Carbon fibers are a highly abrasive material and may damage a brass nozzle.
Powder-coated or satin TXT sheet provides good adhesion. Clean it with IPA (available in drugstores, for example) which works great not only with PCCF but with other materials too.

Pour a small amount of IPA on a paper towel and use it for cleaning the surface. To achieve the best results, clean the surface while it's cold. Keep in mind that higher temperatures will evaporate the alcohol before cleaning the surface. Also, don't forget that the heatbed preheated for printing with PCCF has a high temperature (110 °C) and may burn you if you touch it! Another possibility is cleaning the surface with warm water and a few drops of dish cleaner on a paper towel. You can also use denatured alcohol.

We don't recommend printing with PCCF on a smooth PEI sheet. This material adheres greatly to the PEI surface and may cause damage to it. This type of damage is not covered by the warranty. If you need to print on a smooth surface, spread a thin layer of paper glue stick on it.

Also, if you often print with PCCF on the satin sheet, we recommend using a glue stick to prevent surface wear-out.

You can find more in-depth printing tips in our article at PrusaPrinters.org

Printing Setup

Basic Attributes

• Great mechanical properties (tenacity and toughness)
• Requires hardened stainless steel nozzle
• Excellent temperature resistance (114 °C)
• Breakable filament (unlike Prusament PC Blend)
• Possibility of annealing (improving resistance up to 130 °C)
• High wear resistance
• Dimensional stability easy printing, possible to print large models\
• Good UV stability and resistance to common chemicals
• Lighter than unmodified Prusament PC Blend
• Enclosure not needed
• Highly attractive matt black surface
• Uses recycled carbon fibers from the manufacturing process
• No need for drying prior to printing

Notes

Prusament PC Blend Carbon Fiber Black is made in-house by Prusa Research.

1.75 mm filament is manufactured with a precision of ±0.04 mm.
