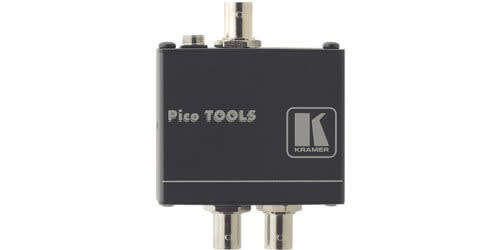

PT-102VN by Kramer distribution amplifier for composite video or SDI signals.

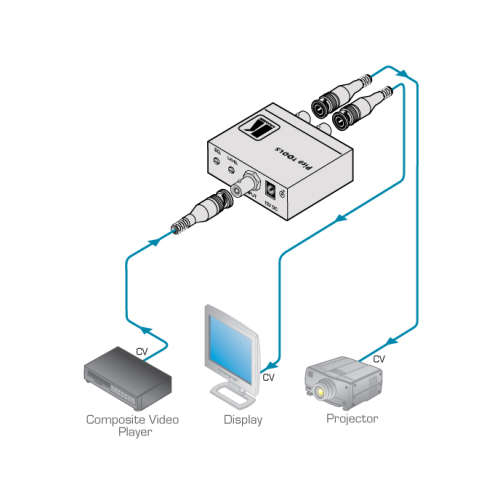

The PT-102VN by Kramer is a distribution amplifier for composite video or SDI signals. It will take one input, provide correct buffering and isolation and distribute the signal to two identical outputs. This amplifier is ideal in video duplication studios where you have display systems that require the same images displayed on several monitors like in CCTV and home theater use. The PT-102VN offers gain and equalization control to compensate for cable losses. A high video bandwidth of 430 MHz ensures a quick response time for most of the applications. You also have the option to connecting this device to a high-resolution video switcher to increase the number of inputs.

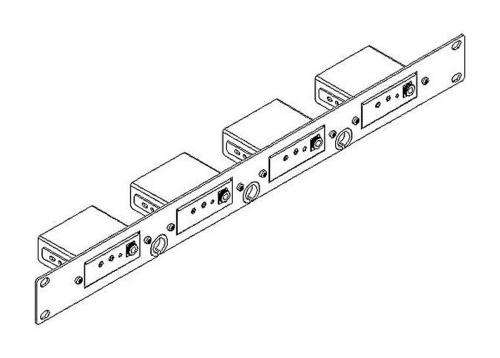

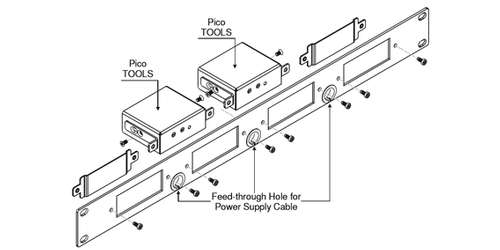

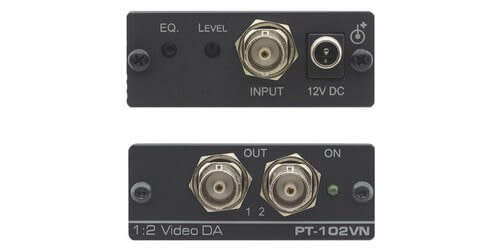

The PT-102VN 1x2 has 1 composite or SDI video input, and 2 composite or SDI video outputs, all on BNC connectors. It supports AC coupling and with the help of the trimmers provided on the front panel, the gain of the amplifier can be controlled .This amplifier can be fitted into an optional RK-13 rack adapter for mounting up to four units side-by-side in a 1 RU space. The PT-120VN comes with a 7 year warranty from Kramer.

Specifications

1x2 Composite Distribution Amplifier

Inputs: 1 composite or SDI video on BNC connector

Outputs: 2 composite or SDI video on BNC connectors

Supports AC Coupling

Provides Level and EQ Control

Max. Video Output: 2Vpp

Video Bandwidth: 430MHz

Diff. Gain: 0.05%

Diff. Phase: 0.05Deg

S/N Ratio: 76.1dB

Control: Gain: 1.2 to +6dB / EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel

Power Consumption: 12V DC

Included Accessories: Power Supply

Dimensions: 2.45" x 2.04" x 0.96" (W, D, H)

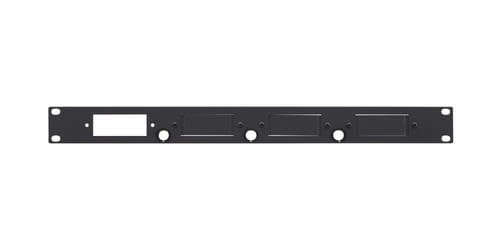

Free RK -13  mounting Rack for 4 distribution amplifiers worth R1000.00 if purchaser buys both amplifiers.
