Specification:

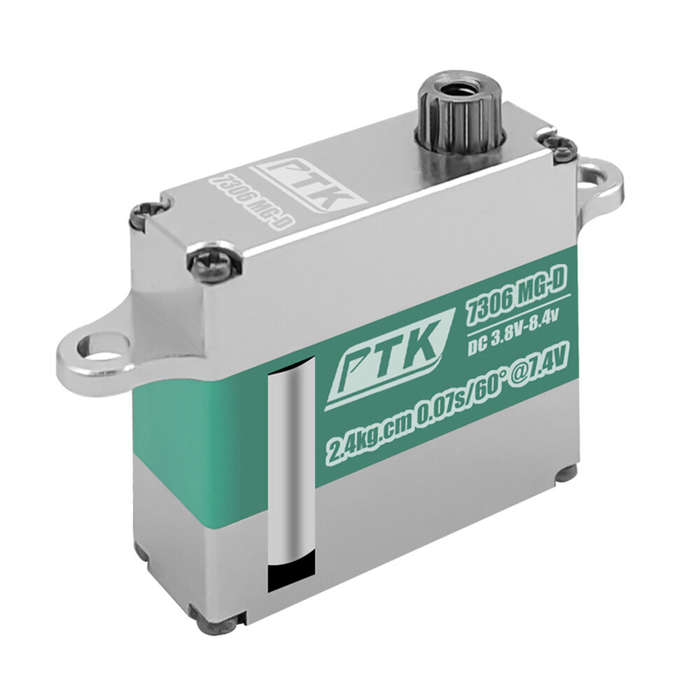

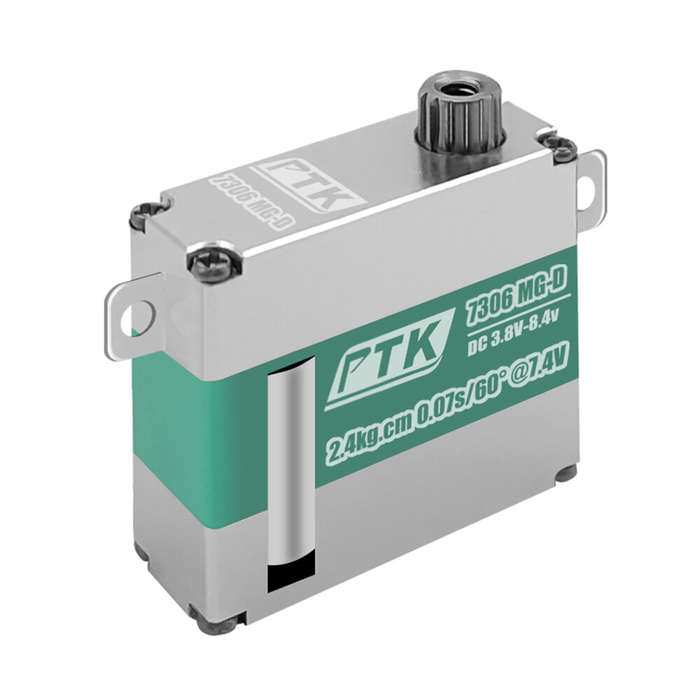

Brand: PTK
Model: 7306 MG-D
Type: 7306 7306H 7306N
Gear Material: Stainless Steel
Case Material: CNC Metal
Operating Temperature: -15°C~+70°C
Operating Travel: 180° ± 10°
Refresh Rate: 333Hz
Net Weight: 7g
Pulse Width: 500 to 2500 Sec
Motor Type: Coreless Motor
Dead Band: 2p
Neutral Position: 1520 Sec
Size: 20x7x19.05mm
Bearing: Double Ball Bearing
Operating Voltage: 3.8V~8.4V
Wire: JR 185mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.145 sec/60° @ 3.8V
0.105 sec/60° @ 6.0V
0.075 sec/60° @ 7.4V
0.061 sec/60° @ 8.4V
Stall Torque:
1.2 kg-cm @ 3.8V
1.5 kg-cm @ 6.0V
1.8 kg-cm @ 7.4V
2.5 kg-cm @ 8.4V

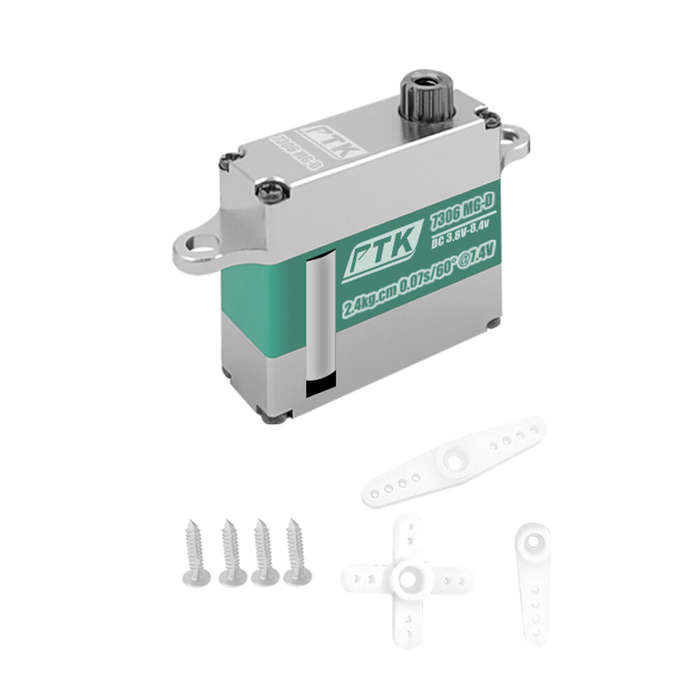

Package included:
1 x RC Servo
