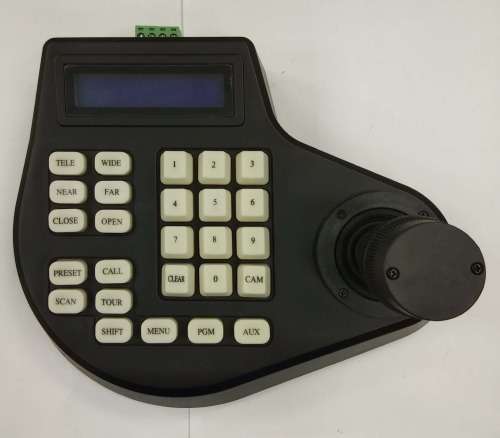

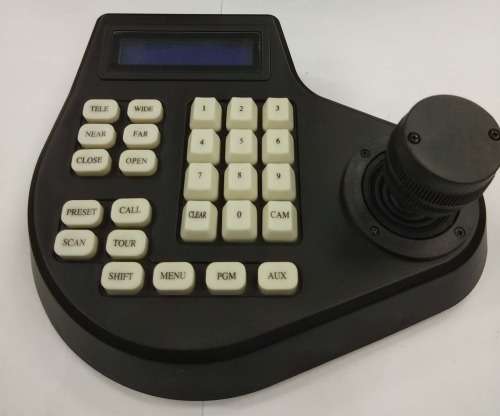

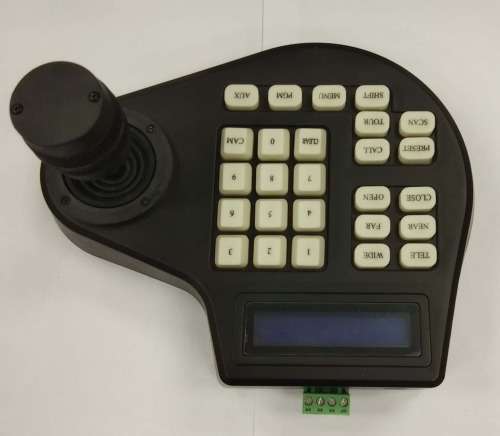

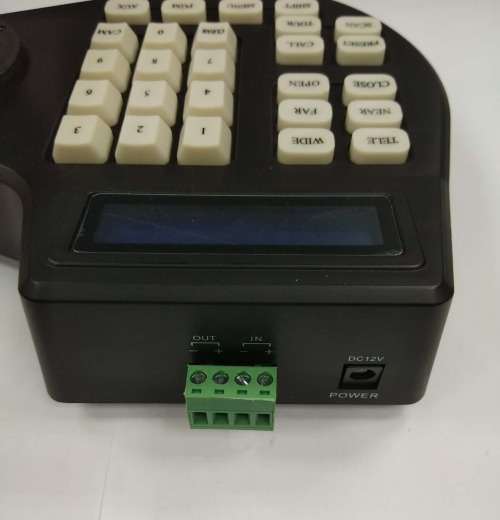

Ptz Cctv JoyStick Keyboard Controller With Lcd Display

                                                        *** Description ***

---> brief introduction :

The keyboard controller can control high speed dome cameras , slow some camera , zoom camera , decoders , etc. The electric outlet between the controlling keyboard and the receiving terminal is EIA/RS - 485 , which enables the keyboard to control as many as 128 dome cameras or other terminals within a maximal communication range of 1.5 Km.

---> technical data :

---> Baud rate : 1200bps , 2400bps , 4800bps , 9600bps , 19200pbs , 38400pbs

---> Protocol : Pelco - D , Pelco-P , SAMSUNG , AD , PANASONIC

---> Communication : RS - 485

---> power input : DC 12V / 500mA

---> Communication distance : max 1500m

---> Can control max 128 speed domes

---> Password setup function

---> Ambient Temperature : 0 C ~ 60 C

---> Relative Humidity : 90%RH

--->DImension : 205mm x 168mm x 48mm
