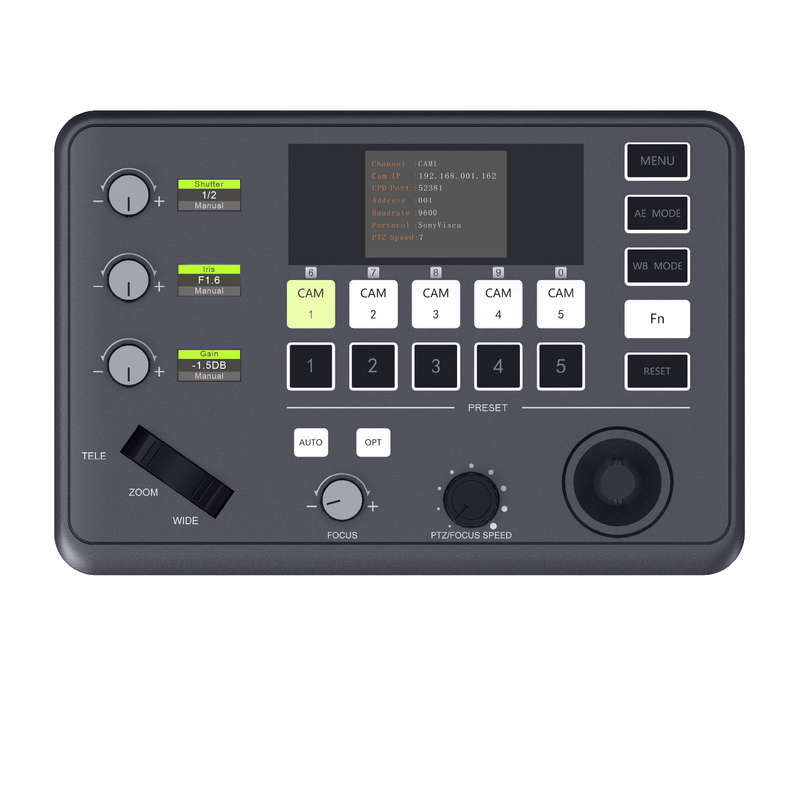

Puas PUS-MKB10 PTZ Camera Controller

Real-time Value Presentation is More Intuitive
Support Auto exposure and white balance multi-mode visual switching,
real-time value presentation is more intuitive.
AE MODE Key: This key is used to change the automatic exposure mode of the
camera.Each time is pressed, the camera changes to different exposure mode.
WB MODE Key: This Key is used to changed the White Balance of the camera.
Each Time is pressed, the camera will be changed to different WB Mode.

Distributed Design of The Pan/Tilt Rotation
Control and Zoom Bridge Keys
Using the distributed design of the Pan/Tilt Rotation Control and zoom
bridge keys, the controllability is more stronger and more stable.
Zoom Bridge Key: It is used to control the camera to Zoom In/Out.
2-Aixs Joystick: The joystick supports control camera to Up/Down,
Left and Right movement.

Mini Pro PTZ Controller
Camera Control or Operation
Supports up to Control 5 Cameras
Communication Protocol VISCA, PELCO P/D, UDP
4 Units Color LED Display Screen
Number of Camera Channel 5
Infinitely variable knobs 4
Joystick 2-Axis
Zoom Mode Tele-Wide Bridge Keys
Camera Menu One-keys for call
Buttons 17 Silicon Button
Presets Short keys 5 Presets per Each channel
Focus Mode Auto/ Manual/ OPT
Pan/Tilt Rotation Speed 7-Level Adjustment
Zoom In/Out Speed 7-Level Adjustment
AE Mode The mode can be switched arbitrarily, and the value can be adjusted
WB Mode The mode can be switched arbitrarily, and the value can be adjusted
Control Signal Format
Baud Rate 2400bps,4800bps,9600bps,19200bps, 38400bps
Data Bits 8 Bit
Parity bit NONE
Stop Bit 1 Bit
Internet Protocol UDP / VISCA OVER IP
Power Supply and Consumption
Password Privacy Protection
Kingston's Lock Holes
Dimensions ( Lx W x H ) 244 x 164 x 48mm
G.Weigth 1.1Kg
Works Temperature
Storage Temperature
Work Environment Indoor
Accessories
Phoenix Contact 4 pin 3.81mm Terminal / Power Adapter / User Manual
