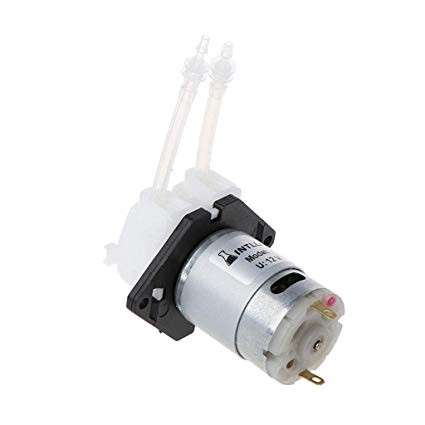

2V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose

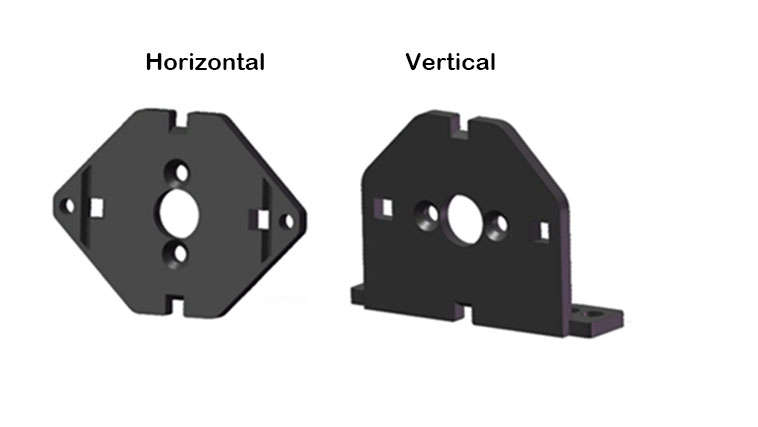

Horizontal Mount plate included
New coming: 12V-PPump-Flange

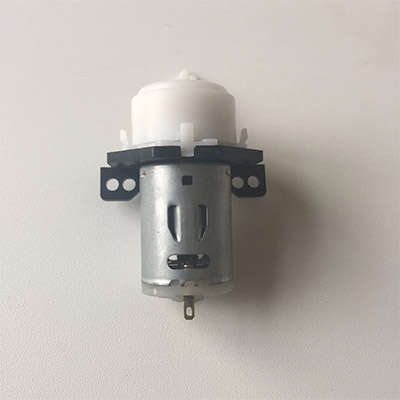

Vertical Mount plate included.
Volts: DC 12V.
Rated current: 80mA
Working condition: 0-40
Relative humidity <80%
Flow rate: : 0-100 ml/min
Rotate speed: 1-500 rpm
Driver size(x H): Dia.27.6 x Height 37.9 (mm)
Powerhead size(x H): Dia. 31.7 x Height 20.1(mm)
Silica gel tube(IDxOD): outer diameter 4mm,inside diameter 2mm
Flow direction: you can control the flow direction by the positive and negative connect
Pump head designed for easy disassembly type for easy cleaning and maintenance. - See more at: http://www.robotdigg.com/product/537/12V-DC-Peristaltic-Pump#sthash.SER9zPEr.dpuf
12V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose
Horizontal Mount plate included - See more at: http://www.robotdigg.com/product/537/12V-DC-Peristaltic-Pump#sthash.SER9zPEr.dpuf
12V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose
Horizontal Mount plate included
Peristaltic Pump
Volts: DC 12V.
Rated current: 80mA
Working condition: 0-40
Relative humidity <80%
Flow rate: : 0-100 ml/min
Rotate speed: 1-500 rpm
Driver size(x H): Dia.27.6 x Height 37.9 (mm)
Powerhead size(x H): Dia. 31.7 x Height 20.1(mm)
Silica gel tube(IDxOD): outer diameter 4mm,inside diameter 2mm
Flow direction: you can control the flow direction by the positive and negative connection.
Pump head designed for easy disassembly type for easy cleaning and maintenance.
12V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose
Horizontal Mount plate included - See more at: http://www.robotdigg.com/product/537/12V-DC-Peristaltic-Pump#sthash.SER9zPEr.dpuf
12V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose
Horizontal Mount plate included - See more at: http://www.robotdigg.com/product/537/12V-DC-Peristaltic-Pump#sthash.SER9zPEr.dpuf
12V Brush DC Motor Peristaltic Pump
285 Brush DC Motor
2mm*4mm Silicone Tubing or Hose
Horizontal Mount plate included - See more at: http://www.robotdigg.com/product/537/12V-DC-Peristaltic-Pump#sthash.SER9zPEr.dpuf
