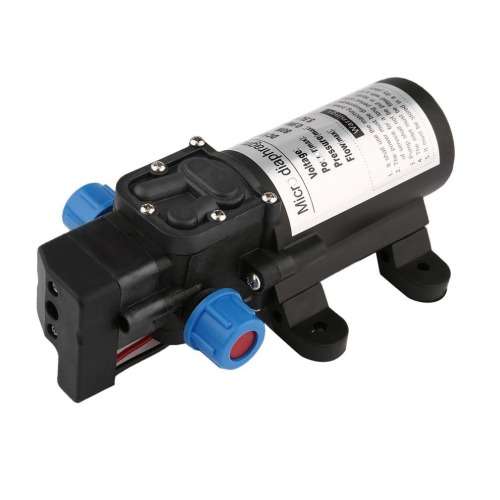

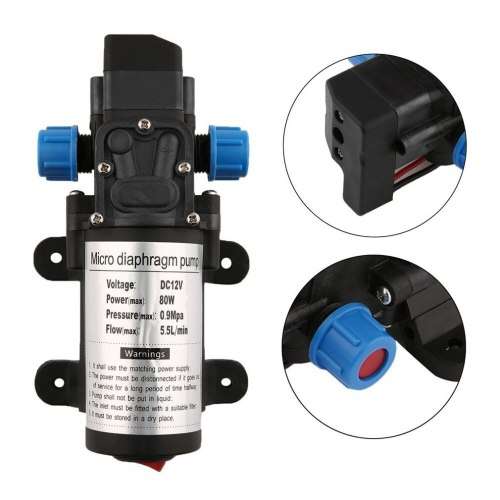

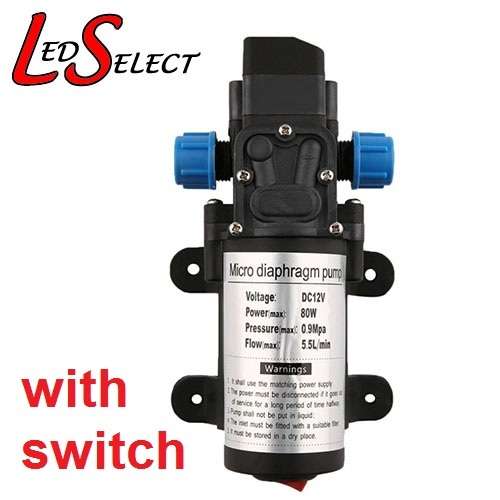

Pump Diaphragm 12V 5.5 L/min Auto on off:
Category: 2900312645 / 2904312645 - Pump Diaphragm
Specifications:
Inlet/Outlet: 17mm Outer Diameter x 7mm Inner Diameter
Voltage: 12V DC
Max Working Current: 2 Amp
Max Flow Rate: 330L/H
Max Suction: 1.5m
Max Lift: 6 mtrs
Max Circulating Water Temperature: 50°C
Working Pressure: 5.5 bar (Max - 9 bar)

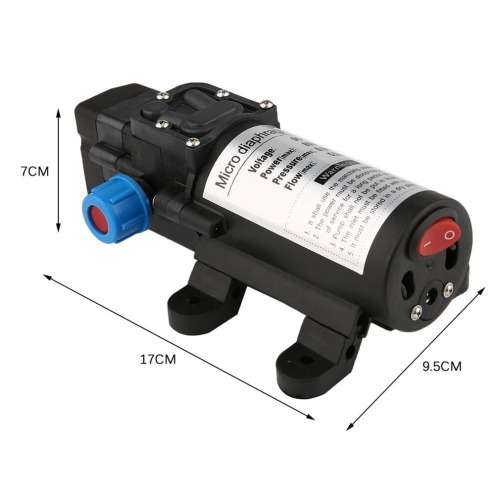

Size: 170 x 95 x 60mm (Approx)

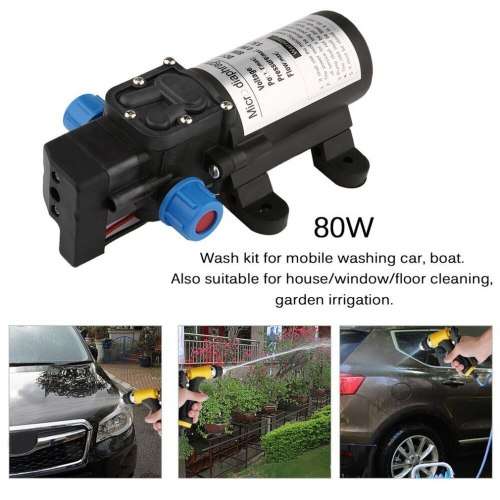

Used in Household appliances, Drinking water equipment, Tea sets, Coffee machine, Coke, Fruit juice machine, Milk machine, Dishwashers, Disinfection machine, Aquarium equipment, Bonsai, Electronic equipment, Medical apparatus and Instruments, Spraying equipment, Spray device, Electric sprayer, Water treatment equipment, Purification equipment, Filter, Cooling equipment, Cleaning equipment, Ships, Yachts, Water desalination, Vehicles, Bath, Toilet, health, Environmental protection, etc.
* If water is not clean, be sure to buy a filter.
* Search: "Pump Filter" in our store
Notice:
1. This model is not allowed for water as hot as 60 CELSIUS DEGREE or above, or sewage water with sand or other impurities. It will cause great damage to the pump.
2. This pump is not submersible. Do not immerse it into water or spray water onto it.
4. It has to use with filter system above 80 mesh, such as filter net. Too much particles will be harmful to the pump.
5. Only for household usage, not for commercial purposes. And, avoid long period working, over-heat will do harm to motor.
8. Recommended specification of the power line is copper wire, no slimmer than 0.75mm ⊃2; and 2.5m long. If you want to lengthen the power line, you will have to use larger diameter wire. Otherwise, it will overload the power line.
