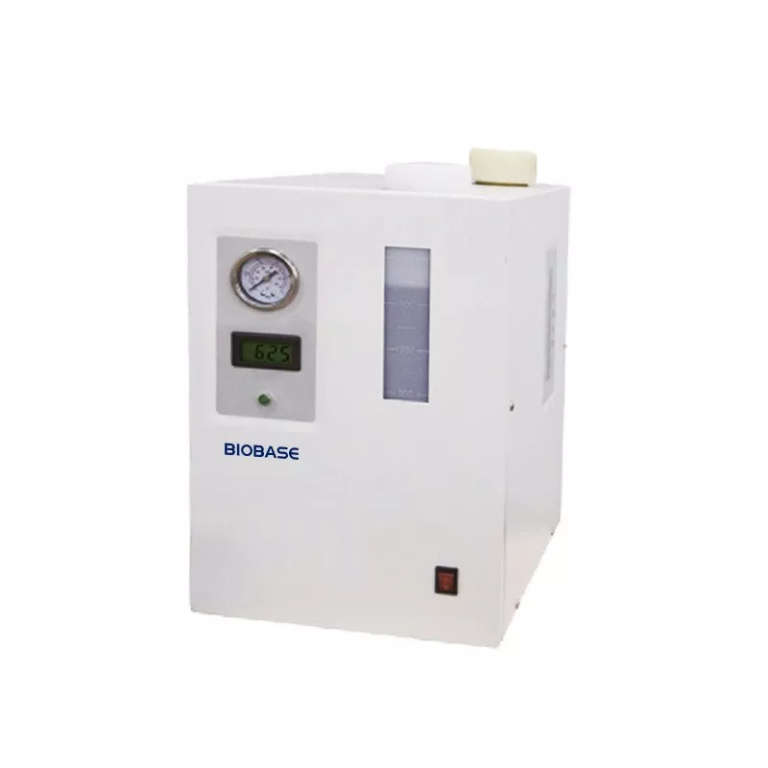

Pure Water Hydrogen Generator
Lead Time: 4-6 Weeks
Model | HGC-200 | HGC-300 | HGC-300T | HGC-300S | HGC-600 | HGC-600T | HGC-600S |
Type | Laboratory type | Laboratory type | Breathing Type (Iron shell) | Breathing Type (plastic shell) | Laboratory type | Breathing Type (Iron shell) | Breathing Type (plastic shell) |
Output Flow(ml/min) | 0~200ml/min | 0~300ml/min | 0~230ml/min | 0~200ml/min | 0~600ml/min | 0~500ml/min | 0~400ml/min |
Output Pressure | 0.4MPa/0.02~0.7MPa (under stable pressure) | 0.4MPa/0.02~0.7MPa (under stable pressure) | 0.2MPa | 0.2MPa | 0.4MPa/0.02~0.7MPa (under stable pressure) | 0.2MPa | 0.2MPa |
Hydrogen Purity | >99.999% | >99.999% | 99.99% | 99.9% | >99.999% | 99.99% | 99.9% |
Silicon tube | Yes | Yes | No | No | Yes | No | No |
Pressure stability | <0.001Mpa | ||||||
Consumption | 120W | 150W | 300W | ||||
PowerSupply | AC110V/ 220V±10%, 50/60Hz | ||||||
External Size(W*D*H)mm | 350*220*380mm | 350*220*380mm | 400*270*430mm | 400*270*430mm | 350*220*380 | 400*270*430mm | 400*270*430mm |
Package Size(W*D*H)mm | 500*370*540mm | 500*370*540mm | 500*370*550mm | 560*402*600mm | 500*370*540 | 500*370*550mm | 560*402*600mm |
NetWeight(kg) | 11 | 11 | 9 | 8 | 13 | 9.5 | 9 |
GrossWeight(kg) | 12 | 12 |
