Specification:
Model: PTK 8810 SSG-D 10KG
Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15°C~+70°C
Operating Travel: 180°±10°
Refresh Rate: 333Hz
Net Weight: 46g
Pulse Width: 500 To 2500uSec
Motor Type: Coreless Motor
Dead Band: 2
Neutral Position: 1520uS
Size: 35.5*15*32mm
Bearing: Double Ball Bearing
Operating Voltage: 4.8V~8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.102 Sec/60° @ 5.0V
0.86 Sec/60° @ 6.0V
0.65 Sec/60° @ 7.4V
0.053 Sec/60° @ 8.4V
Stall Torque:
5 Kg-Cm @ 5.0V
6.5 Kg-Cm @ 6.0V
8 Kg-Cm @ 7.4V
10 Kg-Cm @ 8.4V

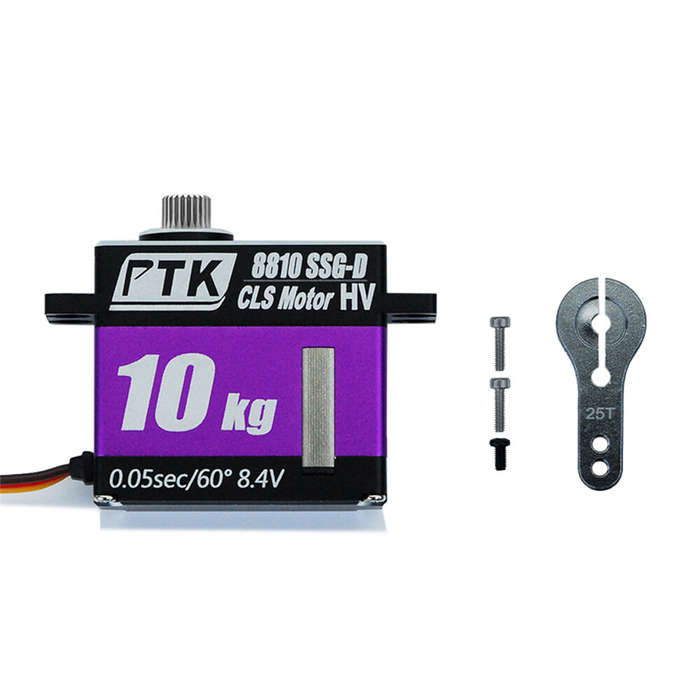

Package included:
1 x RC Servo
