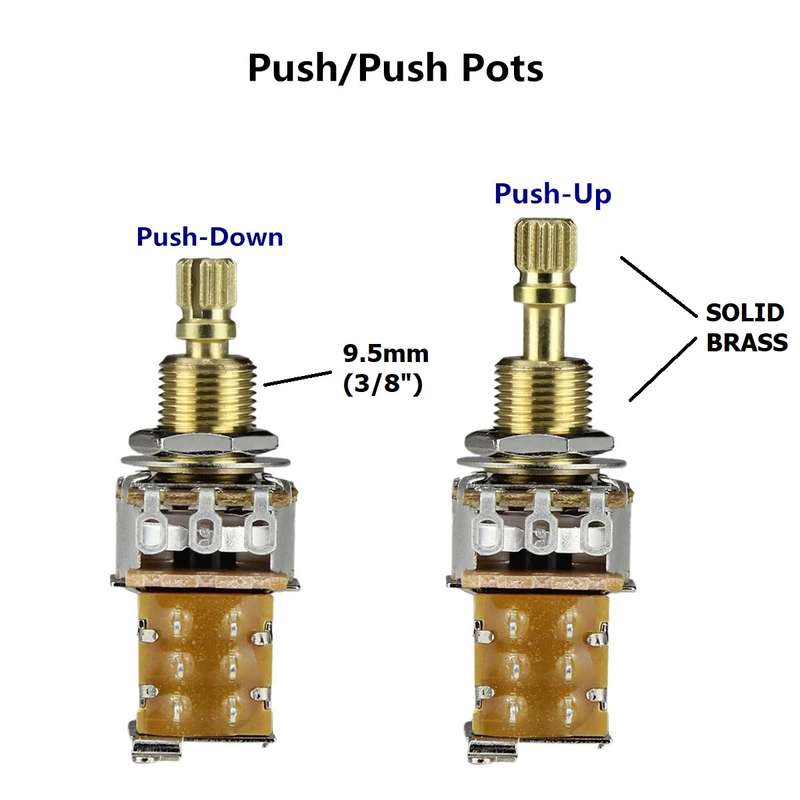

Push / Push Potentiometer (18mm Shaft Length)

A push-push potentiometer is used to turn a simple volume / tone knob into a volume / tone knob as well as a switch that can be pushed in and pushed out. Most commonly used to split humbucker pickups into single coil but there are various other uses too.

PRICE IS FOR 1 POT - Please add the desired amount of pots to your cart.

Includes 1 x washer and nut, if you want more to kind of create a spacer behind the pickguard please purchase "Nut and washer for USA / CTS Pot" separate

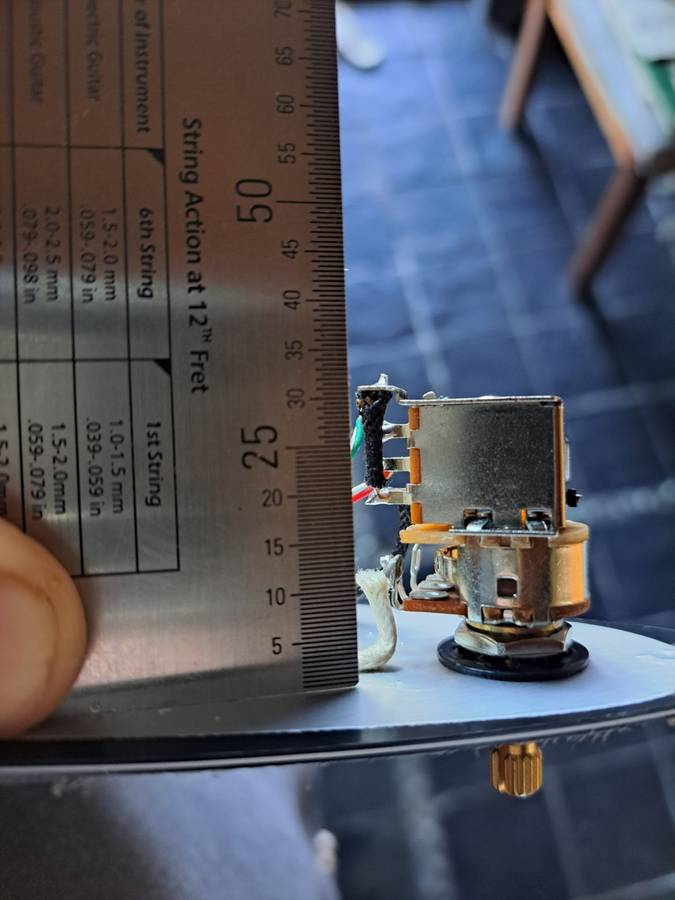

Required body cavity depth: At leat 31mm

Required hole size for mounting: 9.5mm (all the pickguards we sell at Valley Sound are USA spec with 9.5mm mounting holes)

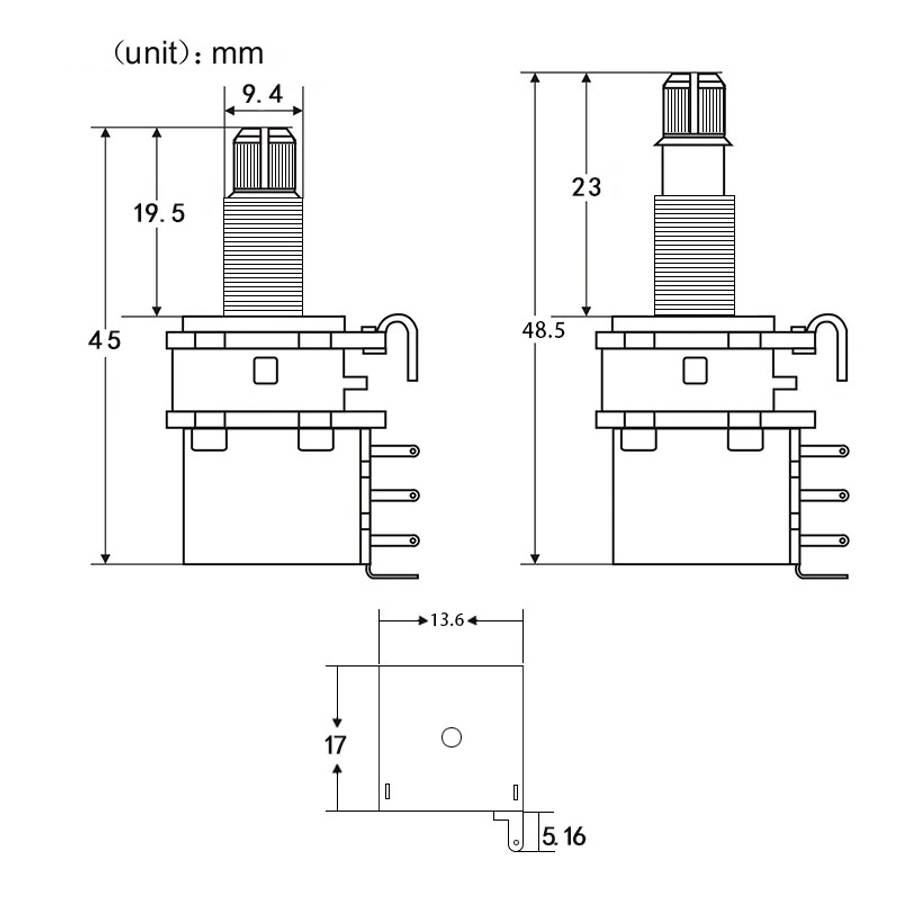

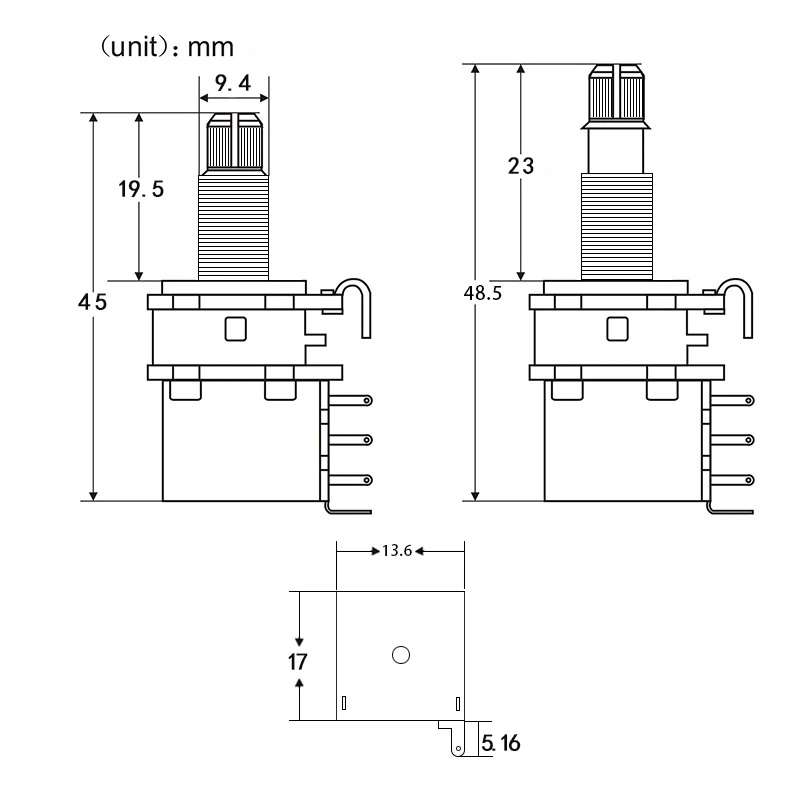

Pot diameter: 16mm (mini pot)

Shaft length: 18mm

Shaft Threaded diameter: 9.5mm

Shaft diameter for knob: 6mm (split)

250k pots are usually used for volume and tone control on single coil pickups

500k pots are usually used for volume and tone control on humbucker type pickups

Split shafts are suitable for push-on control knobs, solid shafts are suitable for knobs that have a tightening screw.

What is the difference between A pots and B pots?

"A" would denote an audio taper pot (most of the control happens between 7 - 10) and the "B" suffix would denote a linear taper pot (more even roll-off between 0 - 10)

A and B pots however are interchangeable and the only difference is the taper of the pot, or "how gradually it rolls off". This is determined by player preference and either will work fine.
