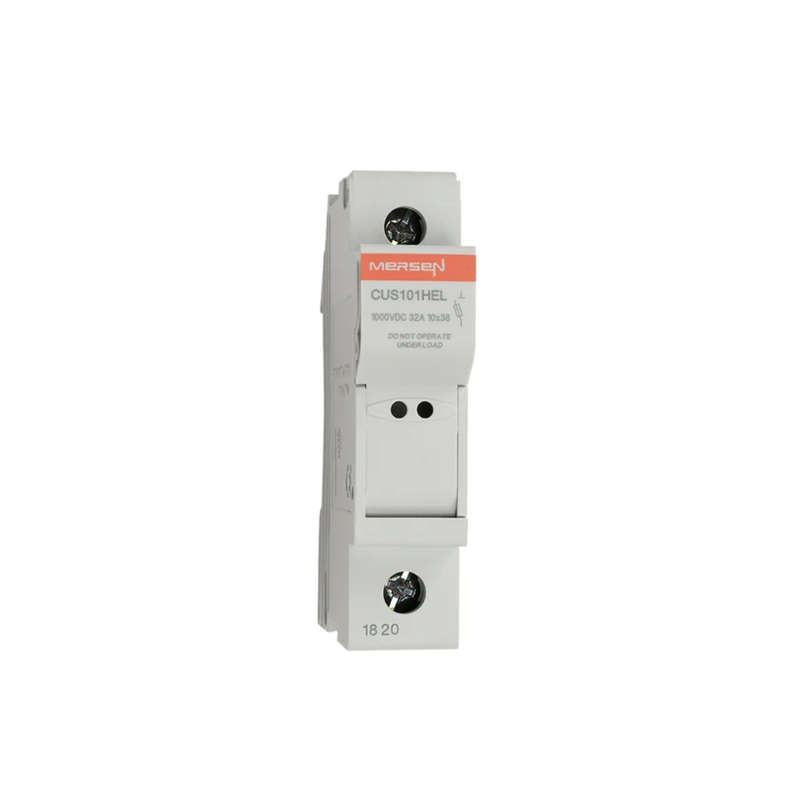

PV Modular fuse-holder CUS101HEL

Technical Specifications:

Short Circuit Current Rating (SCCR): 100 kA
Wire Type: Rigid / Multistrand wire = 1-16mm² (16-6AWG) Max.2x6mm²
CE Conformity: Yes
Reach Compliant: Yes
Max Operating Temp.: 70 °C
Min Operating Temp.: -40 °C
Max Storage Temp.: 70 °C
Min Storage Temp.: -40 °C
Degree of Protection (IP): IP20

Applications:

All photovoltaic applications up to 1000V
Combiner box applications
PV string/array level protection
Inverters

Key features & benefits:

Modular design
Compact design for space saving
DIN rail mounting
Degree of protection: IP20
Finger safe
Easy access to the fuse
Lockable without accessory
Sealable in closed & open position
Optional visual blown fuse indicator
Plastic material UL94V2 mini
Flame retardant materials with glow wire flammability index to 960°C
Very low power dissipation

CONDITION:
Used.

WARRANTY
7-day satisfaction gaurantee, no further warranty provided.
