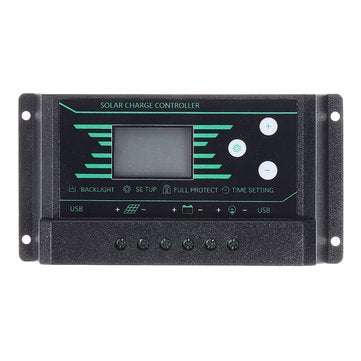

PWM 10/20/30A 12V/24V Auto Solar Charge Controller LCD Dispaly Battery Charge Sola... (CURRENT: 20A)

SELECTED OPTION:
CURRENT: 20A

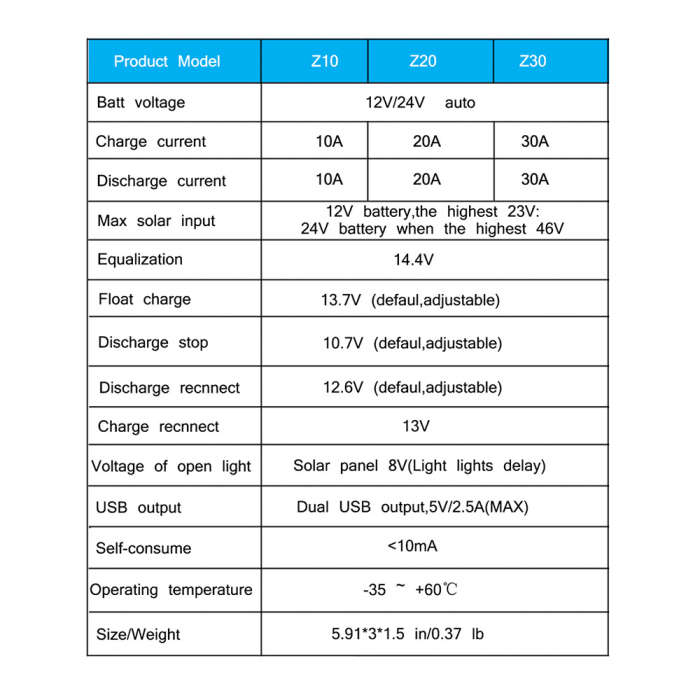

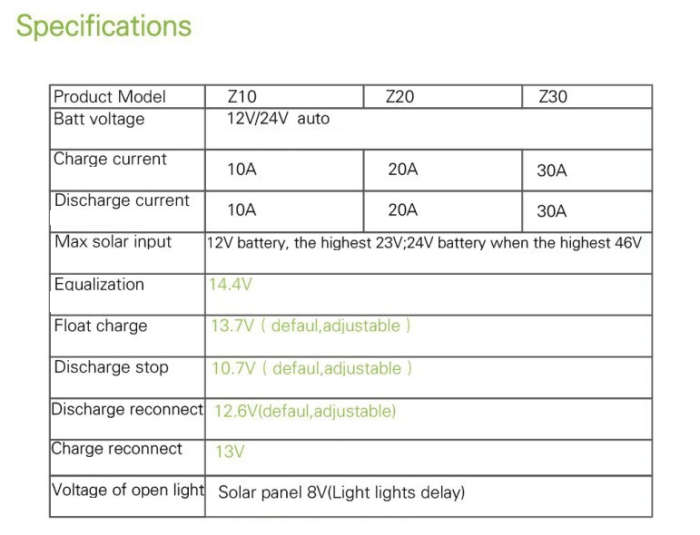

Specification:

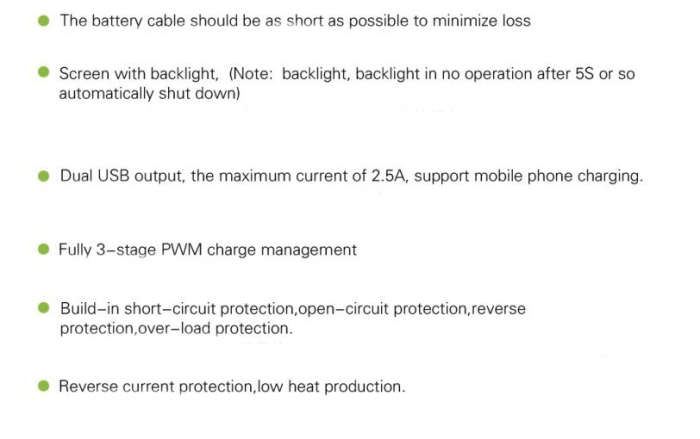

Feature: Build-in industrial micro controller Fully 3-stage PWM charge management Build-in short-circuit protection,open-circuit can be adjusted ,with power off memory function Screen with backlight,even more high-grade

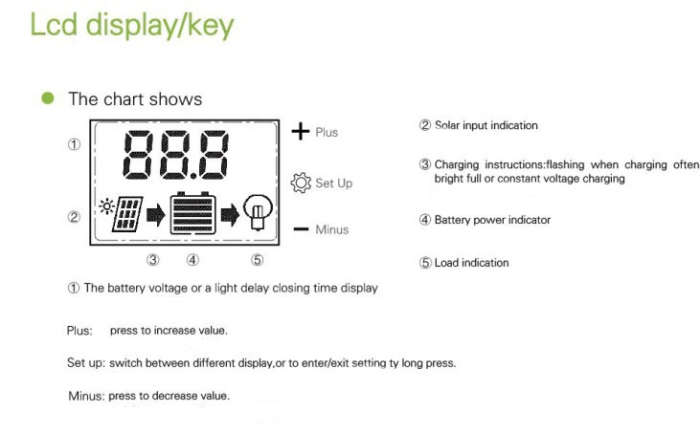

Large screen LCD display ,charge and discharge parameter Dual USB output ,the maximum current of 2.5A,to support mobile phone chargingprotection,reverse protection, over-load protection Reverse current protection, low heat production

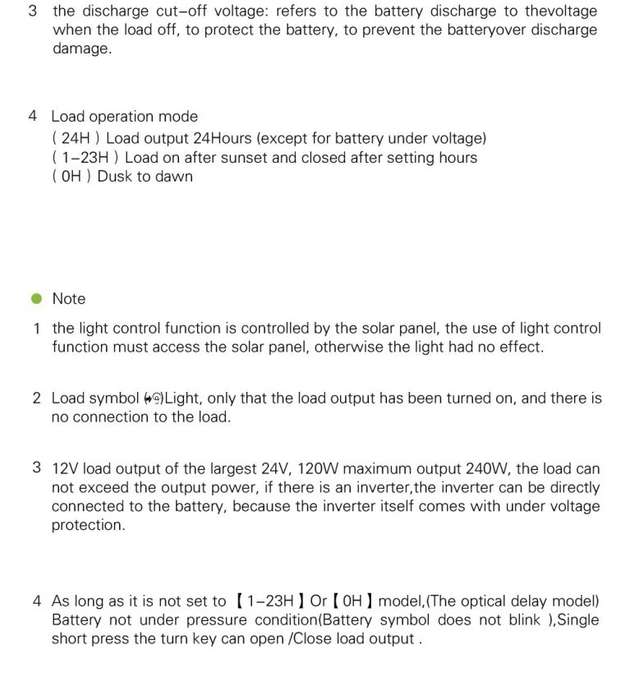

Battery&Working mode USB output:Dual USB output 5V/2.5A(Max) battery type: Lead Acid Batteries, AGM/Open/GEL battery; Load mode: Three working mode. (24H)----Load turn ON 24hours(except for battery under voltage) (1-23H)---- In nightfall, light on when solar panel voltage drop to 6V, it allows to set the running time from 1h to 23 hour according to your requirements; In daytime, light off when solar panel voltage rise to 8V. e.g set 4H, when dusk, light on, and light will turn off after 4 hours. (0H) ----Dusk to dawn, light ON when solar panel voltage drops to 3V; In daytime, light OFF when solar panel voltage rise to 8V. Automatically turn on in dusk, turn off in dawn without manual operation.


Package included:
1XSolar controller
