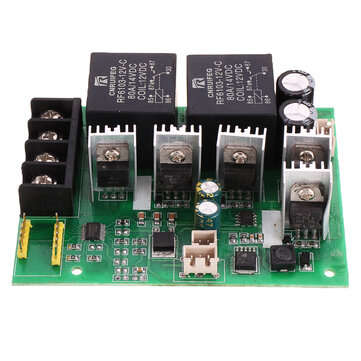

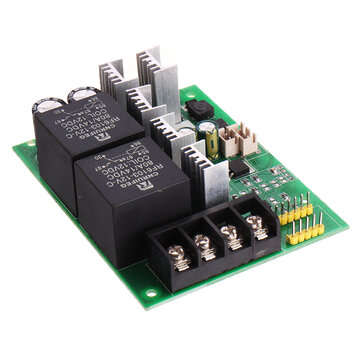

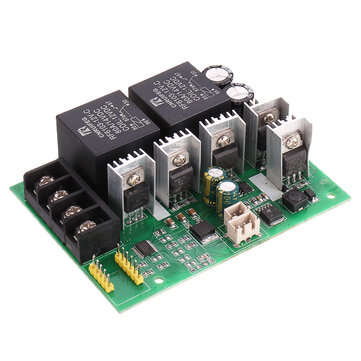

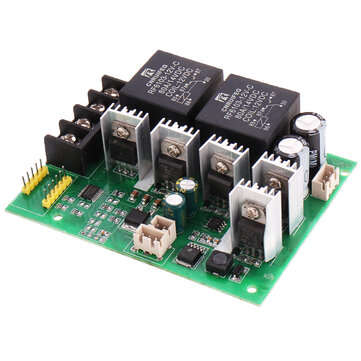

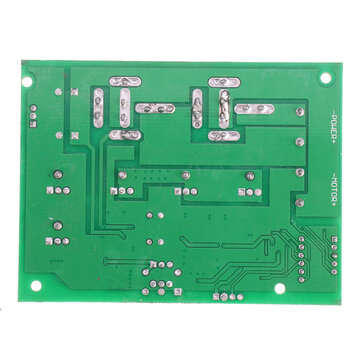

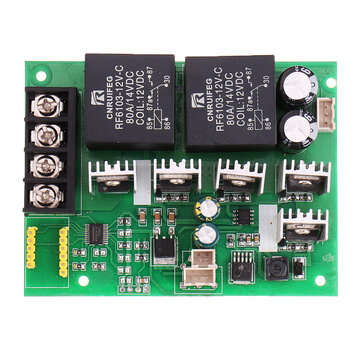

Description:
This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 55V. This speed controller with high power allows setting rotation direction.
Specifications:
Input Voltage: DC10V-55V
Output Voltage: Linear with load
Max. Current: 60A
Continuous Current: 40A
Speed Range: 0% to 100%
Forward & Reverse: Support
Regulation Method: Potentiometer(linear)
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Rotary Knob: 100K(with switch)
Size: 110 x 78 x 38mm / 4.33 x 3.07 x 1.49"
Features:
- Speed controller is made with high quality circuit board which ensures a longer service life.
- This simple and easy-to-use DC motor speed controller has an elegant appearance and stable performance.
- Designed with a digital display that shows the rate in percent of actual speed to maximum speed.
- This motor speed controller would allow setting direction of rotation that accomplishes reversing the motor's direction.

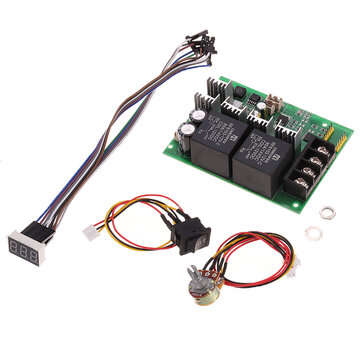

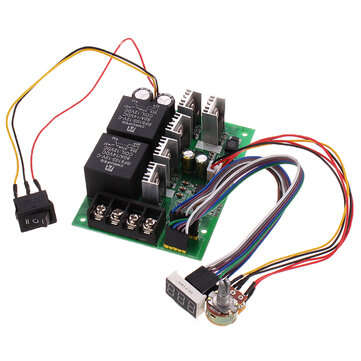

Package Included:
1 x PWM DC Motor Governor 10V-55V 40A Motor Speed Controller
