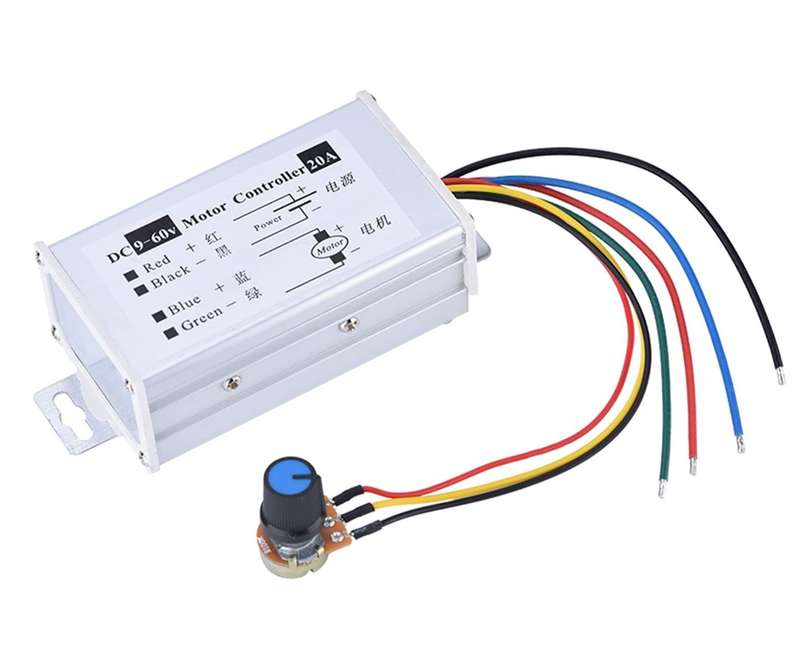

PWM DC Motor Stepless Speed Change

PWM DC Motor Stepless Speed Change / Pulse Width Motor Speed Switch / Speed Governor 9-60V 20A

Upgrade your motor control capabilities with our PWM DC Motor Stepless Speed Change, offering unparalleled precision and flexibility for your diverse applications. With advanced pulse width modulation technology, this speed governor allows seamless control over motor speed within a wide voltage range of 9-60V, with a maximum current capacity of 20A.

Technical Specifications:

• Function: PWM DC Motor Speed Controller
• Voltage Range: 9-60V DC
• Current Capacity: Up to 20A
• Control Method: Pulse Width Modulation (PWM)
• Speed Control: Stepless, allowing for precise adjustment of motor speed from 0% to 100%
• PWM Frequency: 25 KHz
• Efficiency: Greater than 90%
• Adjustable Speed Range: 0-100%
• Speed Adjustment Way: Potentiometer
• Output Voltage: Linear Under Load
• Power: 1200W
• Size: Approx. 92 x 52 x 36mm / 3.6 x 2.0 x 1.4in
• Material: Metal
• Package Weight: 132g

Key Features:

1. Voltage Adjustable: The adjustable voltage range from 9V to 60V allows for truly smooth and continuous power adjustment, providing up to 1200W of power. Suitable for DC motors within 20A.

2. Motor Speed Regulation: Easily control voltage and speed via the adjustable rotary knob. Govern speed steplessly from 0% to 100%, utilizing advanced technology for high efficiency.

3. Durable Performance: Constructed with high-quality metal shell, this speed controller ensures durability and safety with no rust. The high-quality circuit board guarantees stable and reliable performance.

Package Included:

• 1 x Speed Controller

Note:

• This DC motor controller is designed for direct current input only. Do not connect to alternating current, as it will cause damage.
• Ensure correct polarity connection to prevent damage to the controller.
