PWM Motor Speed Controller 6V - 28VDC 3A

PWM Motor Speed Controller 6V - 28VDC 3A

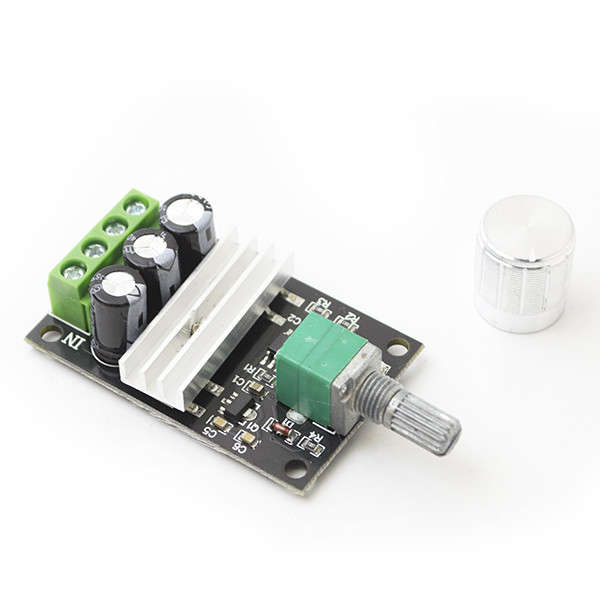

DC 6V - 28V 3A PWM Motor Speed Variable Regulator Controller Switch

This DC Motorￂﾠ ￂﾠSpeed Controller allows controlling the direction of a DC motor using aￂﾠ ￂﾠPulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fullyￂﾠ ￂﾠadjustable from 0%-100%.ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠￂﾠ

The motor speed controller can easily provide a continuous current of3A to your DC motor or other DC load.

Main technical parameters:

• Input supply voltage:6V-28VDC
• The maximum output power: 80W
• The maximum continuous output current :3A
• Duty Cycle adjustable:5%-100%
• Board Dimensions : L= 50mm, W=32mm, H=16mm

Operating instruction:ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠￂﾠ

1.Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠￂﾠ

2.Connect a voltage of 6V-28VDC to the circuit making sure of theￂﾠ ￂﾠcorrect polarity of the connection. Note that the voltage applied to theￂﾠ ￂﾠmotor will be supply voltage applied to the circuit. It is recommendedￂﾠ ￂﾠto add an appropriately rated fuse inline with the positive supply inￂﾠ ￂﾠorder to protect the circuit from any possible short circuits.ￂﾠￂﾠ

3. You can now control the speed of the motor through potentiometer.
