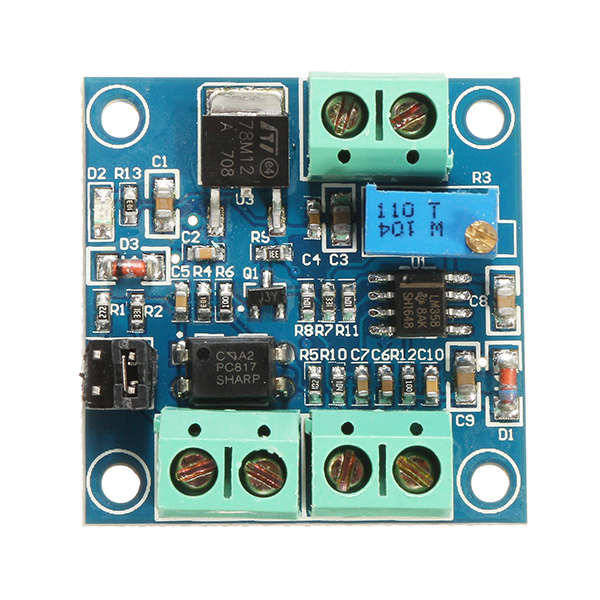

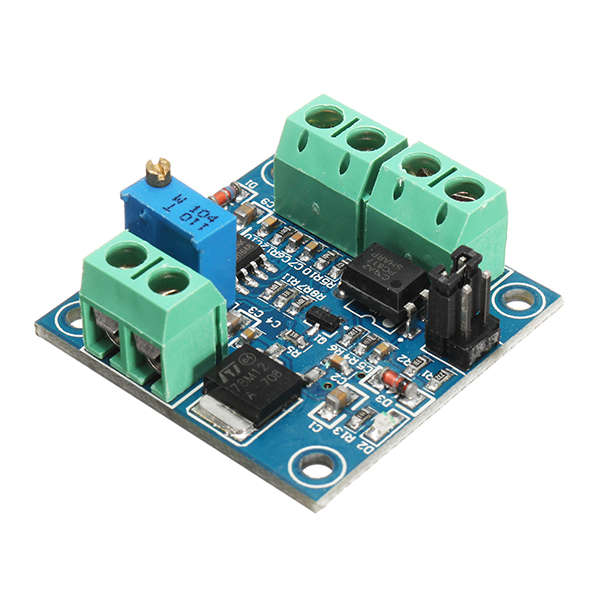

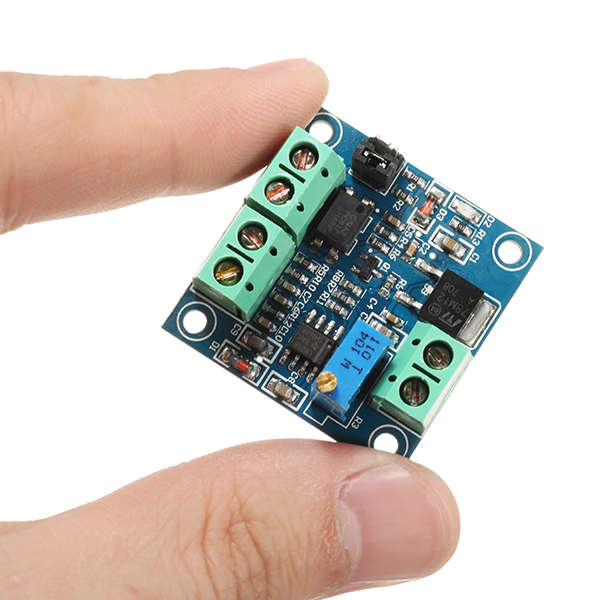

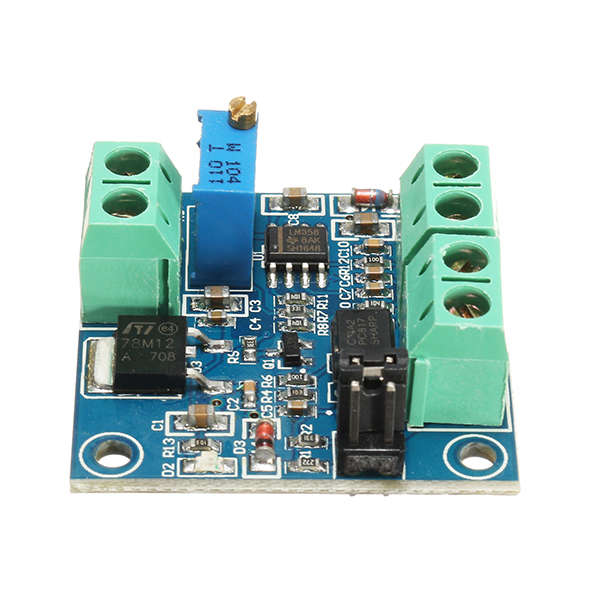

PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage

PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage

New 20 available
R442.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654107139

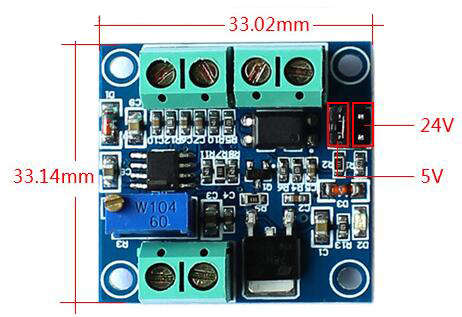

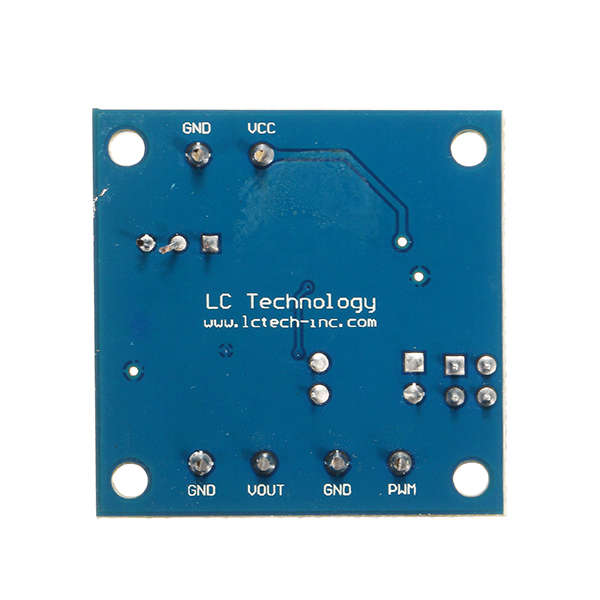

Description: Using single chip embedded technology; Peak 4.5v to 10V level, jumper inserted at 5V. This level of signal mainly for conventional industrial control card (such as MACH3 board Card) 5V CPU interface; Easy to operate, can be fine-tuned by potentiometer; Select the PWM signal input level range through short cap; Module is small, easy to carry and use; Module operating voltage: DC12V-30V (power requirements: greater than 100mA); PWM signal reception frequency range: 1KHz-3KHz; Peak 12 to 24V level, jumper inserted in the 24V. This level of signal is mainly aimed at the conventional PLC interface; Conversion range: 0% -100% PWM to 0-10v voltage; Allowable error: 5%; Pin Definition: VCC: working power 12-30V GND: ground PWM: input PWM signal positive GND: input voltage ground VOUT: Output voltage: 0-10V GND: output ground


Package included:

1 xPWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage












, , , , , ,
