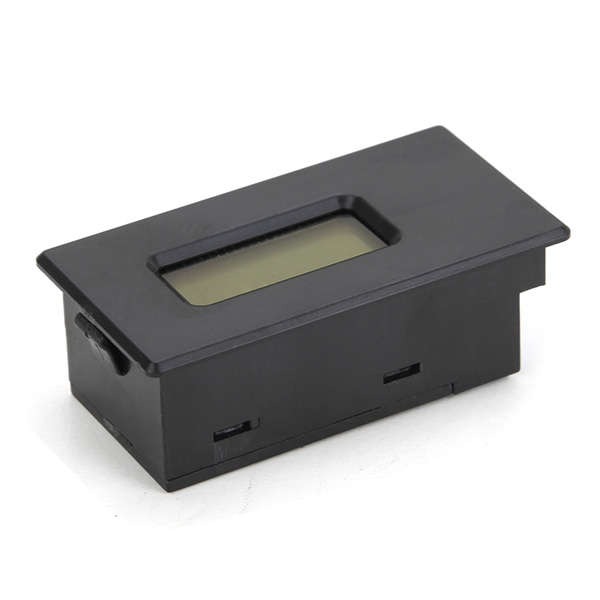

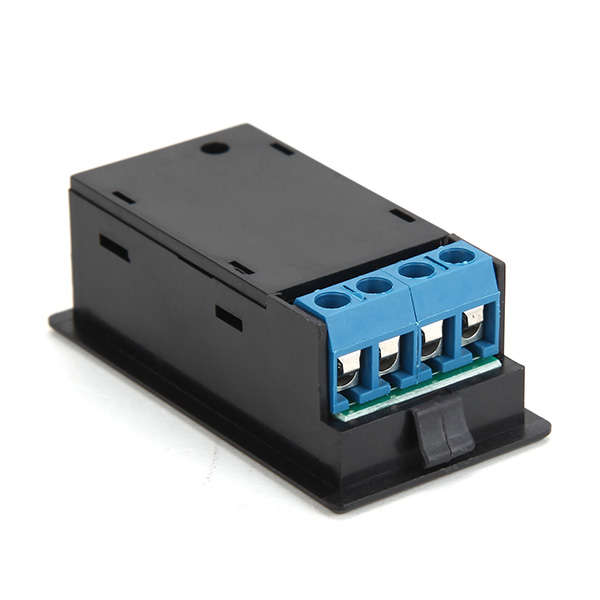

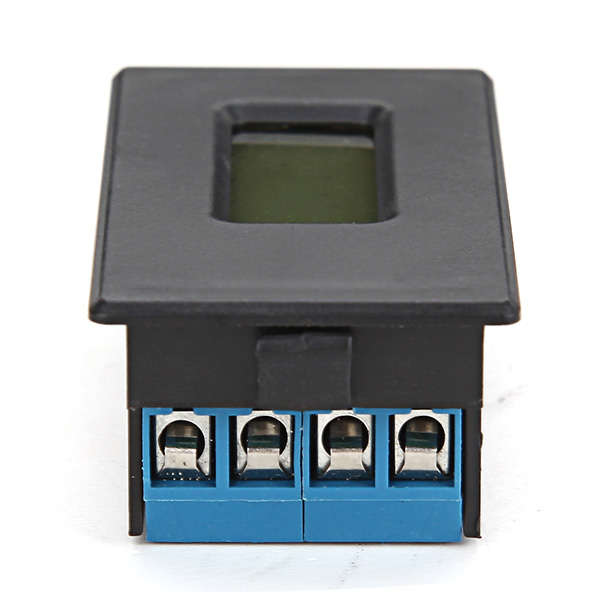

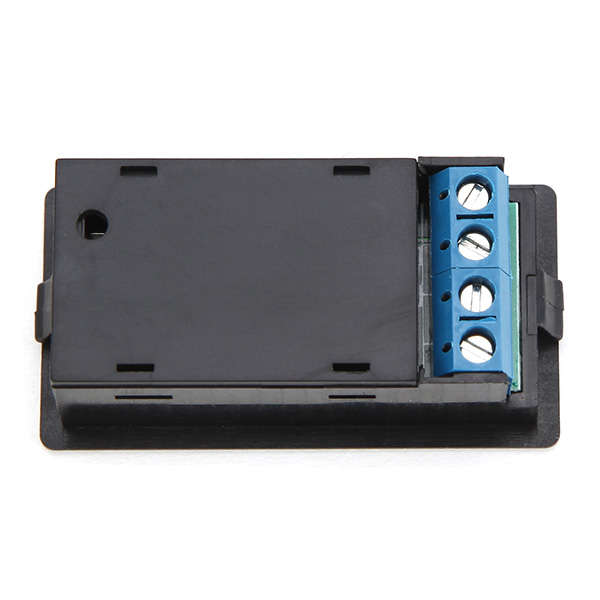

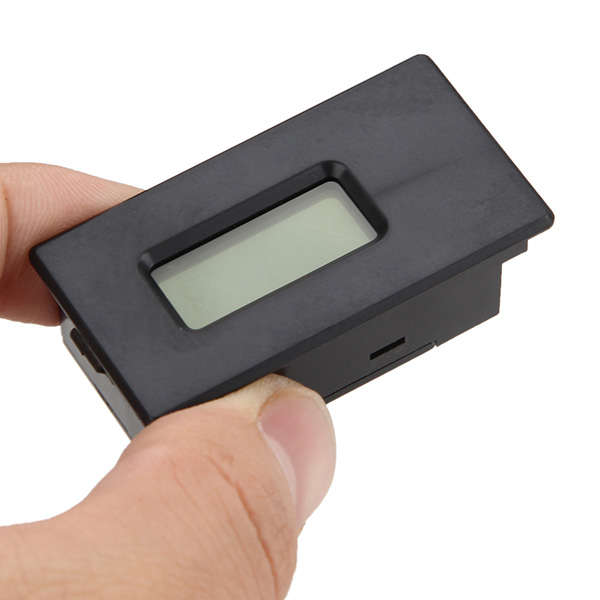

PZEM-005 DC Battery Parametric Tester Module 2.8-26V 0.1-10A LCD Voltage And Current Power Meter TesterDescription:PYM-005 multifunction tester model specifications, the multifunction tester is mainly used to display the battery voltage, battery power, the load current and load resistance.
Test voltage 2.8-26V; test current 0.1-10A
Real-time monitoring of the charging and discharging parameters of state power, voltage, current, remaining battery power (It must first set the cut-off voltage, full voltage)
Here is the Connection Diagram:Feature:Power supply: lithium battery-powered through LDO, the power supply voltage is greater than 2.8V
Working temperature: -10'C ~ + 40'C
A) Battery voltage measurement:Measuring range: 2.8 ~ 26.0V
Resolution: 0.1V
Accuracy: 2%

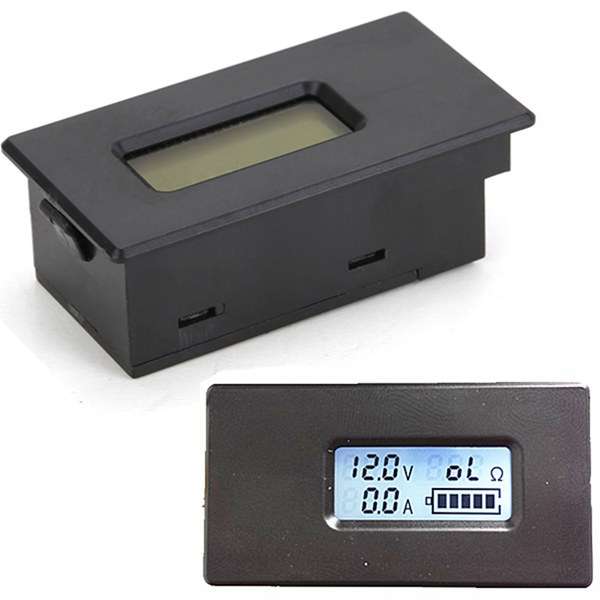

B) Battery Power measurement:Battery power is battery power on the grid in the form of LCD display, A total of five rating, Battery is distinguished by the battery voltage
Show full power when the grid is 5, Show 4/5 power when the grid is 4, Show 3/5 power when the grid is 3,Show 2/5 power when the grid is 2,Show 1/5 power when the grid is 1, When the battery cut-off voltage, Displaying 0 grid (only battery frame)
When the power voltage measured as full charge, the battery cut-off voltage set at zero power
Battery cut-off voltage can be set, Range set for 2.8 - 26.0V, But not more than the full-scale voltage
Battery full-scale voltage can be set, Range set for 2.8V - 26.0V, But not less than the cut-off voltage
C) Load current measurement:Measuring range: 0.0 - 10.0A
Resolution: 0.1A
Accuracy: 2%
D) Load Resistance Measurement: Load resistance is through the battery voltage divided by the load current calculated
Measuring range: 0 ~ 999 Ω, more than 999 Ω display "oL"
Resolution:
1, When the resistance is less than 10Ω, Resolution of 0.01Ω.
2. When the resistance is greater than equal to 10Ω, and when less than 100Ω, with a resolution of 0.1Ω.
3. When the resistance is greater than or equal 100Ω, and when less than 1000Ω, with a resolution of 1Ω.
Accuracy: 2%
E) Backlight control:On power backlight off default state by pressing a button control the backlight brightness and off
Calibration:Package included:1 x PZEM-005 DC Battery Parametric Tester Module 2.8-26V 0.1-10A LCD Voltage And Current Power Meter Tester
