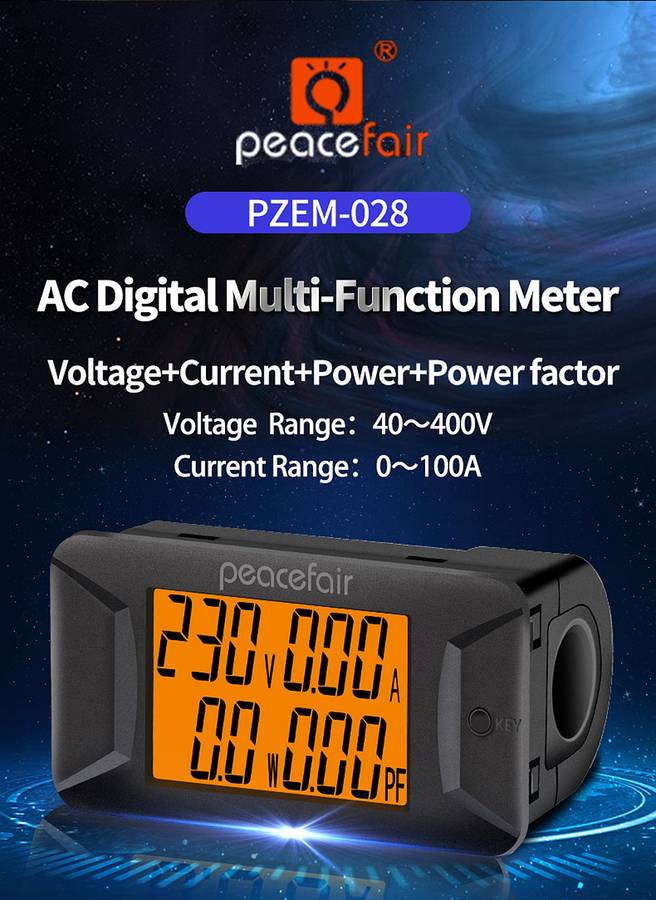

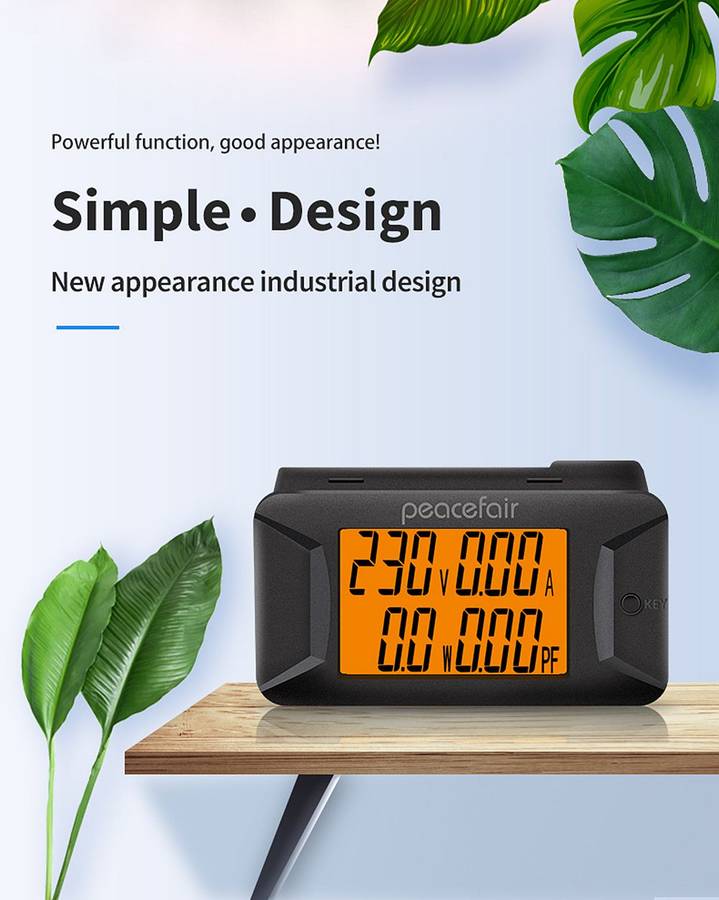

PZEM-028 AC 40-400V 100A Digital Multimeter Voltage Current Power Meter Electrical Instrument Power Factor MeterCourier Shipping: 8-15
Business Days.

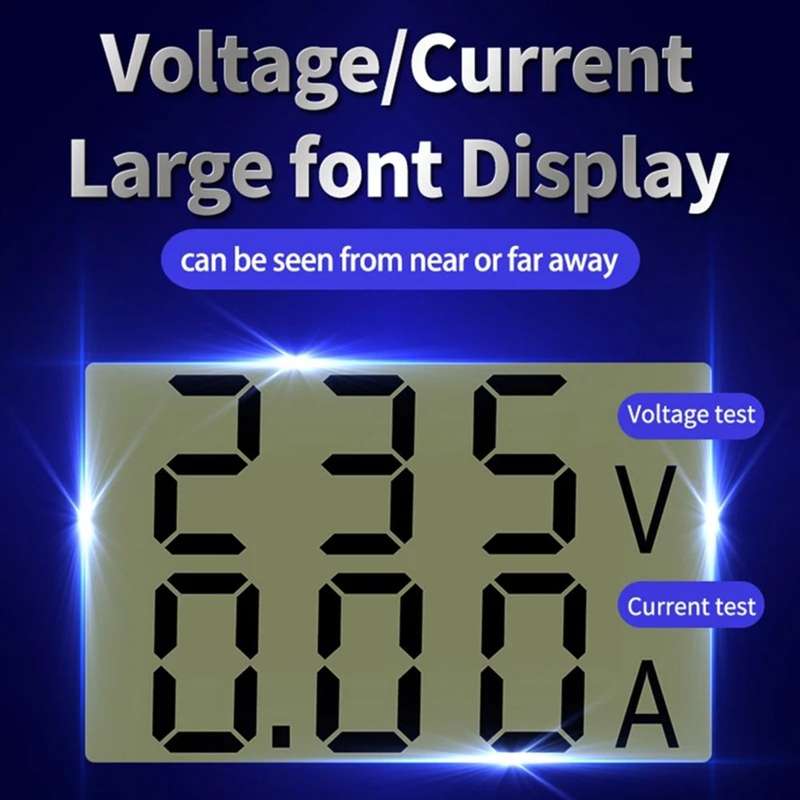

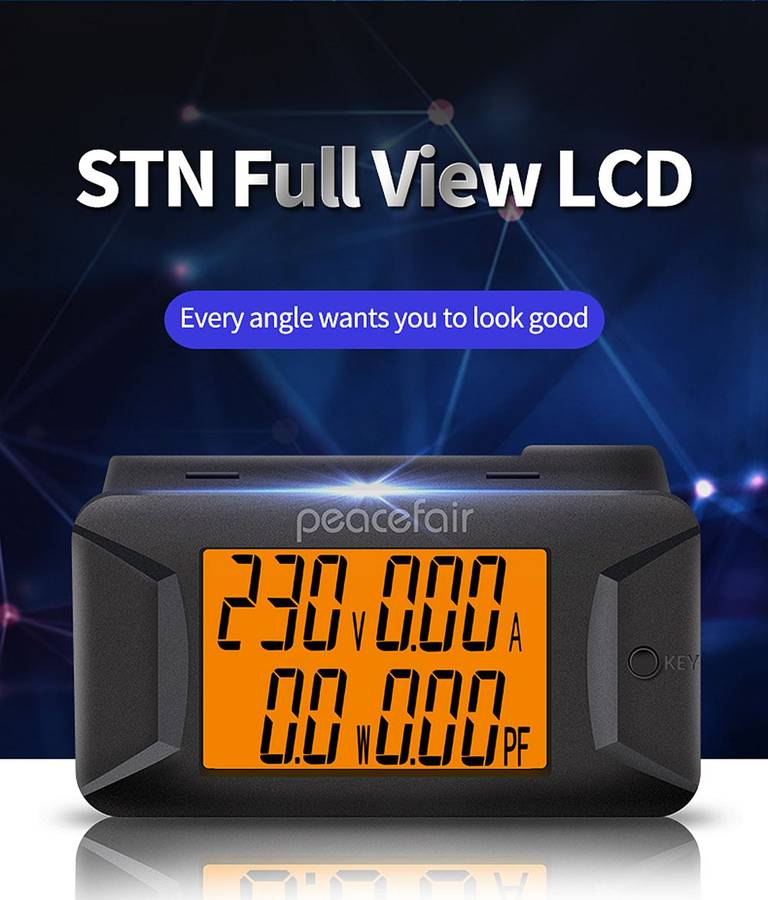

Display Instruction:

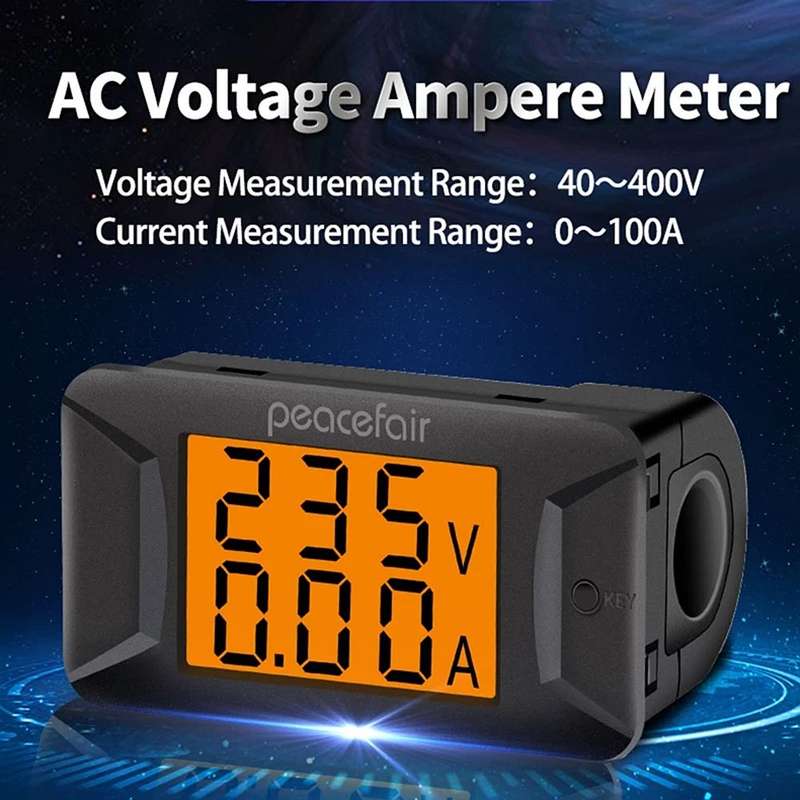

Voltage
Measurement range: 40ﾽﾞ400V
Display format:ﾼﾜ100V display such asﾼﾚ80.0V
￢ﾉﾥ100V display such asﾼﾚ220V
Accuracy: ￂﾱ1%
Current
Measurement range: 0ﾽﾞ100A
Display format: ﾼﾜ10A display such asﾼﾚ1.00A
ﾼﾜ100A display such asﾼﾚ10.0A
￢ﾉﾥ100A display such asﾼﾚ100A
Starting measurement:0.02A
Accuracy: ￂﾱ1%
Power
Measurement range: 0ﾽﾞ22kW
Display format:ﾼﾜ10W display such asﾼﾚ5.0W
ﾼﾜ100W display such asﾼﾚ50.0W
ﾼﾜ1000W display such asﾼﾚ500W
ﾼﾜ10000W display such asﾼﾚ5.00kW
￢ﾉﾥ100V display such asﾼﾚ22.0kW
Starting measurement:2.2W
Accuracy: ￂﾱ1%
Power factor
Measurement range: 0ﾽﾞ1
Display format: such asﾼﾚ1.00PF
Other Function

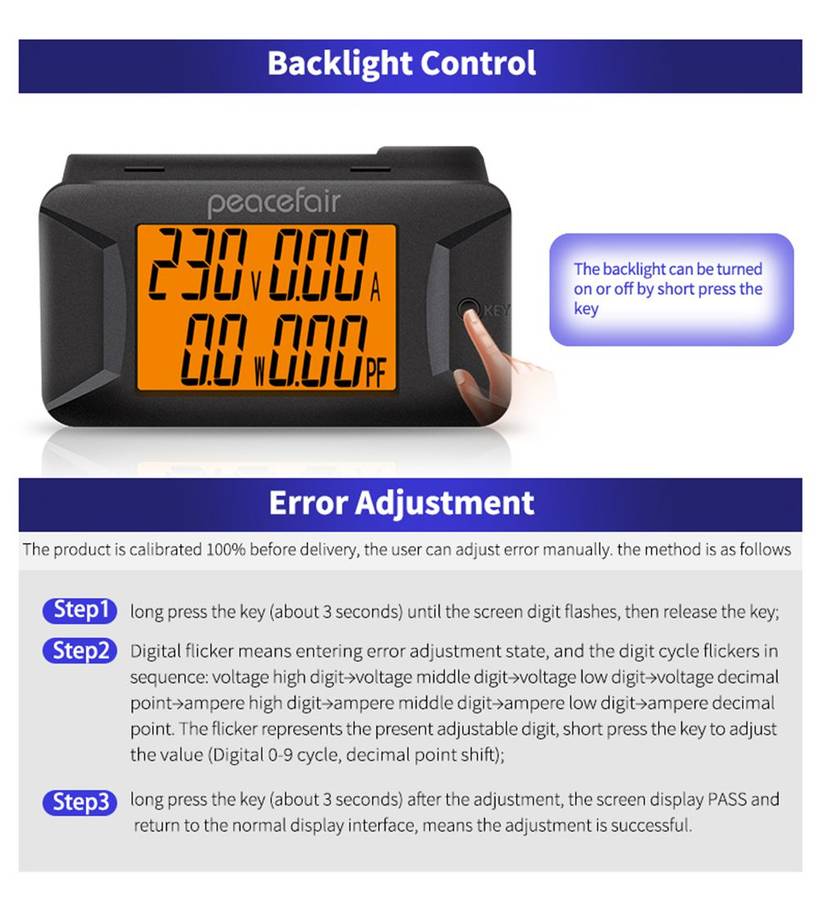

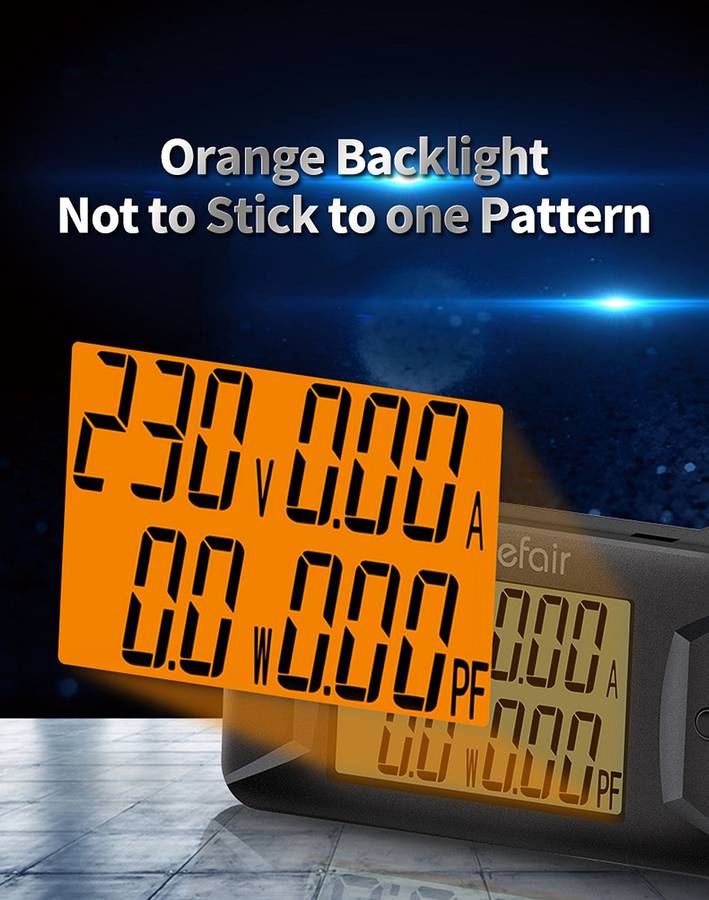

Backlight control
The backlight can be turned on or off by short press the key

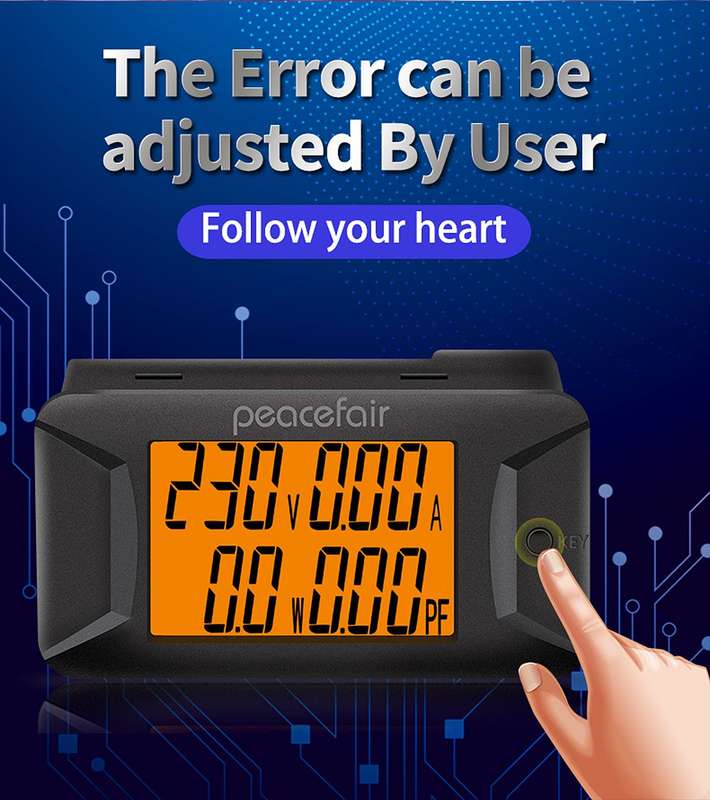

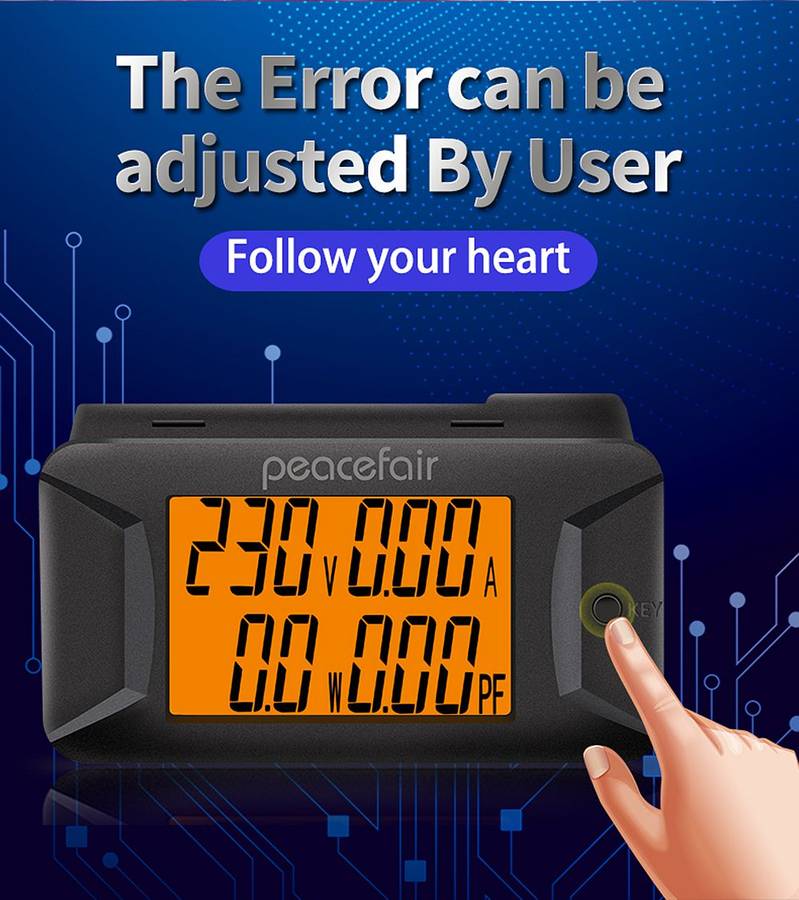

Error Adjustment:
The product is calibrated 100% before delivery, the user can adjust error manually. the method is as follows
Step 1: long press the key (about 3 seconds) until the screen digit flashes, then release the key;
Step 2: Digital flicker means entering error adjustment state, and the digit cycle flickers in order : voltage high digit￢ﾆﾒvoltage middle digit￢ﾆﾒvoltage low digit￢ﾆﾒvoltage decimal point￢ﾆﾒampere high digit￢ﾆﾒampere middle digit￢ﾆﾒampere low digit￢ﾆﾒampere decimal point. The flicker represents the present adjustable digit, short press the key to adjust the value (Digital 0-9 cycle, decimal point shift);
Step 3: long press the key (about 3 seconds) after the adjustment, the screen display PASS and return to the normal display interface, means the adjustment is successful.
Note: error adjustment must be carried out under pure resistance (PF=1.00) load environment, otherwise the active power error after adjustment will be too large!
Package Included:
1 x PZEM-026 AC Voltmeter Ammeter
