SELECTED OPTION:
PLUG: EUPLUG
Features: 1. Shell materials: fire-proof PC material, high temperature resistance. 2. Material used for fixed circuit board: Sealant for imported electronic products from USA, fireproof and high temperature resistant. 3. PCB board materials: using high-end electronic products dedicated PCB board, not fragile, no deformation. 4. Safety Pipe: Use insulated safety pipes and add thermistor to act as AC buffer. 5. Circuit board technology: automatic production with all machines, high-speed patch machine, reflow soldering, automatic plug-in machine, wave soldering, environmental protection technology, etc. No virtual welding problems, smooth solder joints, reduce the follow-up repair bright, stable and reliable quality.
6. DC line: use copper wire core 0.5 square, ample current, to ensure the actual power requirements. 7. Production process standards: in line with the safety standards of electronic products, in line with CE, FCC, ROHS and other certification standards. 8. Signal Feedback Filter: High Voltage Filter Capacitor Model Using High-end Electronic Products Standard. 9. Output filter inductance: With output filter inductance, less text wave, can effectively protect the computer motherboard. 10. High Voltage AC Filter: It uses stabilized oscillating current bridge and thermistor to effectively buffer high voltage.
Specification:

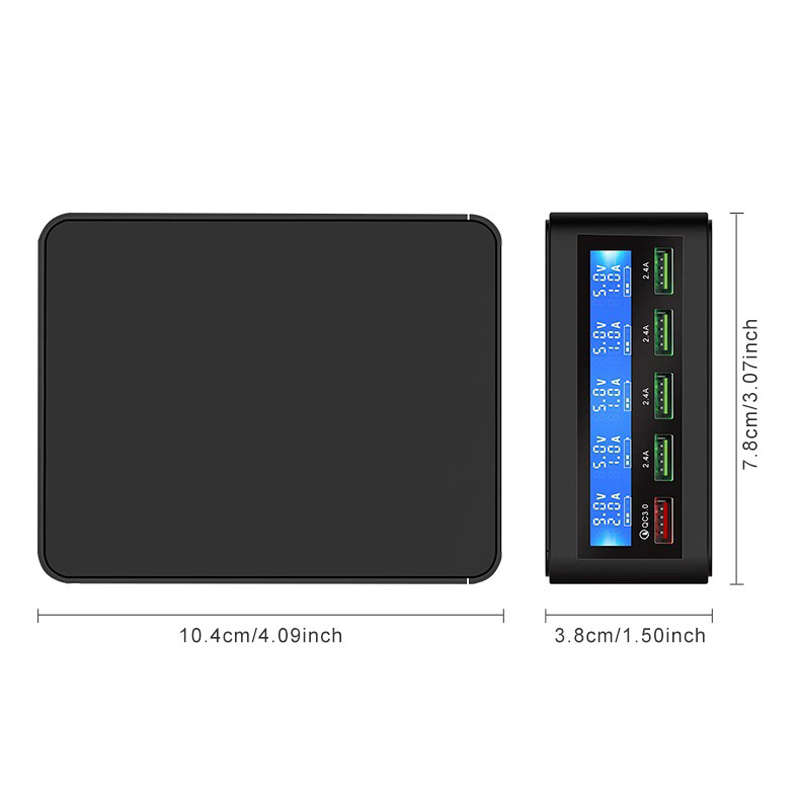

5 Ports Intelligent Fast Charger Input voltage: 100-240V (50-60HZ) Output interface Qc 3.0: (3.6V-5V/3A, 6.5V-9V/2A, 9V-12V/1.5A) Output interface SI: 5V/1A 2.4A 3.5A Output total current: 8A/40W Product size: L98 x W80 x H38mm
Package Included:
1 xQC3.0 5 USB Mobile Phone Charge
Detail Pictures:
