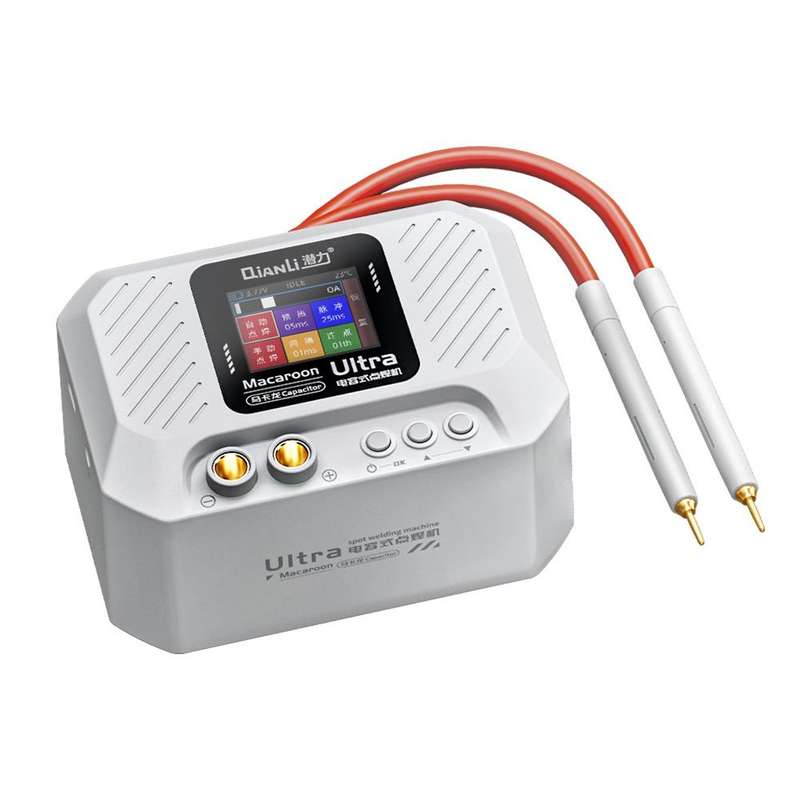

Qianli Macaron Ultra Capacitive Battery Spot Welding Machine for 0.1-0.4mm Thick Nickel Sheet, Plug:US Plug

Features:
1. Macaron Utlra Capacitor Type Spotting Machine, welding 0.1~0.4mm thickness nickel sheet as you like, adjustable parameters, capacitor energy storage, instant high power, more accurate welding
2. Maximum 5500W welding power, 1100A welding current, 0.1~0.4mm thickness nickel sheet welding easily
3. Multi-function: can adjust the welding delay, continuous point interval, shutdown voltage welding sound, language switching screen brightness, automatic shutdown time, alarm temperature, restore factory settings and so on
4. Dual mode: automatic/manual spot welding mode can be selected by yourself to switch
5. Continuous point function: contact with a single output N welding current pulse group can be reinforced with ultra-thick nickel strip
6. Copper tip, round tip welding point, welding needle can be replaced, strong conductivity, larger contact surface, easy to replace
7. Spot welder back reserved 1/4 screw holes, can be installed in a variety of 1/4 hole bracket

Specification:
1. Model: Macaroon UItra
2. Name: Capacitor spot welder
3. Power supply type: Farad capacitor
4. Output voltage: 5V
5. Welding Power: 5500W Max
6. Welding current: 1100A Max
7. Front side double strokes spot welding: 0.3mm nickel chip Max
8. Chassis single pen spot welding: 0.4mm nickel sheet Max
9. Product size: 126 x 88 x 65mm
10. Product weight: 414g

Package includes:
1 ￃﾗ Spot Welding Machine
1 ￃﾗ File
2 ￃﾗ Spot Welding Pens
1 ￃﾗ Nickel Sheet
EDA008308601
