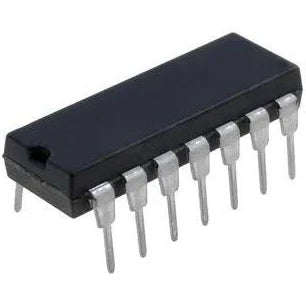

Quad operational amplifier LM324N

Quad operational amplifier LM324N

New 220 available
R23.69
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EC-150
Bob Shop ID
614718234


Quad operational amplifier LM324N

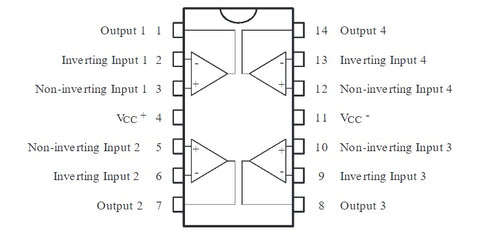

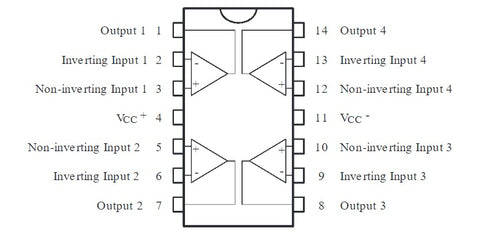

This operational amplifier IC has a total of four operational amplifiers that use a common Vcc+ and a common Vcc-. This means that you only need one power source for the Vcc of the operational amplifiers. Below is a schematic of the pinout of the IC to help you set it up the correct way.

Technical specifications:

Max Vcc

+-16V or 23V

Min input voltage

-0.3V

Max input voltage

32V

Max output current

70mA

Data sheet
