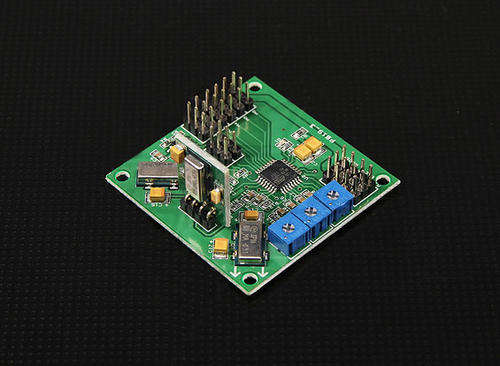

Quadcopter Control Board V2 (Atmega168PA)

PLEASE NOTE:

To keep our prices as competitive as possible, all of our hobby items are drop shipped from our supplier abroad, therefore if your package is inspected by customs (this has rarely happened to our customers thus far) you may be required to pay taxes (usually just VAT  - 14%). We cannot be held responsible for the taxes levied, so please be aware of this.

Our international shipping works as follows - shipping costs are specified on a sliding scale according to weight. All hobby products have a specified shipping weight at the end of the listing. You may order as many products as you want from us, add up the total shipping weight and select the correct weight during checkout. Standard shipping takes 6-21 days and EMS Express takes 3-4 days (subject to stock availability).

We have a wide range of products available, but if there is any product you require that we do not list, don't hesitate to contact us and we will try to get hold of that product for you.

Happy shopping!

Based on the popular and already well supported KK Control board, the Hobbyking Quadcopter control board is bringing Quadcopter madness to the masses with its breakthroughs in quality and price!

The HobbyKing Quadcopter control board uses Japanese Murata piezo gyros that are less sensitive to vibration than SMD type gyros and also features state of the art SMT manufacturing to ensure quality. This board also uses a user programmable Atmega168PA IC.

Specs.
Size: 50.5mm x 50.5mm x 23.5mm
Weight: 14.5 gram
IC: Atmega168PA
Gyro: Murata Piezo
Input Voltage: 3.3-5.5V
Signal from Receiver: 1520us (4 channels)
Signal to ESC: 1520us (4 ESCs)

Whats is a Quadcopter Control board you ask?

The HobbyKing Quadcopter controller is a flight control board for 4 rotor Aircraft (Quadcopters). Its purpose is to stabilise the aircraft during flight. To do this it takes the signal from the three on board gyros (roll, pitch and yaw) then passes the signal to the Atmega168PA IC. The Atmega168PA IC unit then processes these signals according the users installed software and passes control signals to the installed Electronic Speed Controllers (ESCs). These signals instruct the ESCs to make fine adjustments to the motors rotational speed which in turn stabalises your Quadcopter.

The HobbyKing Quadcopter control board also uses signals from your radio systems receiver (Rx) and passes these signals to the Atmega168PA IC via the ail, ele, thr and rud inputs. Once this information has been processed the IC will send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled flight (up, down, backwards, forwards, left, right, yaw).

 Shipping Weight: 99g
