Specification : Input voltage | Electricity | Accessibility power | Speed of melt tin |
19V | a2.38A | 45W | 9S |
20V | a2.50A | 50W | 9S |
21V | a2.63A | 55W | 8S |
22V | a2.75A | 61W | 8S |
23V | a2.88A | 66W | 8S |
24V | a3.00A | 72W | 7S |

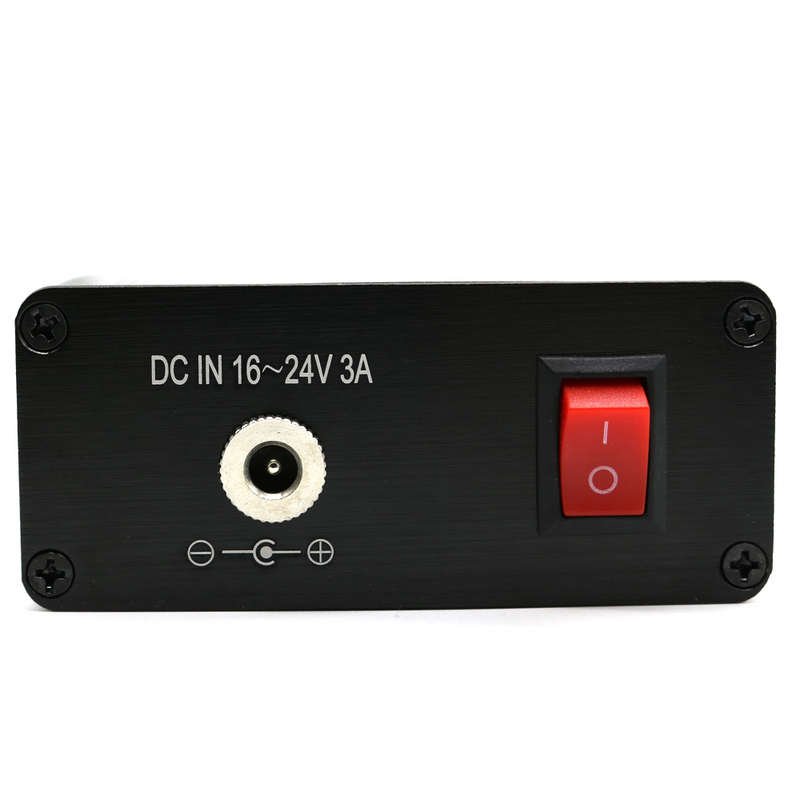

Suitable for DC 24V notebook power, car power, mobile power and battery supply.

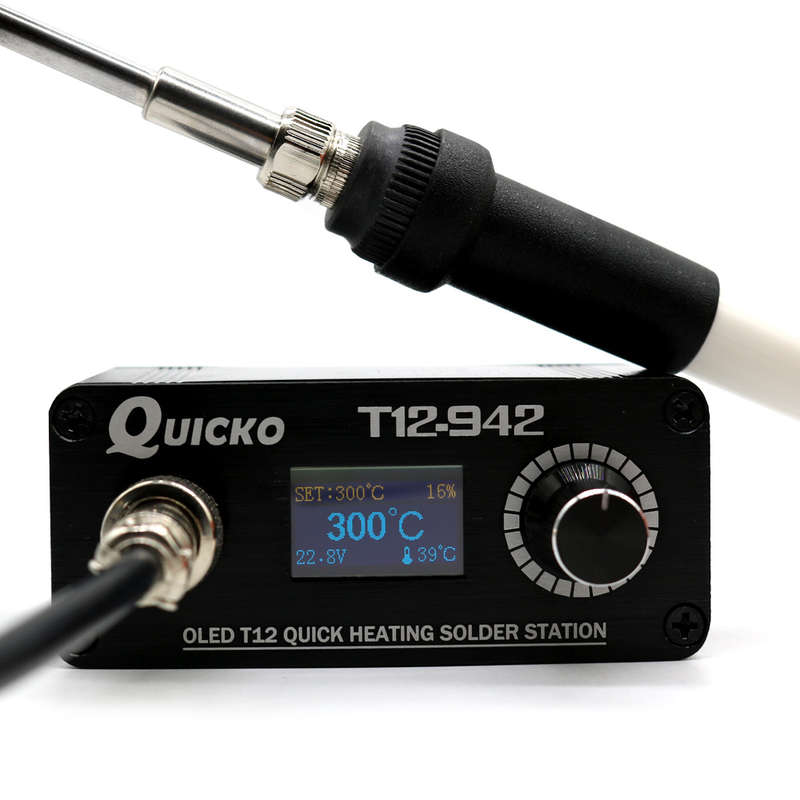

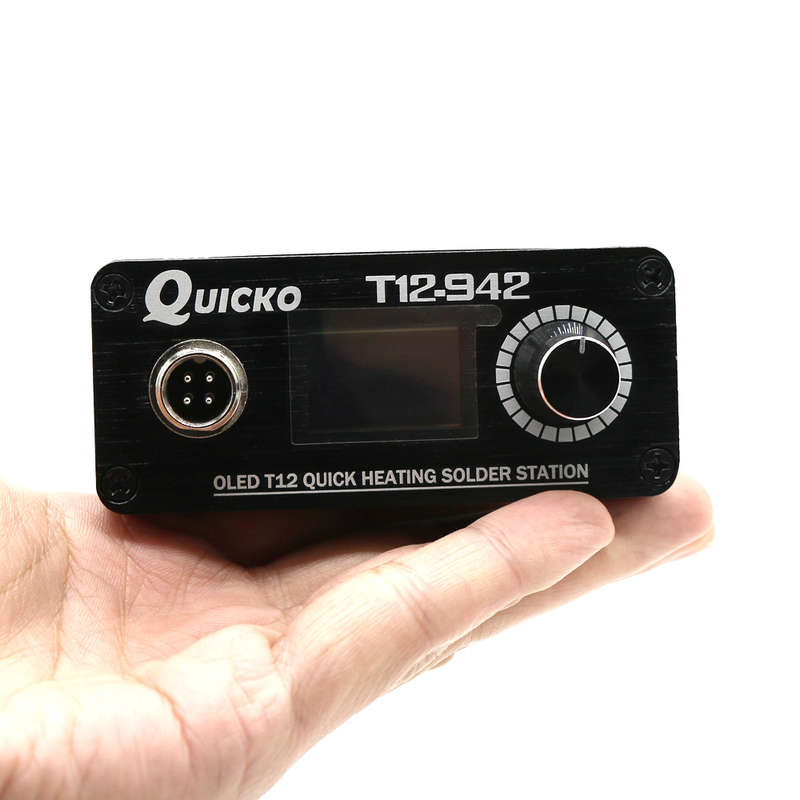

THIS IS MINIPortable OLED T12 solder iron station, you need to prepare a DC 24V 3A-5A power by yourself.

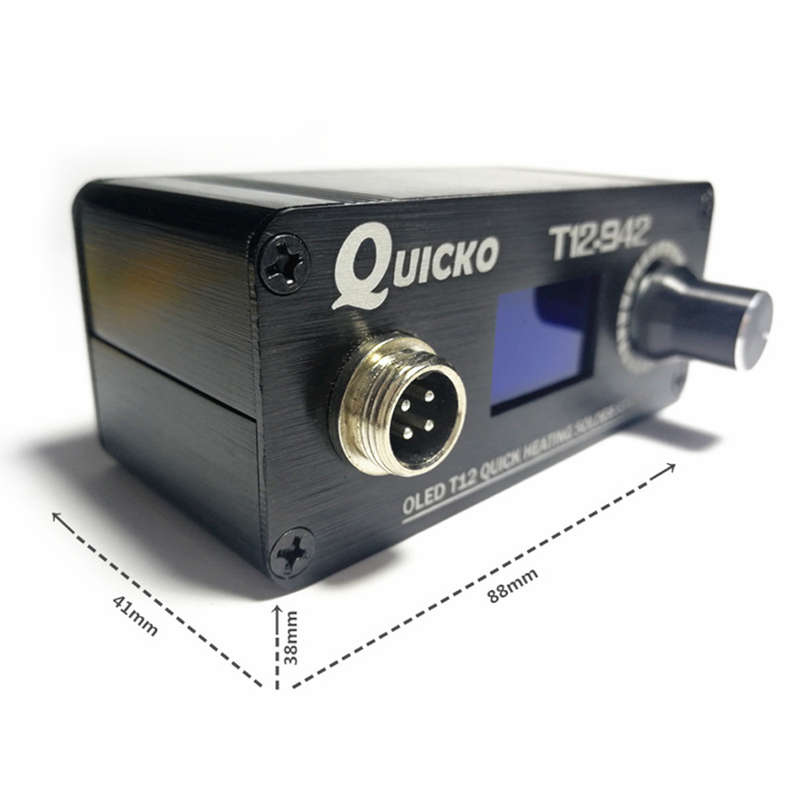

Size: 88mm*41mm*38mm
NOTE: Iron tip do not work high temperaturecontinuously, the tips will be damage easier. Solder melting point is 183ᆪC, lead-free solder melting point is 227ᆪC, the welding temperature is 300-380ᆪC.
380ᆪC is the temperature of the dividing line.
When the temperature is higher than 380ᆪC, iron head oxidation and loss is fast, affect thelife ofheating core. Higer than 380ᆪC, temperature display also will be beating, the higher the temperature, the greater the beating!
Recommended in the 300-380ᆪC for welding work, most of the work can be carried out, the temperature beating is normal.

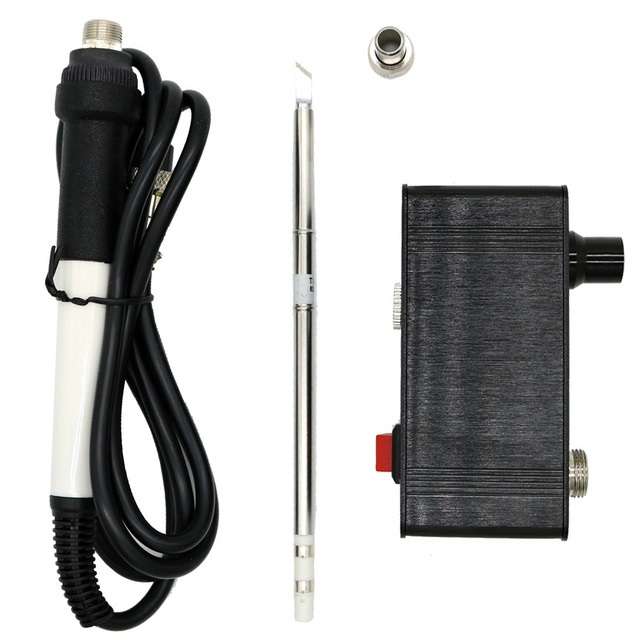

Package includeds : 1 x Mini OLED T12 Controller
1 x T12 Iron Handle
1 x T12-K Soldering Iron
Details pictures :
