Quido ETH 0/2: 2 outputs and thermometer
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Gardens, Cape Town
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Monday, 27 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 4 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
PAP-QUIDO-ETH0/2
Bob Shop ID
608765683
The outputs are relays with a changeover contact. The thermometer can be connected to a cable of up to 15 meters and is able to measure temperatures in the range from -55 to +125 C.
Thermometers, plexi covers, metal boxes or DIN rail holder ban be found in Quido accessories.
Features of I/O module
- Connects directly to LAN (10/100 Ethernet)
- Controlled by: Web interface, e-mail, Spinel, MODBUS TCP, SNMP, HTTP GET, XML and Wix applications
- E-mail notification (without SSL/TLS, port 25).
- For developers: Spinel.NET library on Github with examples in C# (documentation only in Czech)
- LED indication of power, communication, and the status of inputs and outputs.

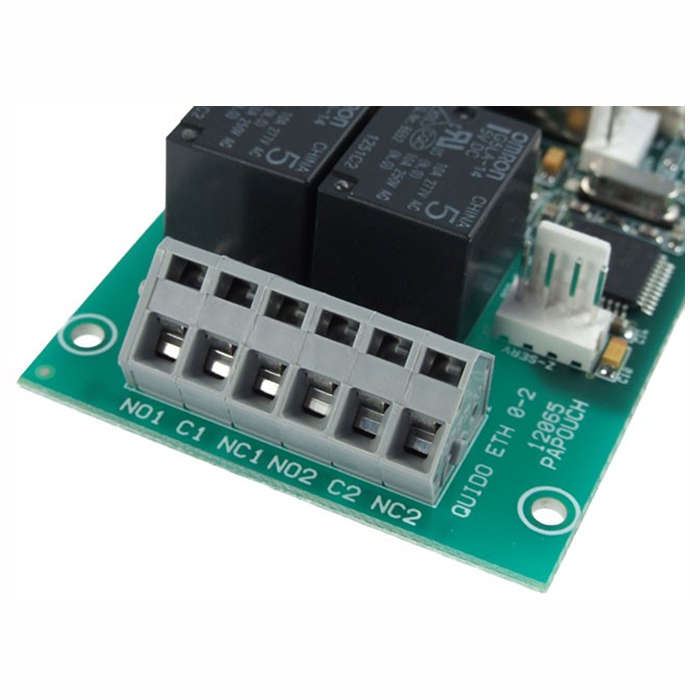

- 2 Outputs = changeover contact relays.
- 1 Thermometer with a measuring range of -55 to +125 C.
- Automatically sends information about changes on the inputs.
- Autonomous control based on the measured temperature.
- Counts pulses on the inputs.
- Operating temperature of electronics -20 to +60 C.
- External power supply 8 to 30 V.
- Plastic lever for Wago 236 terminals (standard part of delivery).
Basic functions and block diagram of Quido ETH module
Basic functions of I/O module
- Control of output relays with a changeover contact
- Configuration of the outputs for a defined period
- Thermometer: measuring range of -55 to +125 C
- Temperature monitoring (the relay closes when temperature changes, closes for a predefined period when a specified temperature has been reached; sends an e-mail or HTTP GET)
The main page of Quido ETH 8/8
Practical applications
- Easy control and sending and notifications of the current status via HTTP GET queries.
- Do you want to monitor electricity consumption directly from your PC? How to connect Quido and electricity meter.
- Do you need to control an appliance with 230 V power supply? How to switch 230 V with Quido and relay.
- What information can you get from XML in Quido?
- Are you looking for a feature that is currently not available? Feel free to contact us and Quido module can be tailored according your needs!
Configuration via web interface (example from Quido ETH 8/8)
