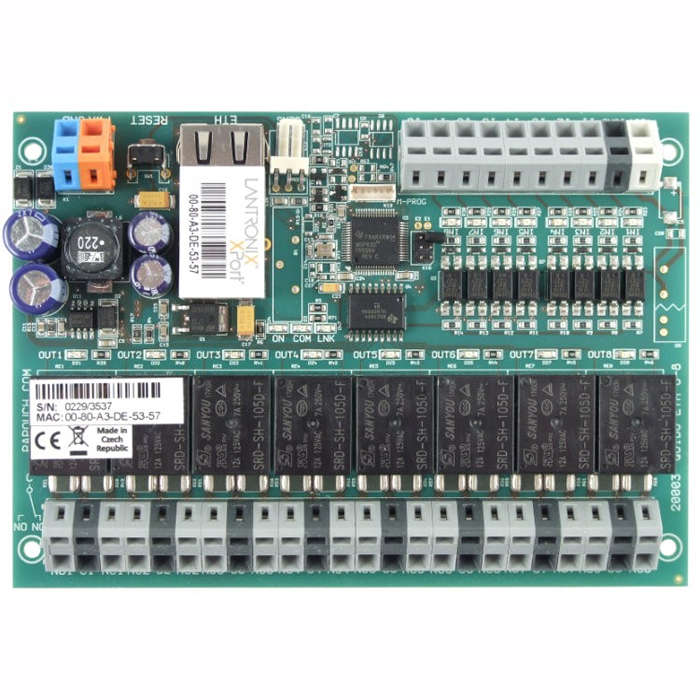

Quido ETH 8/8: 8 inputs, 8 outputs and thermometer

Inputs are designed to connect voltage or contacts can distinguish two states (0 and 1). The outputs are relays with a changeover contact. The thermometer can be connected to a cable of up to 15 meters and is able to measure temperatures in the range from -55 to +125 °C.

Thermometers, plexi covers, metal boxes or DIN rail holder ban be found in Quido accessories.

Features of I/O module

• Connects directly to LAN (10/100 Ethernet)
• Controlled by: Web interface, e-mail, Spinel, MODBUS TCP, SNMP, HTTP GET, XML and Wix applications
• E-mail notification (without SSL/TLS, port 25).
• For developers: Spinel.NET library on Github with examples in C# (documentation only in Czech)
• LED indication of power, communication, and the status of inputs and outputs.

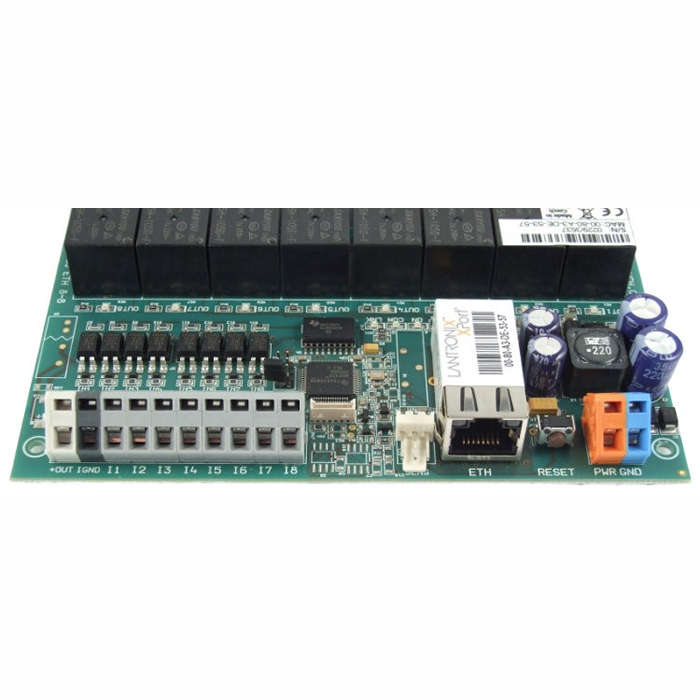

• 8 Galvanically isolated digital inputs for voltage or contacts.

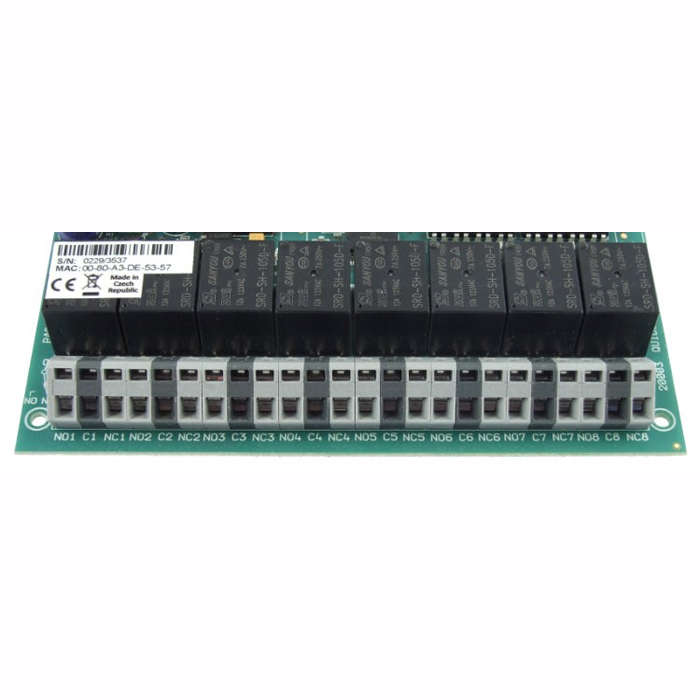

• 8 Outputs = changeover contact relays.
• 1 Thermometer with a measuring range of -55 to +125 °C.
• Automatically sends information about changes on the inputs.
• Autonomous control based on the measured temperature.
• Counts pulses on the inputs.
• Operating temperature of electronics -20 to +60 °C.
• External power supply 8 to 30 V.
• Plastic lever for Wago 236 terminals (standard part of delivery).

Basic functions and block diagram of Quido ETH module

Basic functions of I/O module

• Reads the current status of inputs
• Automatically sends information (email, HTTP GET, ...) about changes on the inputs.
• Counts pulses on the inputs or changes in the status of the input (for first 60 inputs)
• Control of output relays with a changeover contact
• Configuration of the outputs for a defined period
• Thermometer: measuring range of -55 to +125 °C
• Temperature monitoring (the relay closes when temperature changes, closes for a predefined period when a specified temperature has been reached; sends an e-mail or HTTP GET)

The main page of Quido ETH 8/8

Practical applications

• Easy control and sending and notifications of the current status via HTTP GET queries.
• Do you want to monitor electricity consumption directly from your PC? How to connect Quido and electricity meter.
• Do you need to control an appliance with 230 V power supply? How to switch 230 V with Quido and relay.
• What information can you get from XML in Quido?
• Are you looking for a feature that is currently not available? Feel free to contact us and Quido module can be tailored according your needs!

Configuration via web interface (example from Quido ETH 8/8)
