SELECTED OPTION:
TYPE: D
Features: - Uses advanced electronic components and high-quality wear-resistant shaft - The material is high temperature resistant material, which can work in 100a water. - Long working life, continuous power-on working time of more than 10,000 hours. - It is smooth operation, high efficiency, good performance. - Small volume, low noise, safety and environmental protection.
Specifications: Name: Water Pump

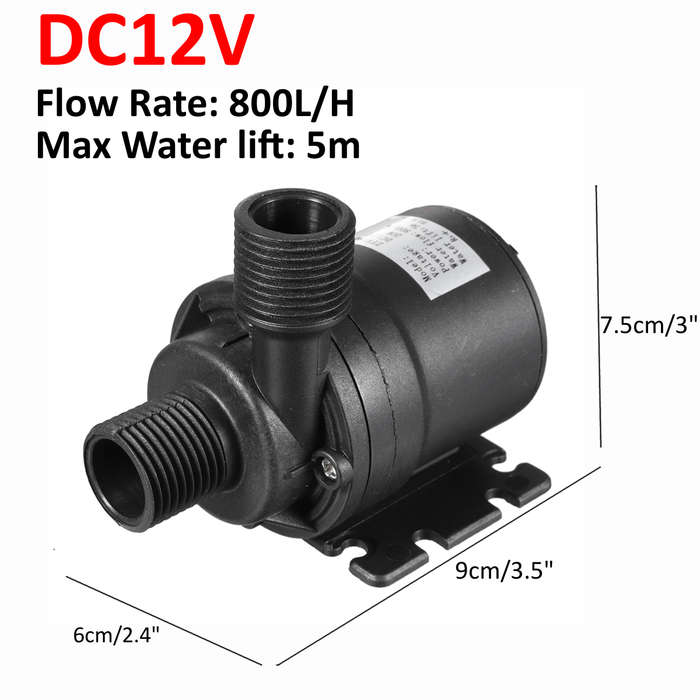

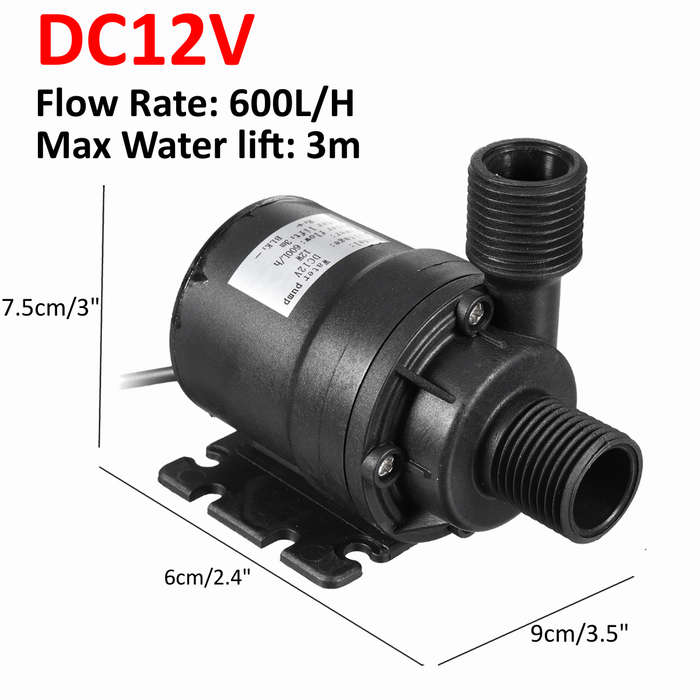

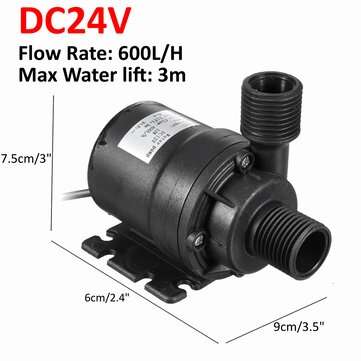

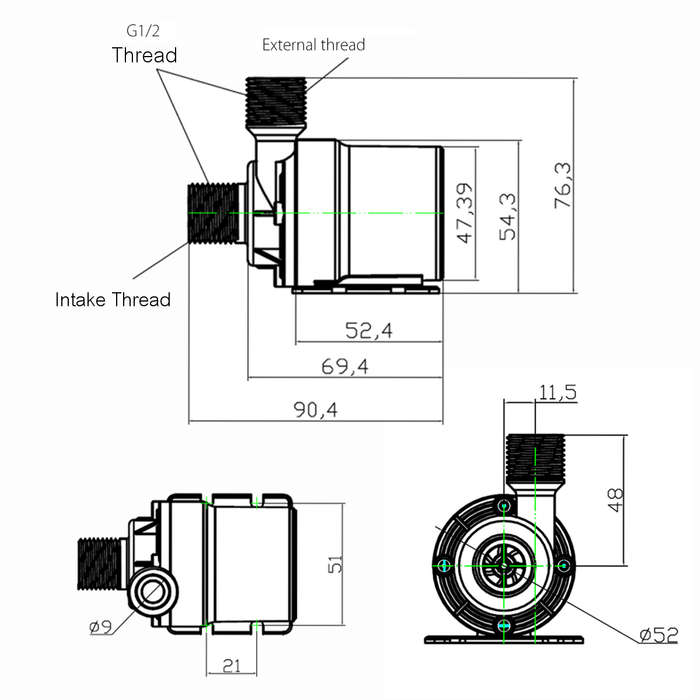

Type: A:DC12V 3m600L/h, B:DC12V 5m800L/h, C:DC24V 5m800L/h, D:DC24V 3m600L/h(optional) Materials: ABS Inlet/Outlet: 4mm Threaded port Voltage: DC12V/DC24V Power: 12W/20W Maximum Rated Current: 1600MA Flow Rate: 600L/h, 800L/h Max Water lift: 3m, 5m Working environment temperature: 1-60 a Max circulating water temperature: 100ﾣC Noise: < 40 db (water) under operation Drive mode: electromagnetic Conveying medium: hot water pump Pump shaft position: horizontal Impeller structure: open impeller Impeller suction method: single suction type Cable line: 50cm Sizes:About 9x6x7.5cm/3.5x2.4x3in
Package include: 1 x Brushless Motor Water Pump

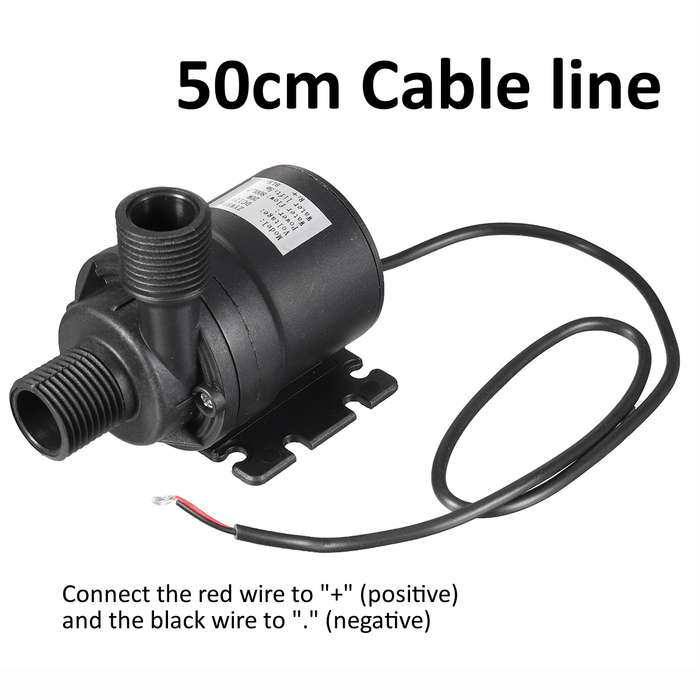

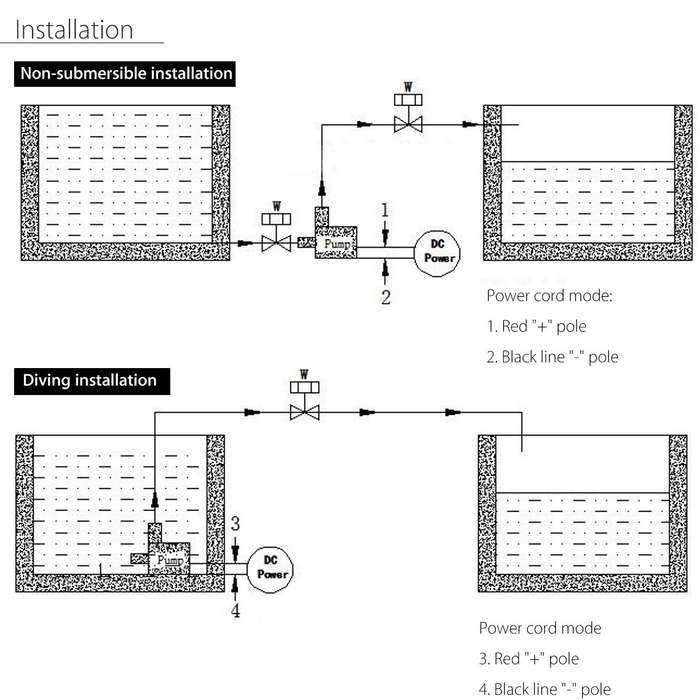

Usage: The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally. (Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)
Common Troubleshooting: 1.The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning). 2Tland use when the pump does not run water. (There is air in the pump or in the pipeline.)
Note: 1.Do not take the wrong pump positive and negative. 2.Prohibit not through the power converter will be connected directly to the 220V power supply pump. 3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium. 4.The pump is suitable for medium temperature 1 a -60 a.
More Details:
