QX-Motor QAA 2814 600KV 900KV 1250KV 3-6S Brushless Motor CCW For X-UAV Talon RC Airp... (KV: 600KV)

SELECTED OPTION:
KV: 600KV

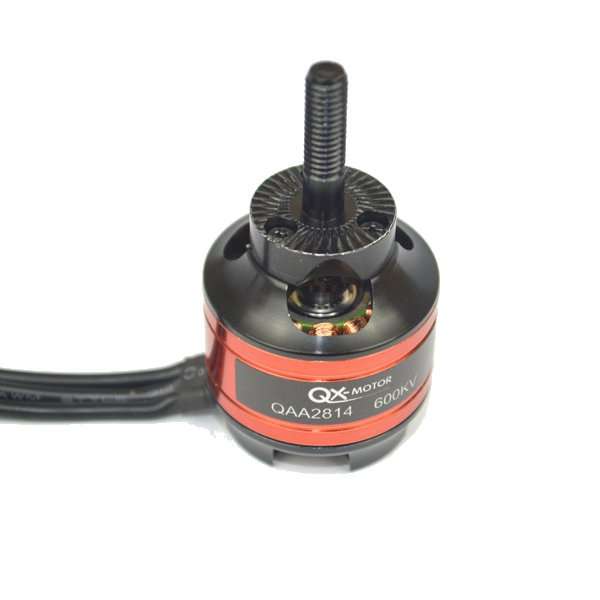

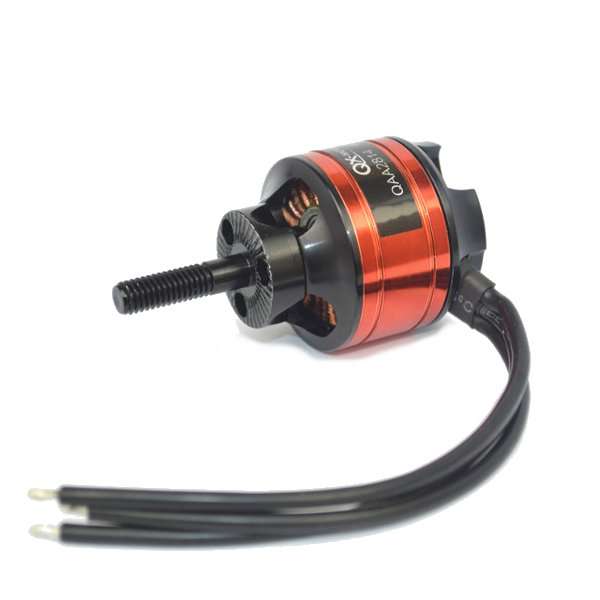

QX-Motor QAA2814 600KV/900KV/1250KV 3-6S Brushless Motor CCW For RC Airplane Multicopter

Description:
Brand Name: QX-Motor
Item Name:?QAA2814
KV: 600KV,900KV,1250KV?(optional)
Motor Type: CCW
Configuration: 12N14P

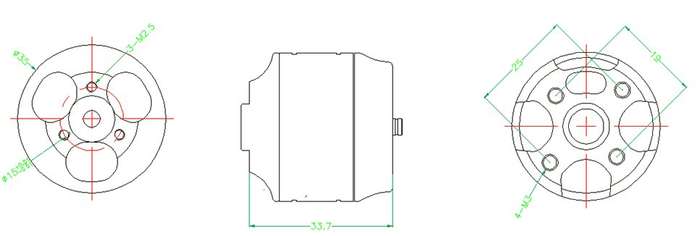

Shaft Diameter: 28mm Stator Length: 14mm Dimension: 35*36mm Weight: 92g Idle Current: 0.6A@10.0V No. of Cell: 3-6S Max. Continuous Power: 600W Max. Continuous Current: 25A

Test Data:

KV	Prop	Volt(V)	Amps(A)	Watts(W)	Thrust(g)	Thrust(oz)	Efficiency(g/w)	Efficiency(oz/w)
600KV	APC11*47	22.2	4.4	98	750	26.46	7.68	0.27
		22.2	8.6	191	1250	44.09	6.55	0.23
		22.2	10.0	222	1380	48.68	6.22	0.22
		22.2	12.0	266	1560	55.03	5.86	0.21
		22.2	16.4	364	1900	67.02	5.22	0.18
		22.2	19.5	433	2180	76.90	5.04	0.18
900KV	EMP12*6	11	27.3	300	1980	69.84	6.59	0.23
1250KV	APC9*6	11	31.0	341	1550	54.67	4.55	0.16
		14.8	48.6	719	2400	84.66	3.34	0.12

Features:
Waterproof design,can work in rain and safe operation in 150a?? environment.
Suitable for RC Airplane and multicopters,especially X-UAV Talon.

Package Included:

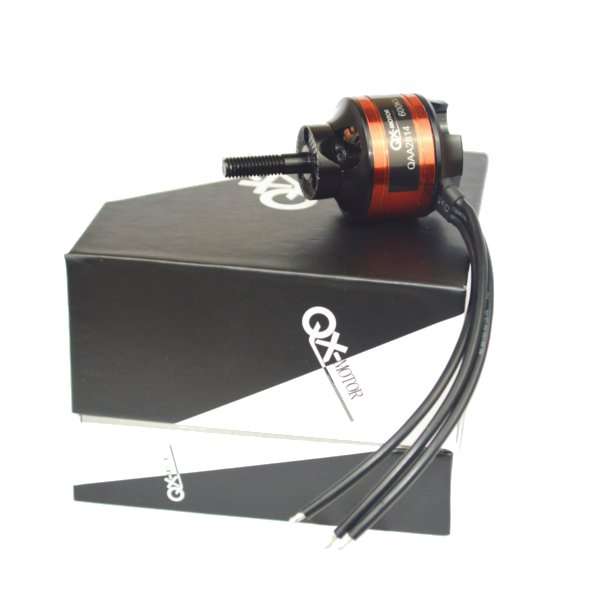

1x QX-Motor QAA2814 Motor
?
