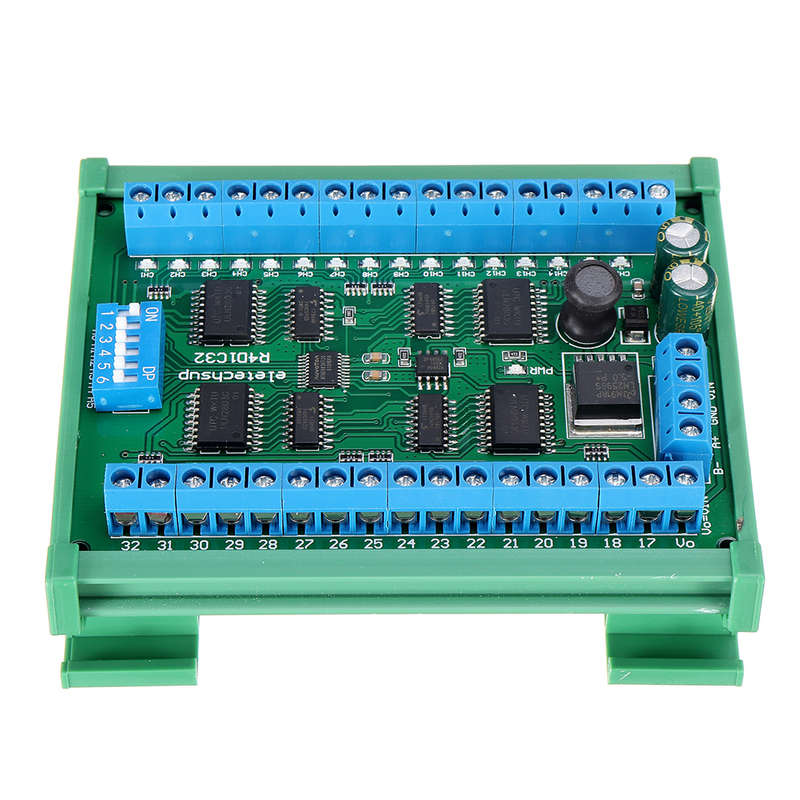

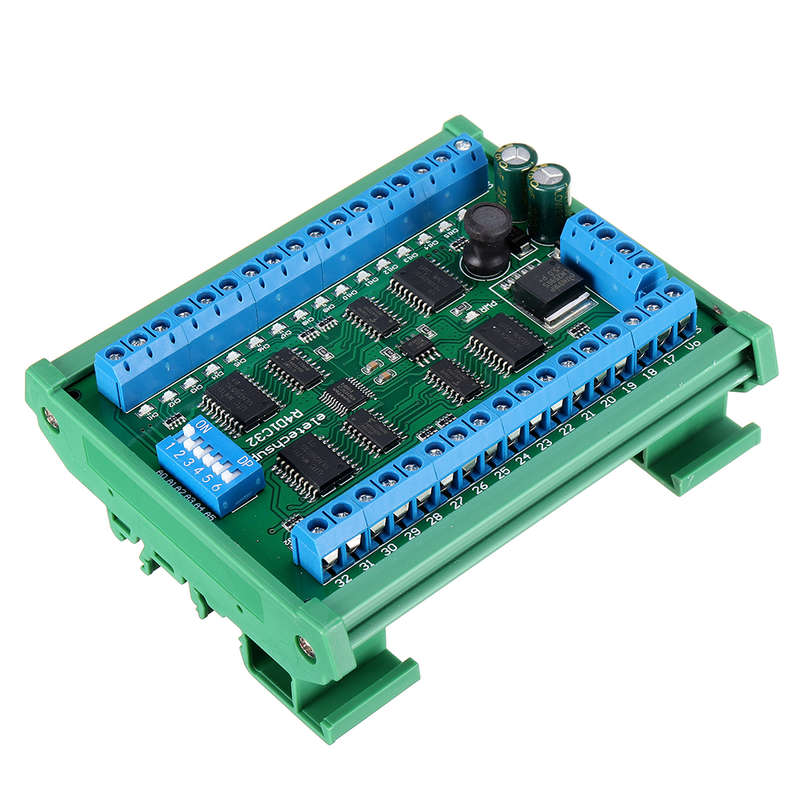

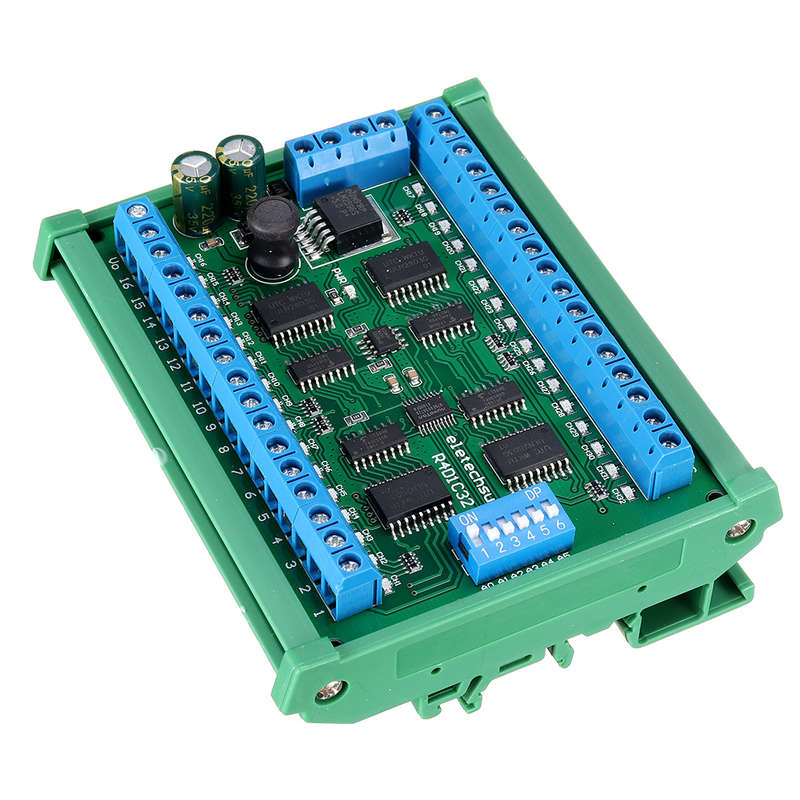

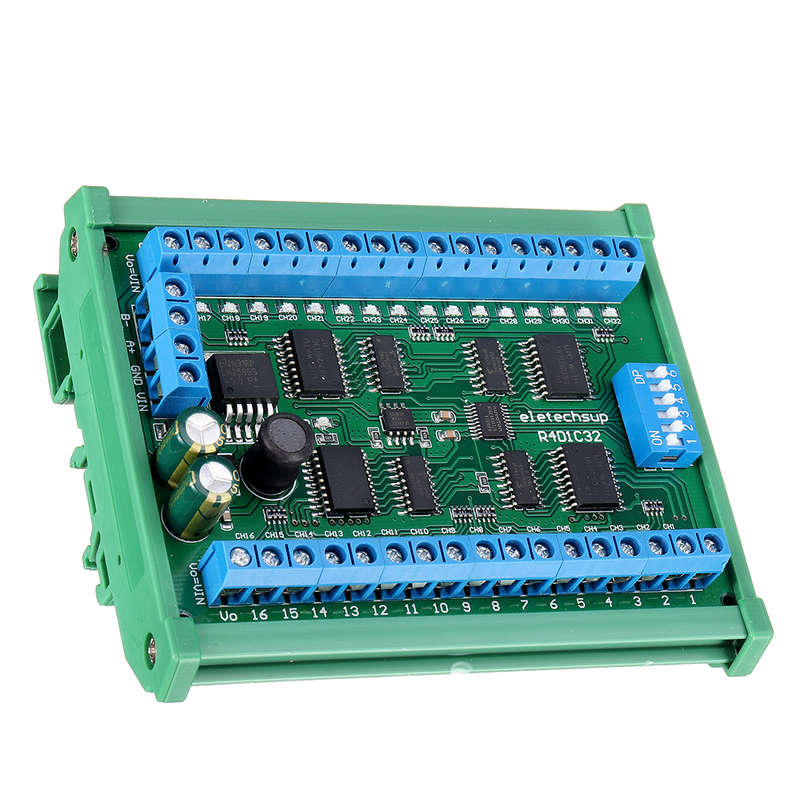

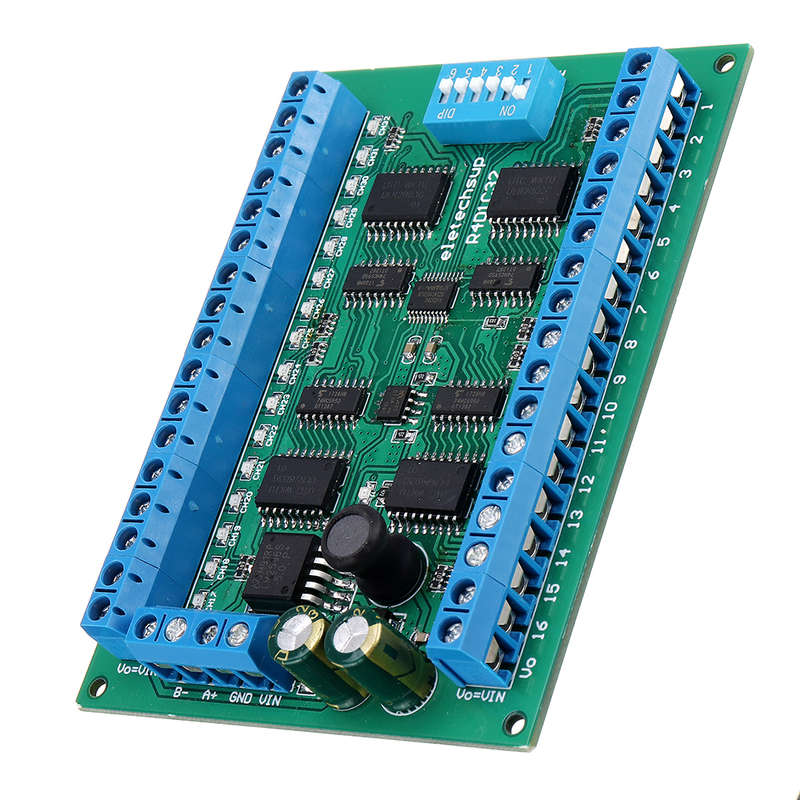

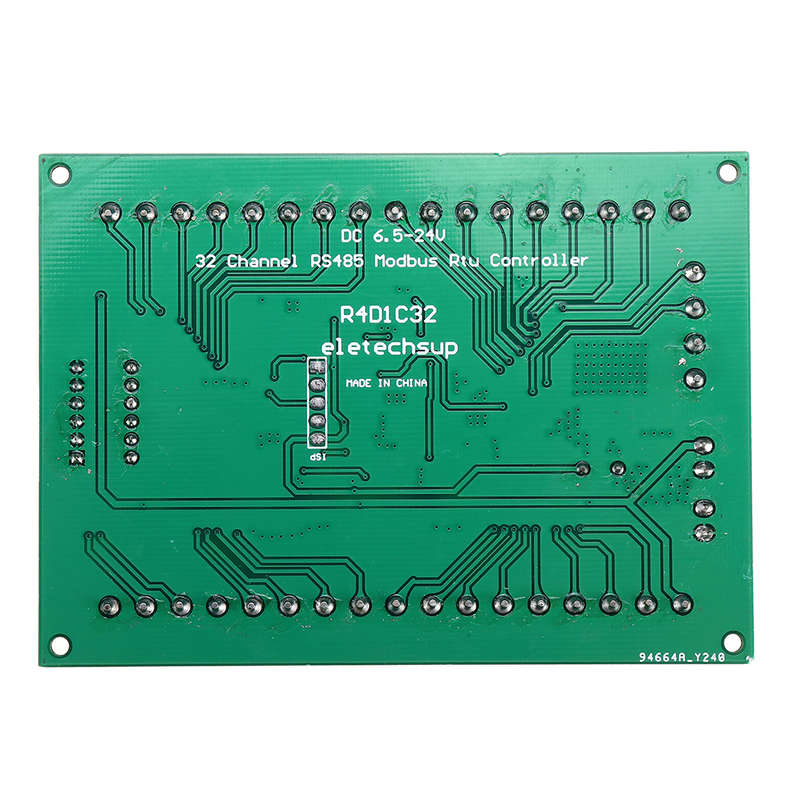

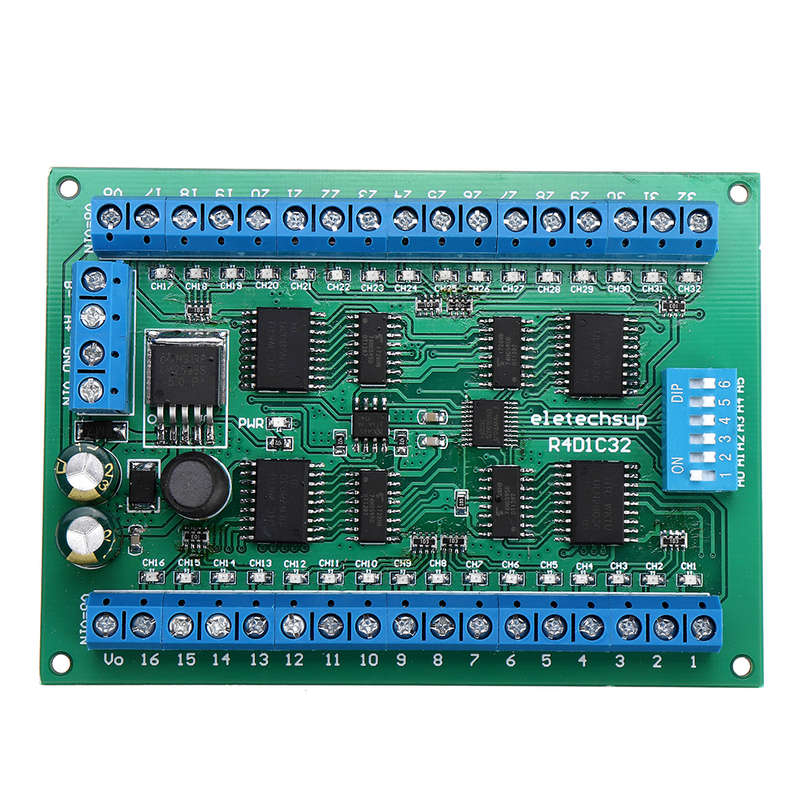

R4D1C32 12V 32 Channel DIN Rail RS485 Controller Modbus RTU Protocol Remot... (TYPE: WITHDINRAILBOX)

20 available / new

R719.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643388199

SELECTED OPTION:
TYPE: WITHDINRAILBOX

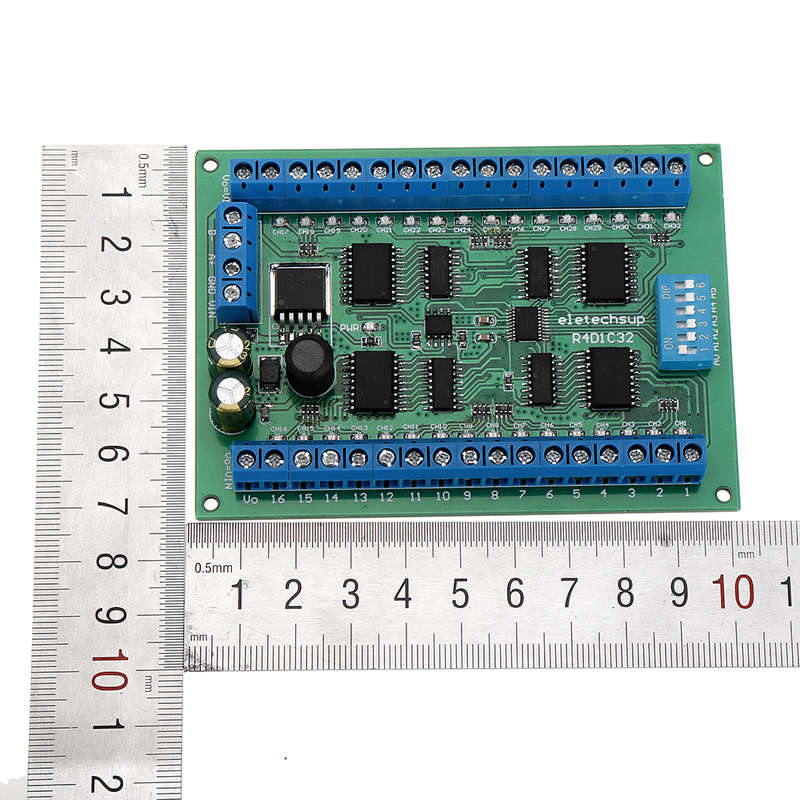

Specification: 1. Working voltage: DC 6.5-30V (9V 12V 24V) 2. Standby current All channels are closed) 5MA,All channels open 57MA. 3. ``Open`` ``Close`` ``Momentary`` ``Self-locking`` ``Interlock`` ``Delay`` 6 Commands 4. MODBUS RTU command 5. Under the ``Delay`` command ,the maximum delay is 255 seconds 6. MODBUS commands can be made serial HyperTerminal (serial assistant) OR ``Modbus Poll`` Enter; 7. Under the MODBUS command mode, it can support up to 64 devices in parallel 8. The default baud rate is 9600BPS. The baud rate can be modified by instructions: 1200 2400 4800 9600 19200BPS 9. Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box) 10. Weight: 65g(Only PCB Board);144g(with Din Rail Box) 11. Maximum load: The maximum drive current of each channel is 300MA

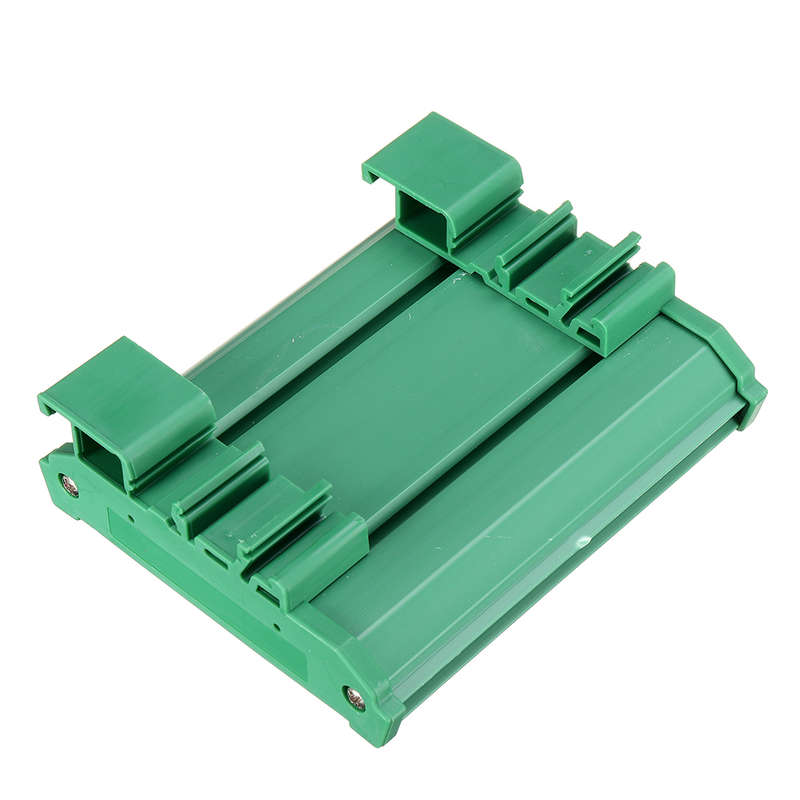

DIN rail Box :
Product model: UM72 Color: green Width: suitable for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: suitable for 100 mm PCB boards Net weight: 72g Installation: DIN35 and C45 rail
Package included:
1 x Controller Board
