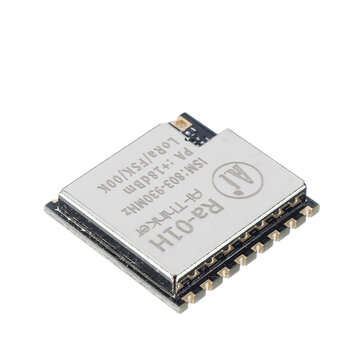

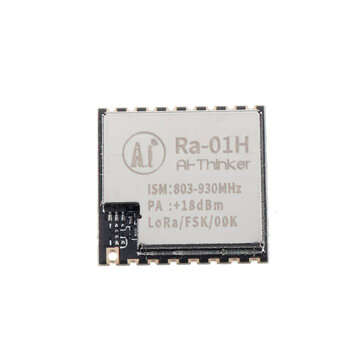

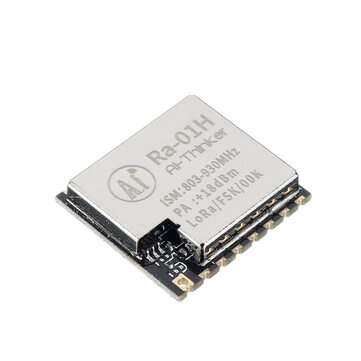

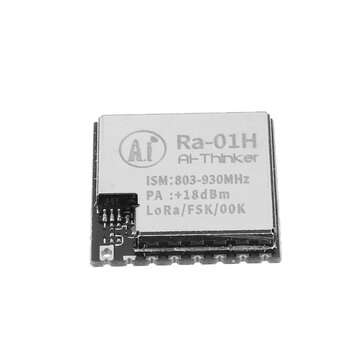

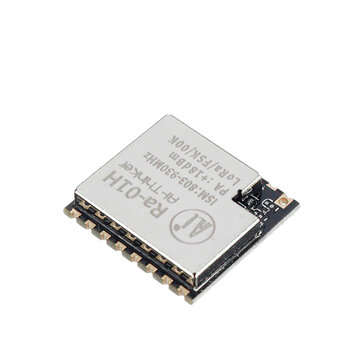

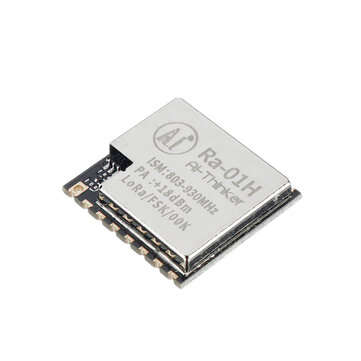

Ra-01H SX1276 LoRa Ra-01 Wifi Wireless Module Spread Spectrum Wireless Communication 868MHz Wireless

Description:
The Ra-01H mainly uses LoRaTM remote modem for ultra long-distance spread spectrum communication, which has strong anti-interference ability and can minimize current consumption. At the same time, the module is compatible with FSK remote modulation and demodulation, which solves the problem that traditional design solution cannot simultaneously The problem of distance, anti-interference and power consumption.
Parameter:
Support interface: SPI interface Programmable bit rate: up to 300kbps Spectrum range: 803- 930MHz Antenna form: spring antenna Working voltage: 3.3V Average operating current (unit: mA): 868MHz: TX: 103mA Rx: 12.15mA Standby: 1.6mA915MHZ: TX: 105mA Rx: 12. 15mA Standby: 1. 5mA Working temperature: -30 ?ﾣC ~ 85 ?ﾣC Storage temperature: -40C~ 90?ﾣC, <90%RH
Package included:
1 x?Wireless Module
