Racerstar F405 WING NANO 168MHz STM32F405 ArduPilot/INAV Super Bluetooth Flight Controller Support Speedy Bee & QGroundControl for RC Airplane FPV Racing Drone

More and more players have the need for small fixed-wing FPV, which is easy to install, and needs to take into account a variety of flying styles, with easy set-up flight controller.?This F405 WING NANO flight control is specially designed for small aircraft.

Description:

Brand: Racerstar

Model: F405 Wing Nano

Item: Flight Controller

MCU: 168MHz STM32F405

IMU: MPU6000

Baro: BMP280?

OSD: AT7456E?

Blackbox: MicroSD

Bluetooth: ArduPilot(QGroundcontrol),password:1234

Bluetooth: INAV(SpeedyBee),No password required

VCP & 5x UARTs(UART1 is connected to Bluetooth module, Baud rate57600)

2x Motors, 6x Servos outputs

2x I2C

3x LEDs for FC STATUS (Blue, green) and 3.3V indicator(Red)

Built in inverter for SBUS input (UART2-RX)

PPM/UART Shared: UART2-RX

SoftSerial on TX2 pad

Battery Voltage Sensor: 1:10 (Scale 1100)

Current Senor: 104A, 3.3V ADC, Scale 317

WS2812 Led Strip: Yes

Beeper: Yes

RSSI: Yes

USB Type-C&DFU: External module, more convenient debugging

Version: Standard Version (With ESKY Eagles mounting adapter), Advanced Version (Standard Version+GPS) (Optional)

FC Firmware

INAV: F405SE?

ArduPilot(ChiBiOS): F405WING?

PDB

Input voltage range: 6~30V (2~6S LiPo)?

2x ESC power pads

BEC 5V output

Continuous current: 2 Amps

BEC Vx output

Voltage adjustable, 5V Default, 6V or 7.2V via jumper

Continuous current: 4 Amps

BEC 3.3V output

Continuous current: 200mA

Mounting: 20 x 20mm, ?|2mm

Dimensions: 26 x 32 x 15.5 mm

Weight: 13g

Features:

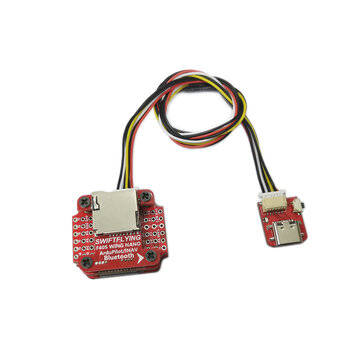

* Using the (Type-C) USB plug-in board, which can be plugged in front and back. You can extend the USB and BOOT to the outside of the aircraft equipment compartment. For many models, it is more convenient to debug and replace the firmware without removing the wings.

* Small size, full-featured, mainstream firmware of INAV and ArduPilot can be flashed, which is more suitable for small aircraft installation.

*?Using multi-protocol Bluetooth (Super Bluetooth) technology, the flight controller supports the connection of two APPs Speedy Bee and QGroundControl at the same time, can easily set the parameters of INAV and ArduPilot at?mobile phone.

Package Included:

1x?Racerstar F405 WING NANO 168MHz STM32F405 ArduPilot/INAV Super Bluetooth Flight Controller
