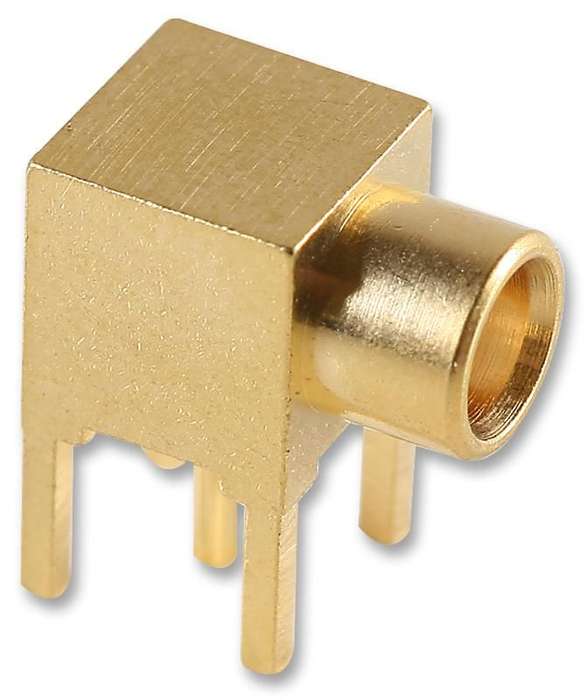

Radiall (R113665000) RF / Coaxial Connector, MCX Coaxial, Right Angle Jack

RF / Coaxial Connector, MCX Coaxial, Right Angle Jack, Through Hole Right Angle,50 ohmProduct OverviewThe R113665000 is a right angle MCX Jack Receptacle for PCB solder legs, withgold over nickel plated beryllium copper center contact, gold over nickel platedbrass body. This MCX series receptacle has PTFE insulation, PCB mounting andthrough hole termination. The MCX series connector utilizes the SMB serieselectrical line and features a particularly simple, compact and robustinterface. The MCX series is 30% smaller than the SMB. The MCX series connectorhelps to miniaturize equipment. It optimizes PCB layouts with its range ofmodels for PCBs including surface mount and press-fit receptacles.Subminiature coaxial connectorPush-pull snap-on matingComplies with specification CECC 22220-55 to 155°C Temperature rangeApplicationsAerospace, Defence, Military, WirelessProduct InformationConnector Type: MCX CoaxialConnector Body Style: Right Angle JackCoaxial Termination: Through Hole Right AngleImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 6GHzConnector Mounting: PCB MountProduct Range: -
