Radiall (R141410000) RF / Coaxial Connector, BNC Coaxial

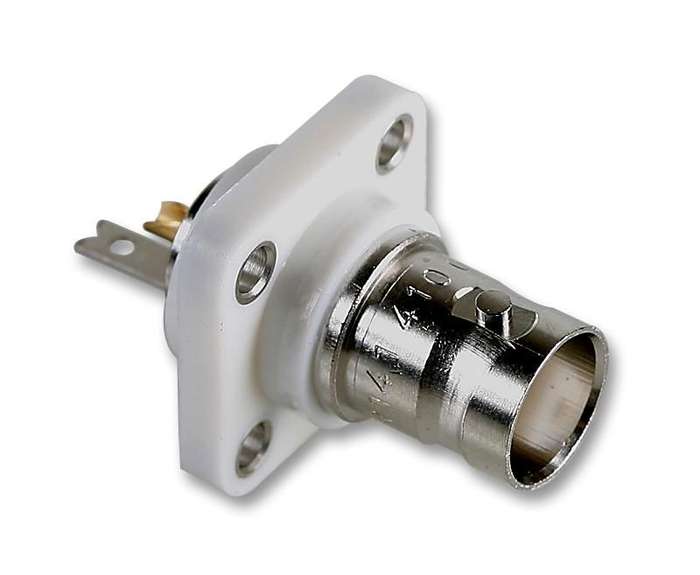

RF / Coaxial Connector, BNC Coaxial, Straight Flanged Jack, Solder, 50 ohm,Beryllium CopperProduct OverviewThe R141410000 is an insulated Square Flange BNC Jack Receptacle with gold overnickel plated beryllium copper center contact, nickel-plated brass body. ThisBNC series plug has PTFE insulation, panel mounting and solder termination. TheBNC connector is the most popular coaxial connector series in the world,featuring a two-pin bayonet coupling system for quick and reliable engagementand disengagement.Worldwide standardised coaxial connectorBayonet couplingProven strength and reliabilityGood RF performanceMeets MIL-C-39012/MIL STD 348-A/301, IEC 169-8, CECC 22120 and UTE-C-93564standards-65 to 165°C Temperature ratingApplicationsAerospace, Defence, Military, RF Communications, Test & Measurement,Communications & Networking, Industrial, Consumer ElectronicsProduct InformationConnector Type: BNC CoaxialConnector Body Style: Straight Flanged JackCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 4GHzConnector Mounting: Panel MountProduct Range: -
