Radio Shack Archer High-Output Infrared LED XC-880-A (vintage new part in old packaging)

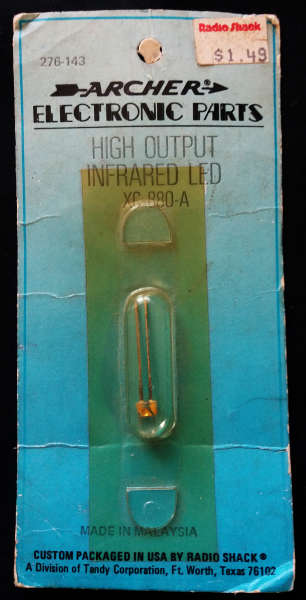

Radio Shack ARCHER Cat No. 276-143 High-Output Infrared LED XC-880-A

Made in Malaysia and packed in the USA by Radio Shack.

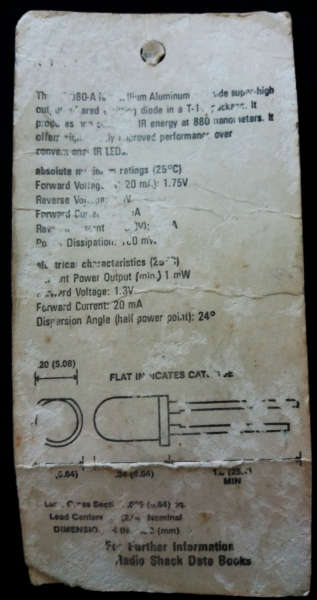

Part is still sealed in its original packaging which is well aged. The specs on the back of the

packet are no longer clearly legible but here is the details.

The XC-880-A is a Gallium Aluminum Arsenide superhigh output infrared emitting diode in a T 1 & 3/4 package.

It produces non-coherent, IR energy at 880 nano-meters. It offers significantly improved performance over conventional IR LEDs.

Absolute maximum ratings (25 C)

Forward Voltage (at 20mA): 1.75V

Reverse Voltage 3.0V

Forward Current: 100 mA

Reverse Current: 100 uA

Power Dissipation 150mW

Electrical characteristics  (25 C)

Radiant Power Output (min.) : 1 mW

Forward Voltage: 1.3V

Forward Current: 20 mA

Dispersion Angle ( half power point) : 24 C

Lead Cross Section .025 (0.64) sq.

Lead Centers .10 (2.54) Nominal

Dimensions in Inches (mm)
