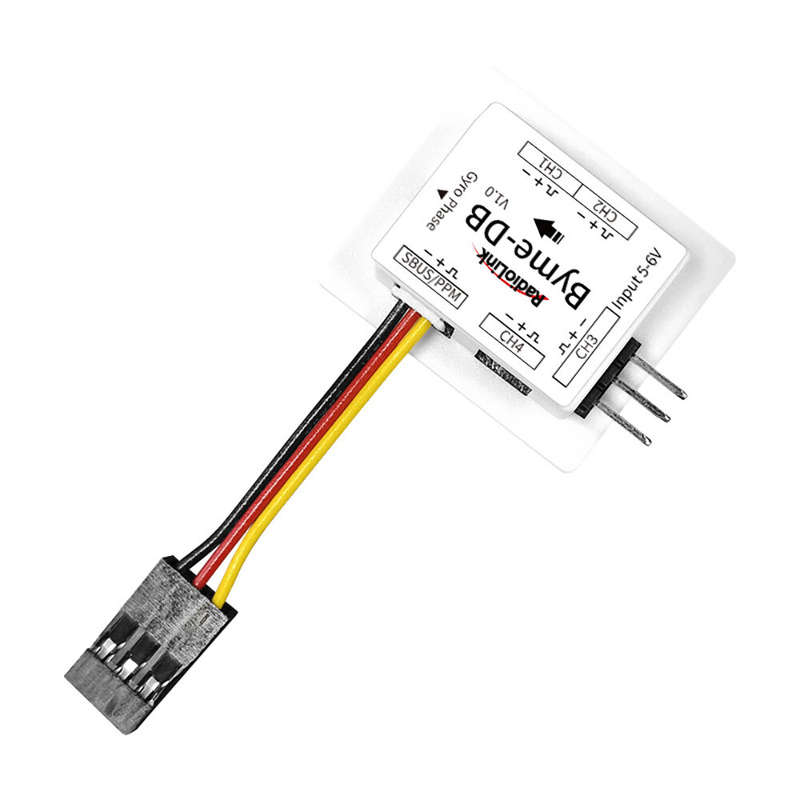

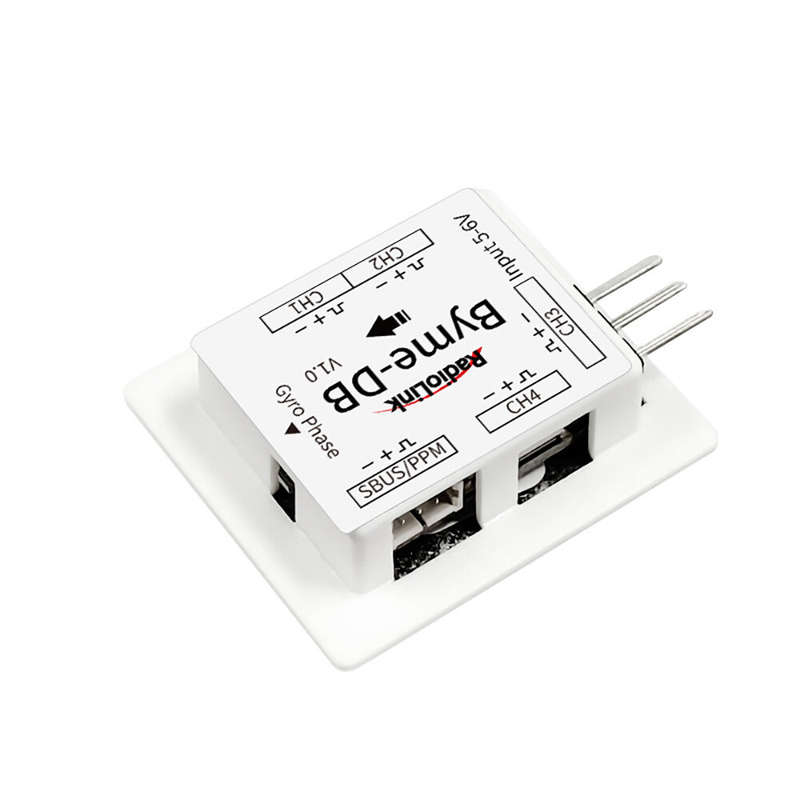

RadioLink Byme-DB Flight Controller Built-in Gyroscope for Delta Wing Micro Fixed Wing Paper Plane J

Specifications:

Brand Name: RadioLink

Item Name: Byme-DB

Dimension: 29*25.1*9.1mm (1.14'' x 0.99'' x 0.36'')

Weight (With wires): 3.6g(0.13oz)

Channel Quantity: 7 channels

Integrated Sensor: three-axis gyroscope and three-axis acceleration sensor

Signal Supported: SBUS/PPM

Input Voltage: 5-6V

Operating Current: 25±2mA

Flight Modes: Stabilize Mode, Gyro Mode, and Manual Mode

Channel for Flight Mode Switch: the fifth channel

Channel for Throttle Cut: the seventh channel

Models Compatible: Applicable to all model airplanes with mixed elevator/aileron controls including delta wing, paper plane, J10, traditional SU27 and the SU27 with rudder servo, F22

Transmitters Compatible: All the transmitters with SBUS/PPM signal output

Socket Specifications: CH1, CH2 and CH4 are 3P SH1.00 sockets; the receiver con
