RadioMaster - ER6GV 2.4ghz PWM ExpressLRS 6 Channel receiver with Vario Sensor

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.

Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 6 PWM Channels
Optimized ground up PCB design

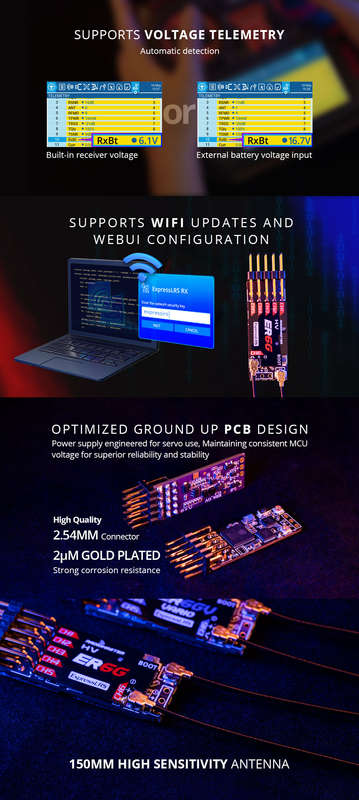

Automatically voltage telemetry of external battery voltage or built-in receiver voltage
ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector
Standard 15 cm High Sensitivity Antenna
For fixed-wing aircraft and gliders

Specification (ER6GV)
Item: ER6GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: maximum 50mw (LUA Adjustable)
Built-in high-precision air pressure sensor (Vario)
Battery voltage detection range: DC 3.0 - 26V
Weight: 5.0 grams
Dimensions: 42*13*8mm

Firmware:
Device Category: Radiomaster 2.4Ghz
Device: Radiomaster ER6G

Package Includes
1 * ER6GV 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire (Type-A)
2 * Heat-shrink tube
1 * ELRS- RX- SBUS wire
1 * User Card
