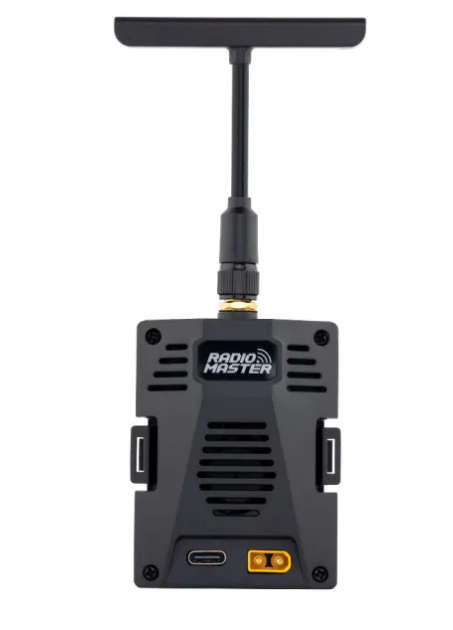

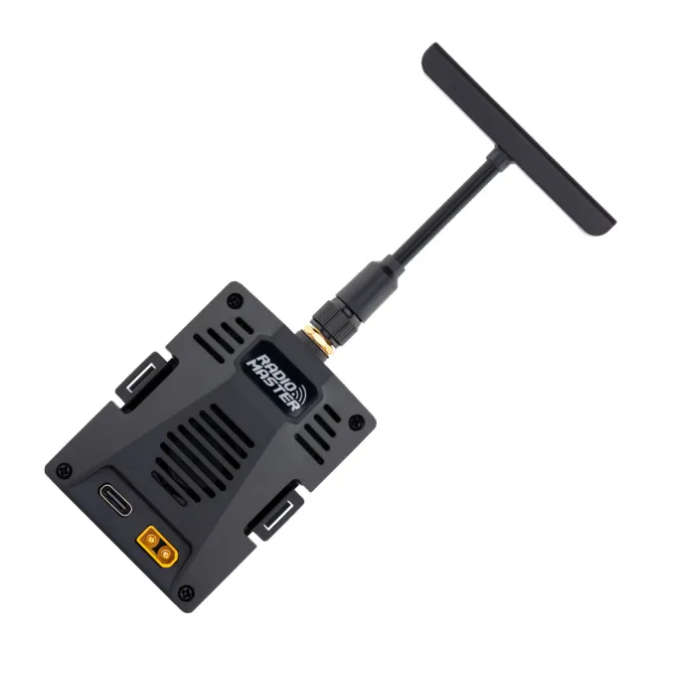

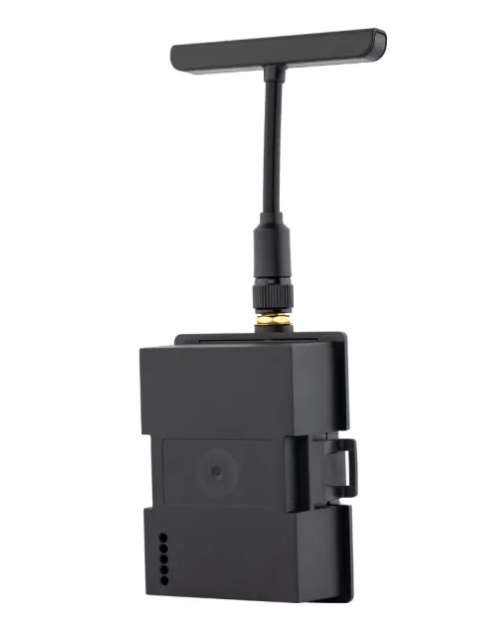

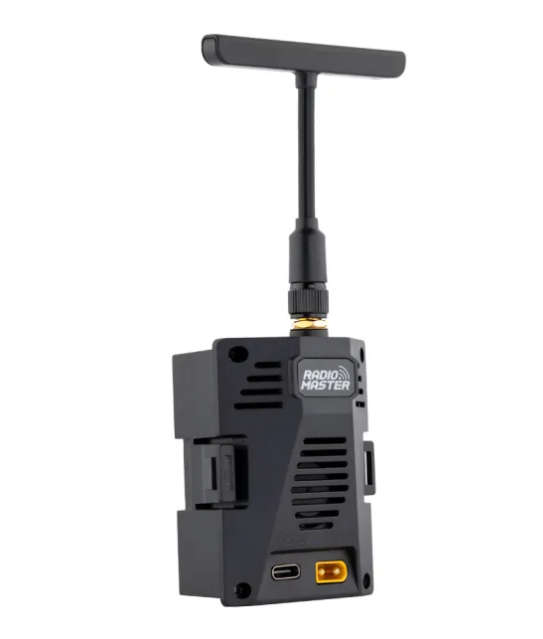

RadioMaster - Ranger Micro 2.4GHz ELRS Module STD INT

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring up to 1W output, F-1000Hz refresh rates and a high efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.  For more information on the Ranger series, please click here

Features

 High-efficiency cooling system
 Up to 1Watt Power output
 Wifi and Bluetooth support
 Packet rates up to F-1000Hz
 T-antenna included
 With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification

Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight:  50g (with antenna) / 40.5g (without antenna)

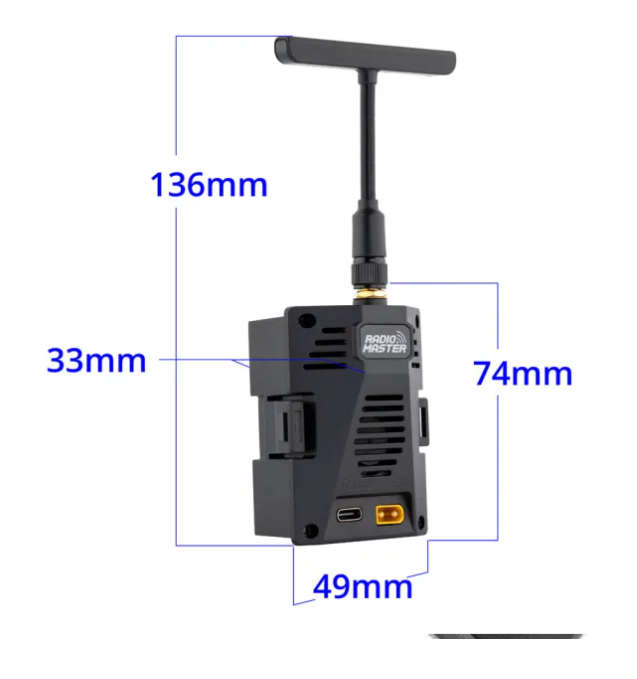

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
