Radiomaster Ranger Nano 2.4GHZ ExpressLRS ELRS RF Module 1Watt Power Output Support Wifi Bluetooth C

Radiomaster Ranger Nano 2.4GHZ ExpressLRS ELRS RF Module 1Watt Power Output Support Wifi Bluetooth Colling System for Zorro Radio Transmitter

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

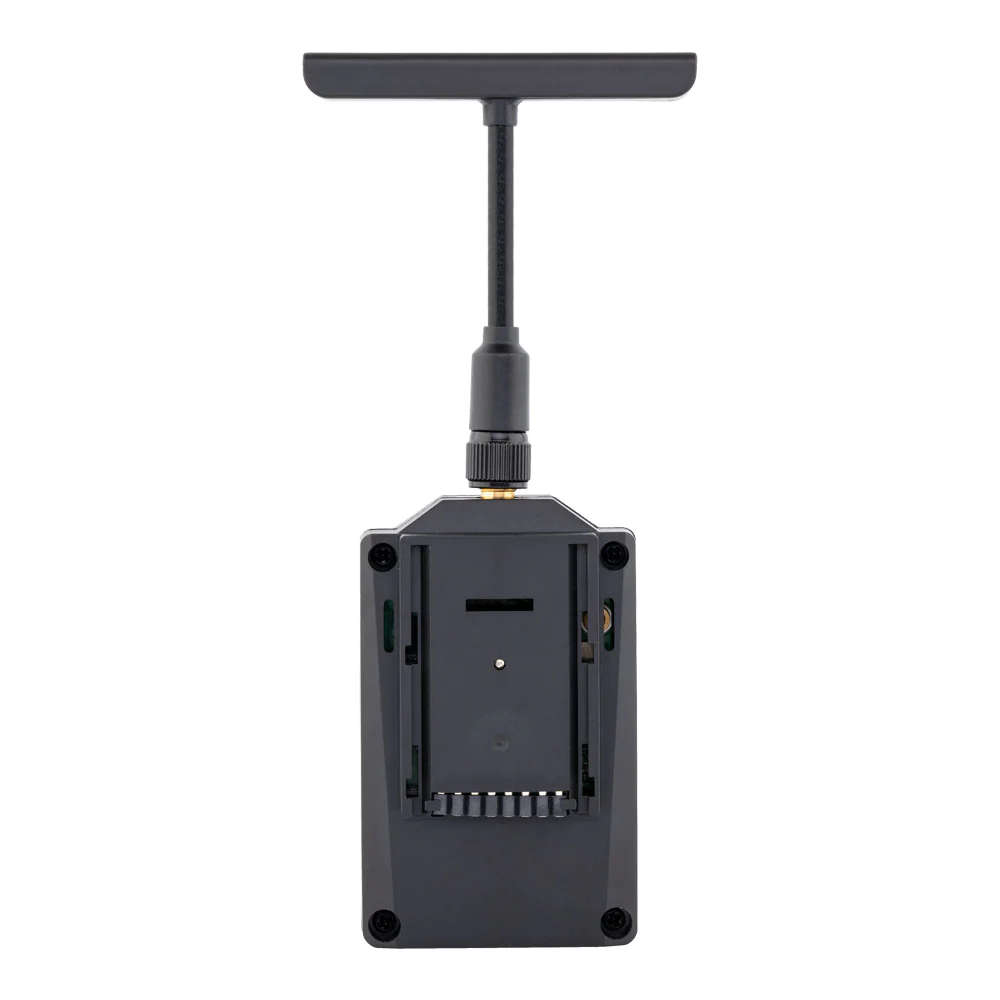

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Specification:

Brand: RadioMaster

Item: Ranger Nano Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux,as ESP backpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz - 2480 MHz

Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Wifi Support: Yes

Bluetooth support: Yes

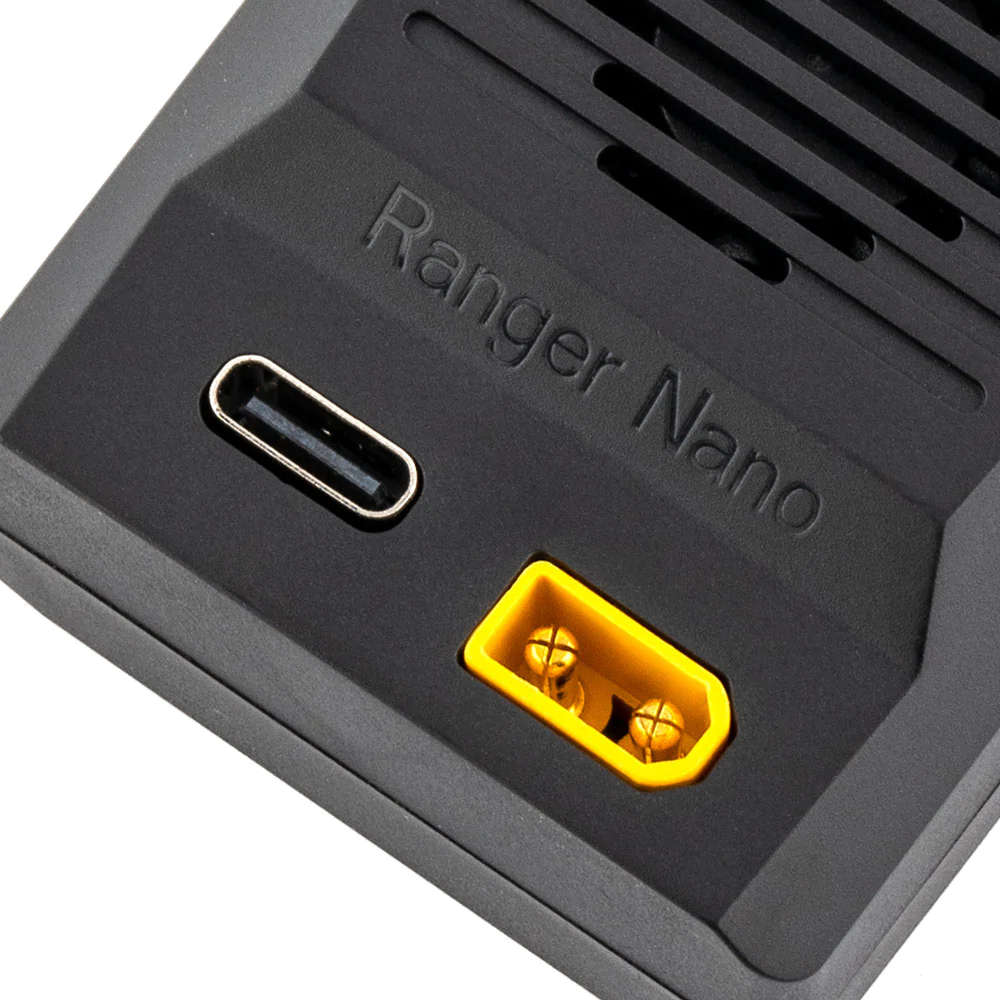

XT30 Power supply voltage: DC 6V - 16.8V

Weight: 48g (with antenna) / 39g (without antenna)

Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

 Features:

* High-efficiency cooling system.

* Wifi and Bluetooth support.

* Packet rates up to F-1000Hz.

* Up to 1Watt Power output.

* T-antenna included.

* With the Nano connector, support Zorro radio.

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules.

Package Included:

1 * Ranger Nano Module

1 * T Antenna
