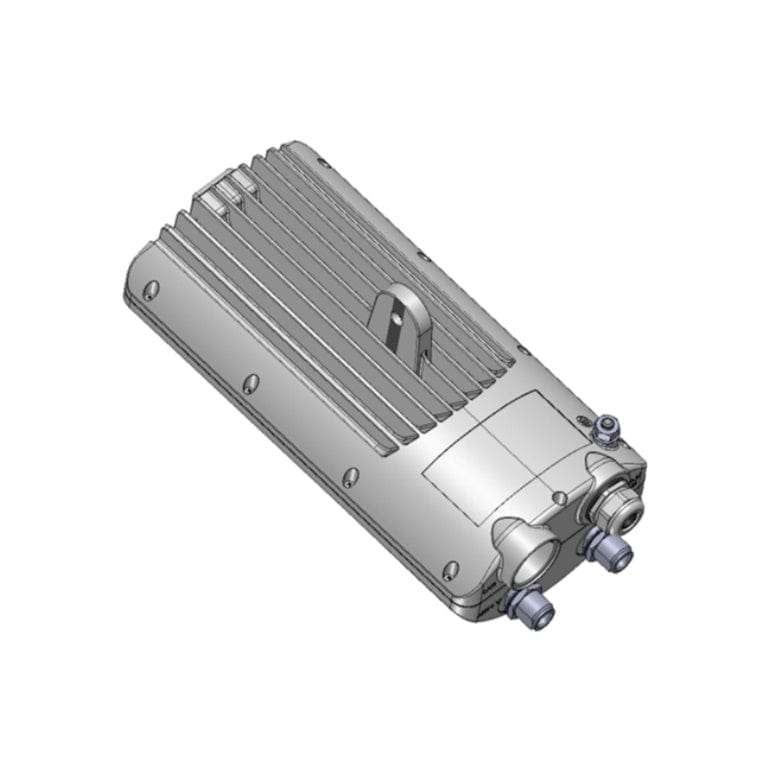

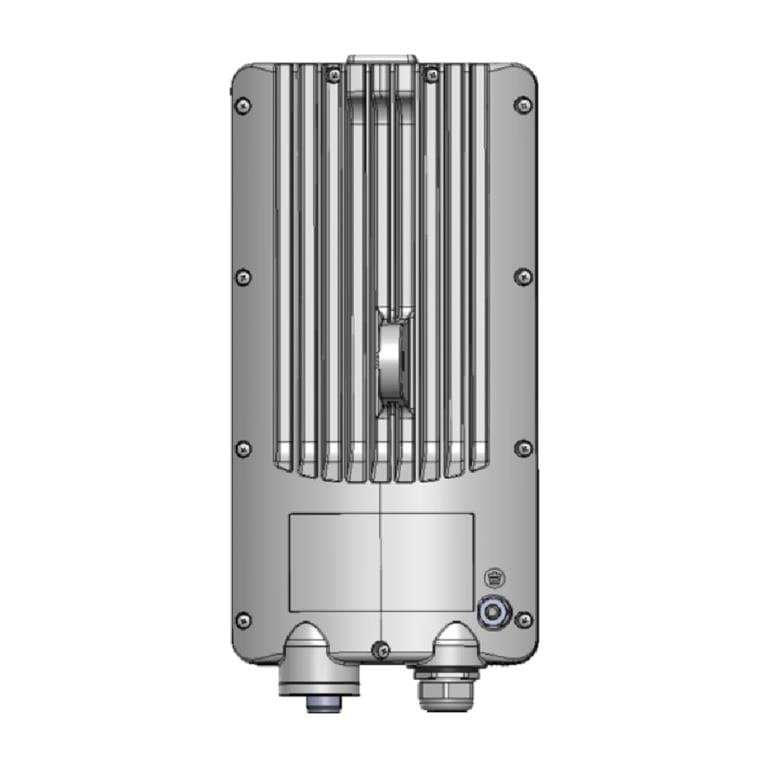

Radwin 2000 E Connectorised Point-to-Point Outdoor Radio Unit RW-2U50-E2MM
RADWIN 2000 E is a premium, ultra-capacity Point-toPoint (PtP) solution for backhaul, access and for connecting a wide variety of bandwidth demanding applications.
RADWIN 2000 E Point-to-Point is an outdoor radio that works in the 4.9 to 6GHz band and delivers up to 2.5Gbps. The radio ensures outstanding performance and the highest possible throughput in congested spectrum, using a field-proven air interface. The unit comes with an integrated antenna that assures best interference mitigation via remarkably low side lobe levels.
RADWIN 2000 E exceptionally powerful packet-switching performance facilitates high short packet traffic. It also leverages upon the industry-strong encryption scheme (AES 256), to ensure top level security. RADWIN 2000 E enables radio collocation using a built-in GPS, to save upon hub tower space when deployed in the hub site. IP 67 compliant, RADWIN 2000 E is extremely durable.
Product Highlights
- 4.9-6.0 GHz
- Up to 2.5Gbps - 160MHz, 1.2Gbps - 80MHz
- Up to 120 km / 75 miles
- 4096 QAM enabling 15.6 bps/Hz
- Dynamic channel bandwidth: 20-40-80-160MHz
- 8 queues for QoS
- Built in GPS for radio colocation
- More than 700K PPS
- AES 256 encryption
- 2.5GbE PoE, 1Gbps full-duplex SFP Interface
- High durability via IP 67 compliancy
- Connectorized units or Integrated antenna
Technical Specification
Product: Radwin 2000 E Connectorised Point-to-Point ODU Radio
Configuration
- Architecture: Outdoor unit with 2x N-Type connectors
- Wireless topology: Point to Point unit
- Data interfaces: 100/1000/2500Mbps Full Duplex RJ45 PoE, 1000Mbps Full Duplex SFP
- POE interface: Outdoor CAT-5e; Maximum POE cable length: 75m for 1000 & 2500 BaseT
Radio
- Max capacity: 2.5Gbps (Universal), 1.2Gbps (FCC) net aggregate throughput
- Range: Up to 120 km / 75 miles
- Frequency Range: 4.900 GHz — 6.06 GHz
- Antenna modes: MIMO 2x2, adaptive spatial multiplexing/diversity
- Max TX power: 26 dBm1 per chain
Mechanical
- Dimension Connectorized: 258 x 125 x 107 mm
- Weight Connectorized: 1.2 Kg
Power
- Power consumption: Up to 30W
- Power feeding: Power feeding over CAT5E PoE cable
- POE input range: 42.5—57.0 V. standard 802.3AT
Environmental
- Enclosure protection: IP 67 per EN/IEC 60529, NEMA Type 4/4X Enclosure
- MTBF: >1,200,000 hours (Telcordia SR332 -25°C)
- Lightning protection: DC Grounded enclosure
- Wind resistance: 180kmh / 112 mph
