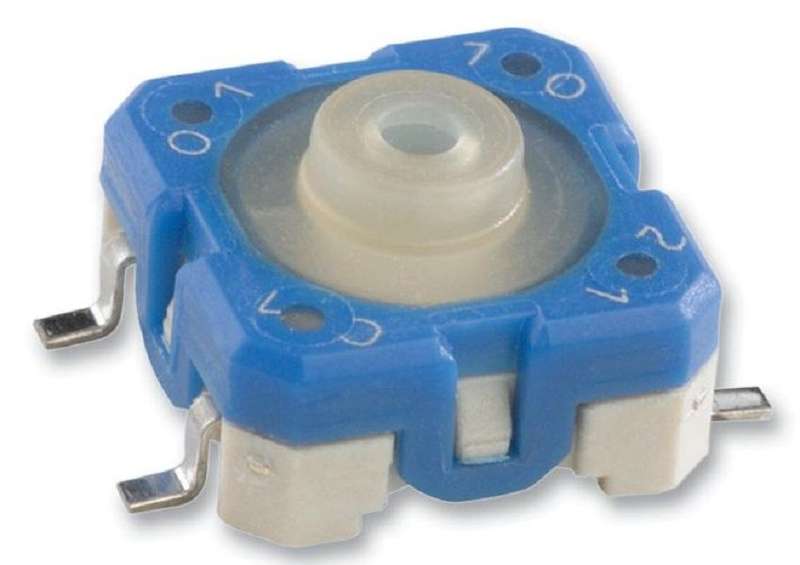

Rafi (1.14.100.503/0000) Tactile Switch, RACON 8, Top Actuated

Tactile Switch, RACON 8, Top Actuated, Surface Mount, Round Button, 330 gf,100mA at 42VDCProduct InformationSwitch Terminals: SolderProduct Range: RACON 8Actuator Orientation: Top ActuatedSwitch Mounting: Surface MountActuator Style: Round ButtonContact Current Max: 100mAActuating Force: 330gfContact Voltage DC Nom: 42VContact Rating: 100mA at 42VDCOperating Force: 3.3NSwitch Dimensions (L x W): 8.4mm x 8.4mmIP Rating: -Illumination: Non IlluminatedProduct OverviewThe 1.14.100.503/0000 from Rafi is a RACON 8 tactile switch in SMD gullwingpackage. This short travel switch with sealed contact system has a distinctivekey click and extremely high switching reliability. This switch can be arrangedas single keys, in rows or key blocks.SPST-NO contact configurationSnap action contactOperating temperature range from -40°C to +90°CMaximum rated current is 100mAMaximum rated voltage is 42VMaximum rated power is 1WSuitable for most common soldering methodsUL 94 HB flammability ratedOperating force is 3.3NDimensions is 8mm x 8mmApplicationsIndustrial, Power Management, Automation & Process Control, Portable Devices,Automotive
