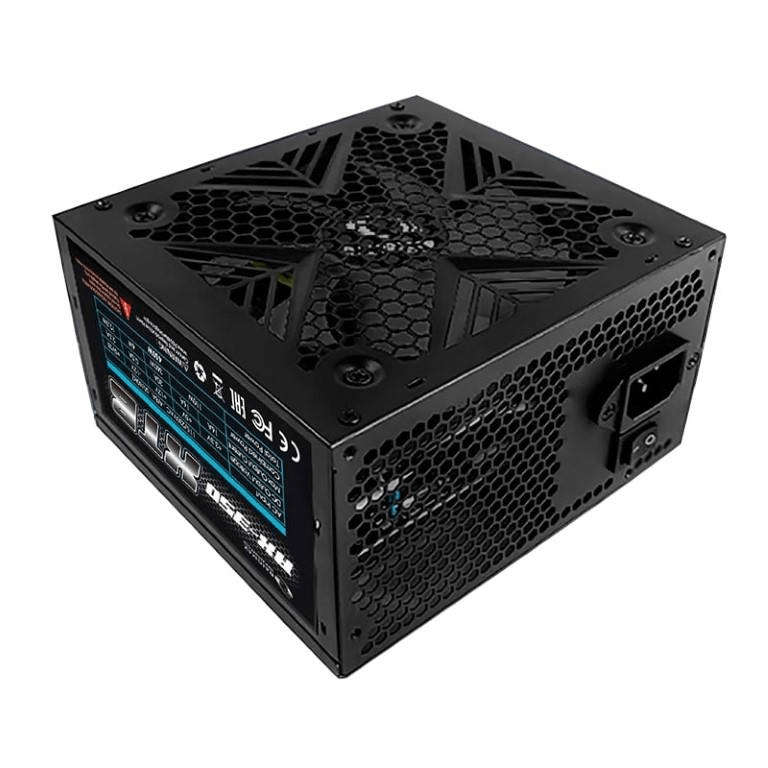

Raidmax RX-350XT XT-Series 300W Non-Modular Power Supply

Raidmax RX-350XT XT-Series 300W Non-Modular Power Supply

The Raidmax XT-Series 350W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.

Features:

• Single +12V rail output for higher power usage
• C6/C7 power-saving mode on Intel Haswell CPU
• Supports Intel ATX12V V2.3
• Up to 2 SATA connectors for multiple HDDs/SSDs
• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Short Circuit Protection (SCP)
• Honeycomb ventilation design for optimal heat dissipation
• Superior cooling performance with a Raidmax silent 120mm fan

Specifications:

• Total Power: 350W
• AC Input: 230VAC, 4A, 50/60Hz
• Protective Features: OVP, OPP, SCP
• Dimensions: 15 x 14 x 8.6 cm

DC Output Voltage:

• +3.3V: 15A — 110W
• +5V: 14A — 110w
• +12V: 22A — 264W
• -12V: 0.5A — 6W
• +5VSB: 2.5A — 12.5W

Connectors:

• M/B 20+4 PINS: 1
• CPU 4+4 PINS: 1
• PCI-E 6+2 PINS: 0
• PCI-E 6 PINS: 0
• SATA: 2
• Molex 4 PINS: 2

In the Box:

• Raidmax XT-Series 350W Non-Modular PSU — Black x1
