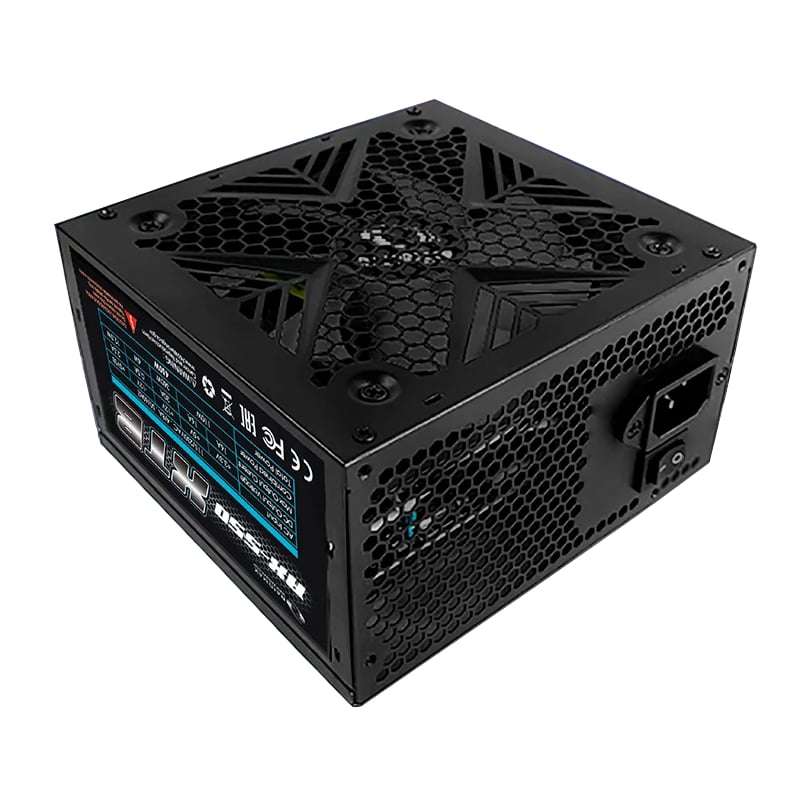

Raidmax RX-550XT XT-Series 550W Non-Modular Power Supply

The Raidmax XT-Series 550W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.

FEATURES:

• Single +12V rail output for higher power usage
• C6/C7 power-saving mode on Intel Haswell CPU
• Supports Intel ATX12V V2.3
• Up to four SATA connectors for multiple HDDs/SSDs
• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Short Circuit Protection (SCP)
• Honeycomb ventilation design for optimal heat dissipation
• Superior cooling performance with a Raidmax silent 120mm fan

SPECIFICATIONS:

• Total Power: 550W
• AC Input: 115/230VAC, 4/8A, 50/60Hz
• DC Output Voltage:
  • +3.3V: 18A - 110W
  • +5V: 17A - 110w
  • +12V: 38A - 456W
  • -12V: 0.5A - 6W
  • +5VSB: 2.5A - 12.5W
• Connectors:
  • M/B 20+4 PINS: 1
  • CPU 4+4 PINS: 1
  • PCI-E 6+2 PINS: 1
  • PCI-E 6 PINS: 1
  • SATA: 4
  • Molex 4 PINS: 2
• Protective Features: OVP, OPP, SCP
• Dimensions: 15 x 14 x 8.6 cm

What's In The Box:

• Raidmax XT-Series 550W Non-Modular PSU Black x1
