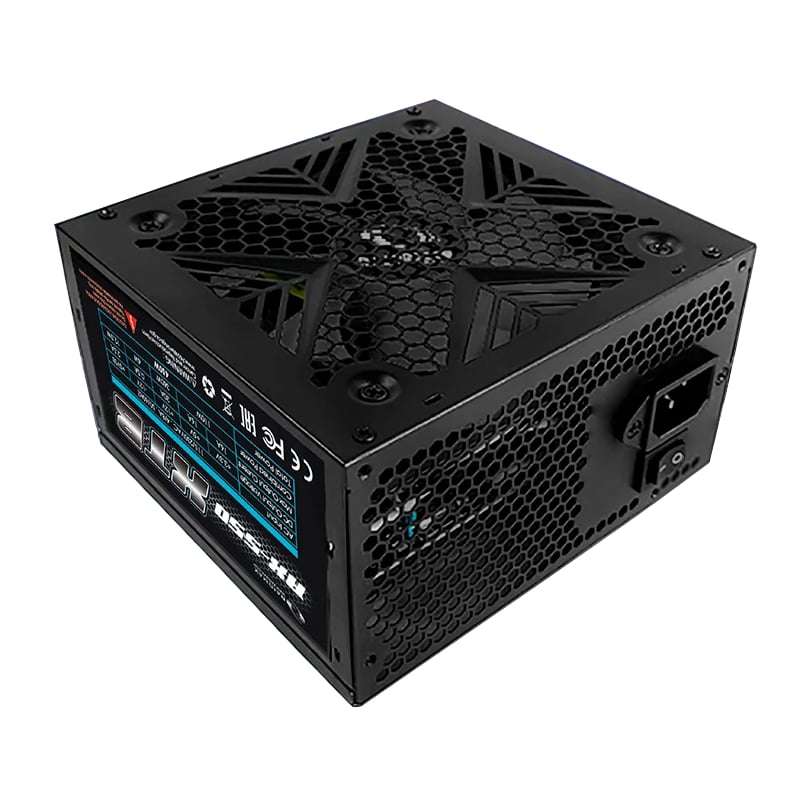

Raidmax RX-550XT XT-Series 550W Non-Modular Power Supply

The Raidmax XT-Series 550W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.

FEATURES:

Single +12V rail output for higher power usage

C6/C7 power-saving mode on Intel Haswell CPU

Supports Intel ATX12V V2.3

Up to four SATA connectors for multiple HDDs/SSDs

Over Voltage Protection (OVP)

Over Power Protection (OPP)

Short Circuit Protection (SCP)

Honeycomb ventilation design for optimal heat dissipation

Superior cooling performance with a Raidmax silent 120mm fan

SPECIFICATIONS:

Total Power: 550W

AC Input: 115/230VAC, 4/8A, 50/60Hz

DC Output Voltage:

+3.3V: 18A 110W

+5V: 17A 110w

+12V: 38A 456W

-12V: 0.5A 6W

+5VSB: 2.5A 12.5W

Connectors:

M/B 20+4 PINS: 1

CPU 4+4 PINS: 1

PCI-E 6+2 PINS: 1

PCI-E 6 PINS: 1

SATA: 4

Molex 4 PINS: 2

Protective Features: OVP, OPP, SCP

Dimensions: 15 x 14 x 8.6 cm

Unboxed item - item is a returned product - new & unused.

It is tested and in 100% working order.

Only power supply - no power cable and no screws supplied.

Actual Pictures:
