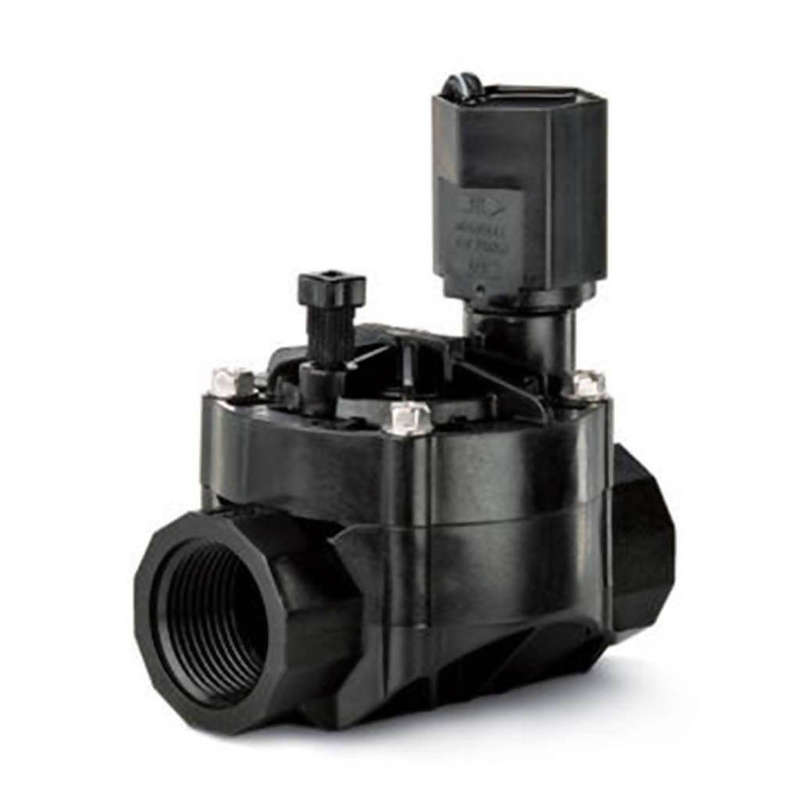

RAIN BIRD 100-HV-NPT Inline Sprinkler Valve, 1 Inch, NPT Thread

The RAIN BIRD 100-HV-NPT Inline Sprinkler Valve's compact design makes it easier to install and allows you to put more valves in a single valve box & the heavy-duty construction and fewer screws ensure simplified maintenance.

• External & internal manual bleed allows quick & easy flushing of the system & spray-free operation
• Glass-filled polypropylene construction - for added durability
• Eccentric diaphragm ensures smooth closing & less water hammer
• Buna-N diaphragm with self-cleaning 90-mesh (200micron) pilot water filter & stainless steel spring ensure superior performance in all conditions
• Captive multi-drive screws provide hassle-free valve maintenance

Rain Bird Valves are well known in the industry as one of the most reliable residential valves on the market. Built for high performance & reliability, the perfect residential valve choice. Rain Bird® HV valves install quickly, service easily, and deliver the reliable performance you can count on.

Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.

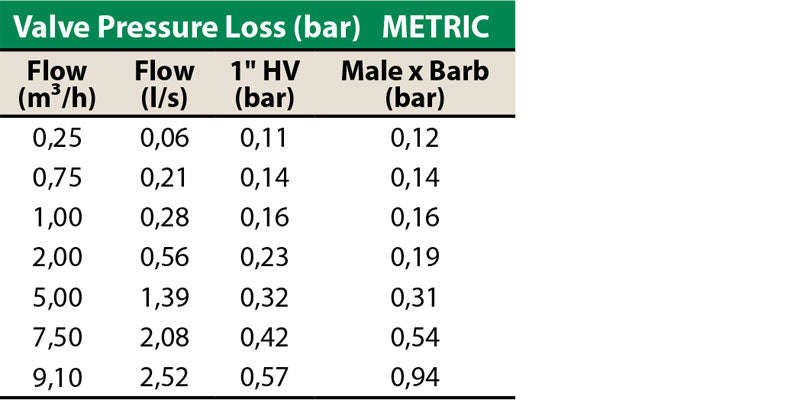

HV Series Valve Performance Chart:

 Operating Range:

• Pressure: 15 - 150psi (1.0 - 10.3bar)
• Flow: 0.05 - 6.82m/h; 0.01 - 1.89l/s (0.2 - 30gpm)
• Operating temperatures: Water temperature up to 43C (110F); ambient temperature up to 52C (125F)

Product specifications:

• Model: 100-HV-NPT = 25cm (1in) HV Series inline sprinkler valve - female x female threaded
• 24VAC 50/60Hz (cycles/sec.) solenoid
• Inrush current: 0.290A at 60Hz
• Holding current: 0.091A at 60Hz
• Coil resistance: 70-85Ohms (40F - 110F)

Dimensions:

• Height: 11.7cm (4.62in)
• Length: 11.2cm (4.4in)
• Width: 7.9cm (3.1in)

Recommendations:

• Rain Bird recommends flow rates that result in discharge velocities in the supply line not to exceed 2.3m/s (7.5ft/sec) in order to reduce the effects of water hammer.
• Rain Bird residential valves cannot be used with PRS pressure regulating modules.
• Not recommended for use with two-wire systems.
