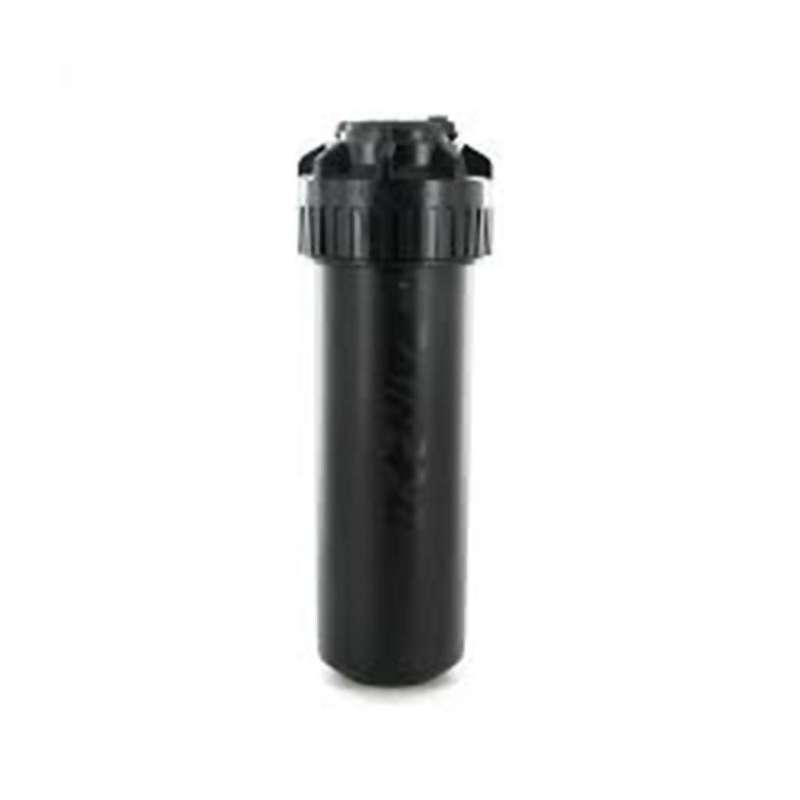

RAIN BIRD 5004PC Rotor Sprinkler with 100mm Pop-up, NPT, Inch, Adjustable Part Circle Arc

The RAIN BIRD 5004PC Rotor Sprinkler with Adjustable Part Circle Arc is durable and reliable, perfect for residential and commercial applications.

• 10cm (4in) pop-up rotor, with adjustable 40 - 360 part circle arc with reverse function
• Equipped with a heavy-duty case & slip clutch - for quick & easy left edge setting
• Internal parts are protected from debris with a self-flushing, tapered stem & integrated triple-blade multi-function wiper seal
• Includes 8 Rain Curtain nozzles that provide large droplets for superior wind-resistance, effective close-in watering & even distribution across the entire radius
• Quick & easy top-adjust arc adjustment using a flat-blade screwdriver

Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. Designed for even coverage and enduring reliability by combining the industrys only Triple-Blade Wiper Seal with unrivalled Rain Curtain nozzles.

Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.

Dimensions:

• Pop-up height: 10.2cm (4in)
• Overall body height: 4in: 18.5cm (7in)
• Exposed surface diameter: 4.1cm (1in)

*Note Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down

Operating range:

• Precipitation rate: 5 - 26mm/h (0.20 - 1.01in/h)
• Radius: 7.6 - 15.2m (25 - 50ft)
• Radius may be reduced up to 25% with radius reduction screw
• Pressure: 25 - 65psi (1.7 - 4.5bar)
• Flow rate: 3.0 - 36.6l/m (0.76 - 9.63gpm)

Product specifications:

• Model: 5004PC = 100mm pop-up rotor sprinkler with part circle arc adjustment
• Inlet: in (20/27) NPT female bottom threaded inlet
• Reversing full & part-circle adjustment: 40 360
• Standard angle nozzles trajectory: 25
• Low angle nozzles trajectory: 10
• Trade warranty: 5-year
