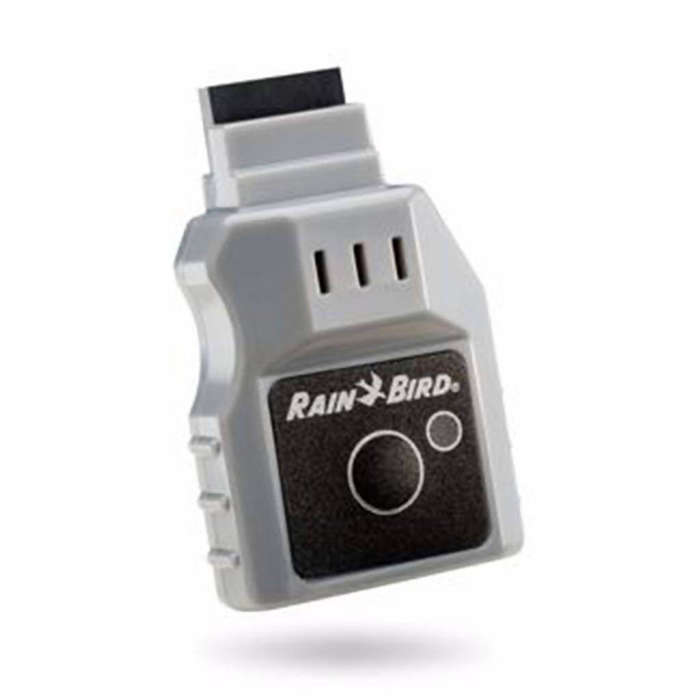

RAIN BIRD LNK WiFi Module for ESP-TM2 & ESP-Me Series Controllers

The RAIN BIRD LNK WiFi Module for ESP-TM2 & ESP-Me Series controllers allows irrigation control from anywhere.

• Upgrade your WiFi-ready controllers (ESP-Me and ESP-TM2) & make them fully accessible & programmable from iOS or Android compatible devices
• Used as an onsite wireless remote control for your irrigation system or an off-site internet-based monitoring & control system - providing real-time system management
• Save up to 50% in water with automatic weather adjustments providing daily run time changes
• Equipped with built-in mobile notifications & a compatible professional app feature for simplified & efficient management

The New Rain Bird LNK WiFi Module allows easy access and control of a Rain Bird irrigation system from anywhere in the world. With the LNK WiFi Module and Rain Birds FREE mobile app, users get access to off-site management, real-time alerts and advanced water management tools via their smartphone or tablet.

Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.

 Dimensions:

• Width: 28.7mm (1.13in)
• Height: 46.4mm (1.83in)
• Depth: 12mm (0.48in)

Operating range:

• Operating temperature: -10C (14F) - 65C (149F)
• Storage temperature: -40C (-40F) - 66C (150F)
• Operating humidity: 95% max @ 10C - 49C (50F - 120F) non-condensing environment

Product specifications:

• Model: LNK WIFI Module = for Rain Bird ESP-TM2 & ESP-ME Series Controllers
• 24VAC (RMS) 50/60Hz; 55mA max
• Supported mobile devices: Apple devices running iOS 8.0 or greater; android devices running OS 4.4 (KitKat) or later
• Wireless frequency bands supported: 2.4GHz only
• Wireless networks supported: 802.11 b/g/n only
• WiFi security modes supported: None, Open, WEP, WPA-TKIP, WPA-AES, WPA2-TKIP, WPA2-AES, WPA2-AES-TKIP
• Communication modes supported: Communication with the module via module Access Point (hotspot); Communication with the module via local area network; Communication with the module via Rain Bird relay server
